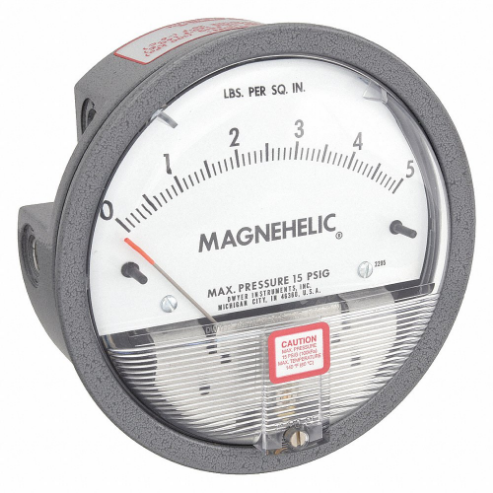

DWYER INSTRUMENTS 2205 Differential Pressure Gauge, 4 1/2 Inch Dial, 0 to 5 PSI, Die Cast Aluminium

Item: AD2NQVModel: 2205Cross Ref: 3T323

7 In Stock

Ships within 2 days via

~~€141.41~~

10.00% off

€127.27 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Differential Pressure Gauge
Accuracy	-2% to +2%
Accuracy Details	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).
Adjustable Set Points	No
Ambient Operating Temperature Range	20°F to 140°F
Application	Clean Rooms, Fan Pressure Indication, Filtration Monitoring, Flow Measurement, Hvac/R, Vacuum Applications
Basic Gauge Case Material	Metal
Bezel Material	Die Cast Aluminum
Bezel Mounting Type	Flush
Blowout Safety Back	Yes
Bolt Circle Dia.	4 1/8"
Calibration Certificate Included	No
Case Color	Gray
Case Construction	Corrosion Resistant
Case Depth	1.687"
Case Dia.	4 3/4"
Case Diameter	4.75"
Case Finish	Die Cast
Case Material	Aluminum
Case Shape	Round
Compatible Process Media	Cleanroom
Connection Size	1/8"
Connection Type	NPT
Cover Material	Acrylic
Dial Face Material	Plastic
Dial Material	Die Cast Aluminum
Dial Size	4"
Differential Gauge Connection Size	1/8"
Differential Pressure Gauge Type	Differential Pressure Gauge
Differential Pressure Range	0 psi to 5 psi
Gauge Nominal Dial Size	4 1/2"
Hazardous Location Rating	Not Rated
Housing Material	Die Cast Aluminum
Includes	Instructions, Three Mounting Adapters With Screws, Two 1/8" Npt Plugs, Two 1/8" Npt To 3/16" Id Rubber Tubing Adapters
Includes Mounting Hardware	Yes
Includes Vent Plug	Yes
Ip/nema Rating	Nema Ip67
Manufacturer Warranty Length	5 yrs.
Maximum Working Static Pressure	80 psig
Mounting Hardware Included	Flange
Mounting Orientation	Upright Only
Mounting Orientation	Vertical
Mounting Type	Flush Mount
Nominal Dial Size	4"
Non-sparking	No
Over-pressure Limit	1.72 Bar
Panel Mount Characteristics	3L Dia Holes On E Dia Bolt Circle
Panel-mountable	Yes
Pointer Characteristics	Red Tipped Pointer Of Heat Treated Aluminum Tubing Is Easy To See
Pointer Material	Aluminum
Pressure Gauge Type	Differential Pressure Gauge
Pressure Range	0 psid to 5 psid
Pressure Range Minor Div.	0.1 psi
Pressure Range Minor Div.	0.10 psi
Process Connection Gender	Female
Process Connection Location	Dual Side Or Back
Process Connection Size	1/8"
Process Connection Type	NPT
Rated Total Pressure	-20" Hg to 15 psig
Rated Total Pressure	-20 in. hg to 15 psi
Removable Bezel	No
Scale Type	Pressure
Sensor Material	Silicone Rubber
Sensor Type	Diaphragm
Series	2000 MAGNEHELIC Series
Temp. Range	+20°F to +140°F

Shipping Info:

Ship weight (kg)	0.7
Ship height (cm)	16.76
Ship length (cm)	15.49
Ship width (cm)	9.65
HS code	9026208000
Country of Origin	US

Product Variants

Model	Accuracy	Rated Total Pressure	Differential Pressure Range	Pressure Range Minor Div.	Scale Type	Sensor Material	Mounting Hardware Included	Accuracy Details	Price
2330	-2% to +2%	-20 in. hg to 15 psi	-	1 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs, +/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm, +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges Throughout Range At 70°F (21.1°C).	€166.09
2310	-2% to +2%	-20 in. hg to 15 psi	-	0.2 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€154.84
2302	-2% to +2%	-20 in. hg to 15 psi	-	0.05 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€154.84
2300-0	-2% to +2%	-20 in. hg to 15 psi	-	0.01 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€154.84
2060	-2% to +2%	-20 in. hg to 15 psi	0 in. wc to 60 in. wc	2 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€131.38
2040	-2% to +2%	-20 in. hg to 15 psi	0 in. wc to 40 in. wc	1 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€141.41
2030	-2% to +2%	-20 in. hg to 15 psi	0 in. wc to 30 in. wc	1 in. wc	Pressure	Silicone Rubber	Flange	+/-2% (-Ha Model +/-1) Of Fs (+/-3% (-Ha +/-1.5%) On-0,-100Pa,-125Pa,-10Mm And +/-4% (-Ha +/-2%) On-00,-60Pa,-6Mm Ranges), Throughout Range At 70°F (21.1°C).	€141.41
