BROWNING TB Series Gripbelt Sheaves With Split Taper Bushings
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1| Style | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1001189 | 3 1/5" | 1/2" to 1 3/4" | Type 2 | 3 2/5" | 3" | 3.7" | P1 | 5/8" | €138.62 | |
| B | 1001247 | 3 2/5" | 1/2" to 1 3/4" | Type 2 | 3 3/5" | 3 1/5" | 3.9" | P1 | 5/8" | €143.32 | |
| C | 1001304 | 3 3/5" | 1/2" to 1 3/4" | Type 2 | 3 4/5" | 3 2/5" | 4.1" | P1 | 5/8" | €147.68 | |
| D | 1001361 | 3 4/5" | 1/2" to 1 3/4" | Solid Type 10 | 4" | 3 3/5" | 4.3" | P1 | 5/8" | €150.18 | |
| E | 1001486 | 4 1/5" | 1/2" to 1 3/4" | Solid Type 10 | - | - | 4.7" | P1 | 5/8" | €201.56 | |
| F | 1001544 | 4 2/5" | 1/2" to 1 3/4" | Solid Type 10 | 4 3/5" | 4 1/5" | 4.9" | P1 | 5/8" | €178.97 | |
| G | 1001668 | 4 4/5" | 1/2" to 1 3/4" | Solid Type 10 | 5" | 4 3/5" | 5.3" | P1 | 5/8" | €188.07 | |
| H | 1001429 | 4" | 1/2" to 1 3/4" | Solid Type 10 | 4 1/5" | 3 4/5" | 4 1/2" | P1 | 5/8" | €156.92 | |
| I | 1001783 | 5 1/5" | 1/2" to 1 3/4" | Solid Type 10 | - | - | 5.7" | P1 | 5/8" | €197.33 | |
| J | 1001841 | 5 2/5" | 1/2" to 1 3/4" | Solid Type 10 | 5 3/5" | 5 1/5" | 5.9" | P1 | 5/8" | €202.06 | |
| K | 1001908 | 5 3/5" | 1/2" to 1 3/4" | Solid Type 10 | 5 4/5" | 5 2/5" | 6.1" | P1 | 5/8" | €206.35 | |
| L | 1001965 | 5 4/5" | 1/2" to 1 3/4" | Type 10 Web | 6" | 5 3/5" | 6.3" | P1 | 5/8" | €212.53 | |
| M | 1001726 | 5" | 1/2" to 1 3/4" | Solid Type 10 | 5 1/5" | 4 4/5" | 5 1/2" | P1 | 5/8" | €193.72 | |

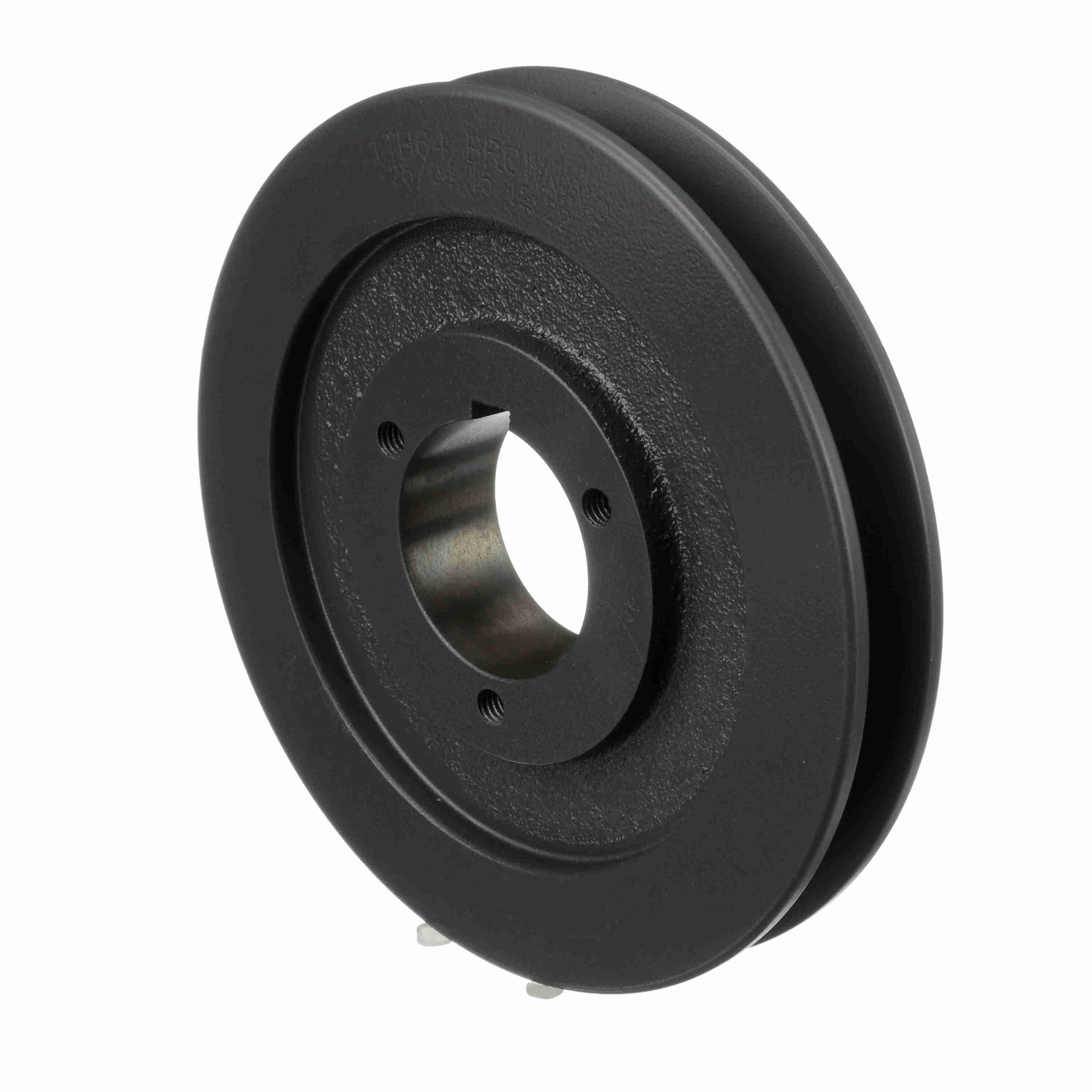

| N | 1002088 | 6 1/5" | 1/2" to 1 3/4" | Type 10 Web | 6 2/5" | - | 6.7" | P1 | 5/8" | €233.96 | |
| O | 1002146 | 6 2/5" | 1/2" to 1 3/4" | Type 10 Web | - | - | 6.9" | P1 | 5/8" | €252.25 | |
| P | 1002203 | 6 3/5" | 1/2" to 1 3/4" | Type 10 Web | 6 4/5" | 6 2/5" | 7.1" | P1 | 5/8" | €261.54 | |
| Q | 1002260 | 6 4/5" | 1/2" to 1 3/4" | Arm Type 16 | 7" | 6 3/5" | 7.3" | P1 | 25/32" | €266.87 | |
| R | 1002021 | 6" | 1/2" to 1 3/4" | Type 10 Web | 6 1/5" | 5 4/5" | 6 1/2" | P1 | 5/8" | €224.88 | |
| S | 1002328 | 7 1/5" | 1/2" to 1 3/4" | - | 7 2/5" | 7" | 7.7" | P1 | 25/32" | €289.08 | |

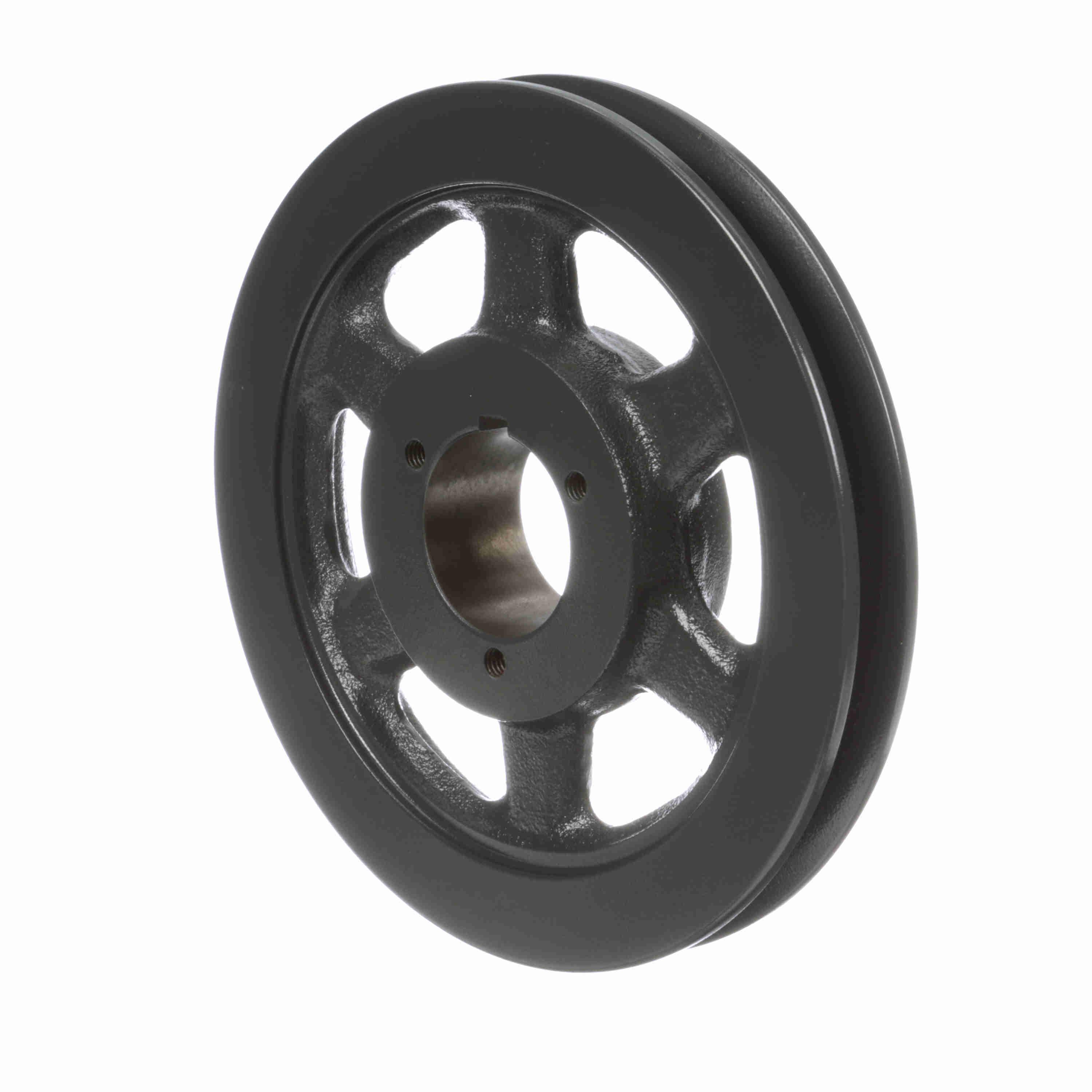

| T | 1002385 | 7 4/5" | 1/2" to 1 3/4" | Arm Type 16 | 8" | 7 3/5" | 8.3" | P1 | 25/32" | €298.14 | |
| U | 1002443 | 8 2/5" | 1/2" to 1 3/4" | Arm Type 16 | 8 3/5" | 8 1/5" | 8.9" | P1 | 25/32" | €316.65 | |
| V | 1002500 | 8 4/5" | 1/2" to 1 3/4" | Arm Type 16 | 9" | 8 3/5" | 9.3" | P1 | 25/32" | €316.55 | |
| W | 1002567 | 9 1/5" | 1/2" to 1 3/4" | Arm Type 16 | 9 2/5" | 9" | 9.7" | P1 | 25/32" | €325.69 | |
| X | 1002625 | 10 4/5" | 1/2" to 1 3/4" | Arm Type 16 | 11" | 10 3/5" | 11.3" | P1 | 25/32" | €279.74 | |

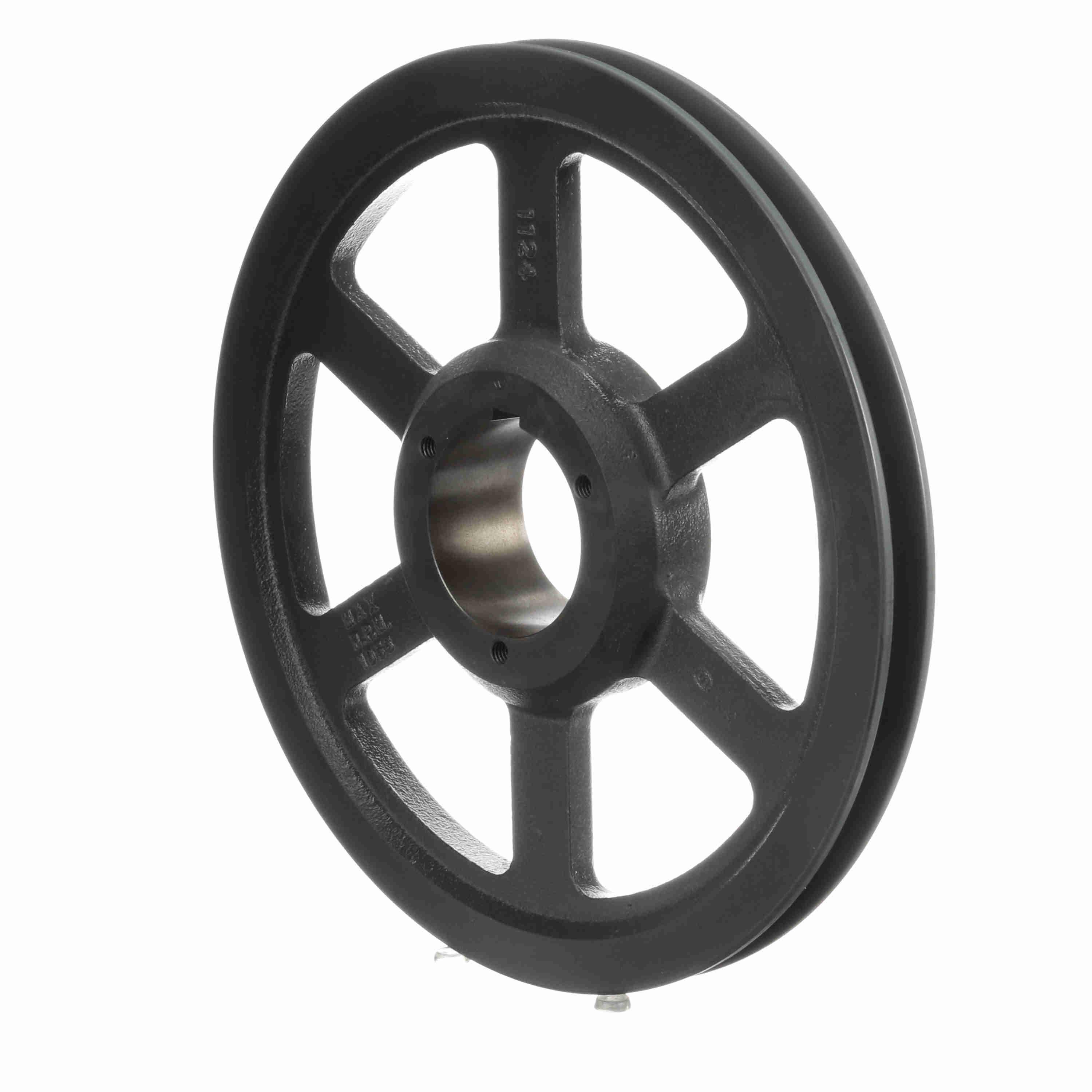

| Y | 1002682 | 12 1/5" | 3/4" to 2 11/16" | Arm Type 16 | 12 2/5" | 12" | 12.7" | Q1 | 1 7/32" | €263.57 | |
| Z | 1002740 | 13 2/5" | 3/4" to 2 11/16" | Arm Type 16 | 13 3/5" | 13 1/5" | 13.9" | Q1 | 1 7/32" | €304.61 | |
| A1 | 1002807 | 15 1/5" | 3/4" to 2 11/16" | Arm Type 16 | 15 2/5" | 15" | 15.7" | Q1 | 1 7/32" | €415.17 | |
| B1 | 1002922 | 18 1/5" | 3/4" to 2 11/16" | Arm Type 16 | - | - | 18.7" | Q1 | 1 7/32" | €551.93 | |
| C1 | 1003045 | 24 4/5" | 3/4" to 2 11/16" | Arm Type 16 | - | - | 25.3" | Q1 | 1 7/32" | €1,184.59 | |
| D1 | 1003102 | 29 4/5" | 3/4" to 2 11/16" | Arm Type 16 | 30" | 29 1/2" | 30.3" | Q1 | 1 7/32" | €2,937.93 |
