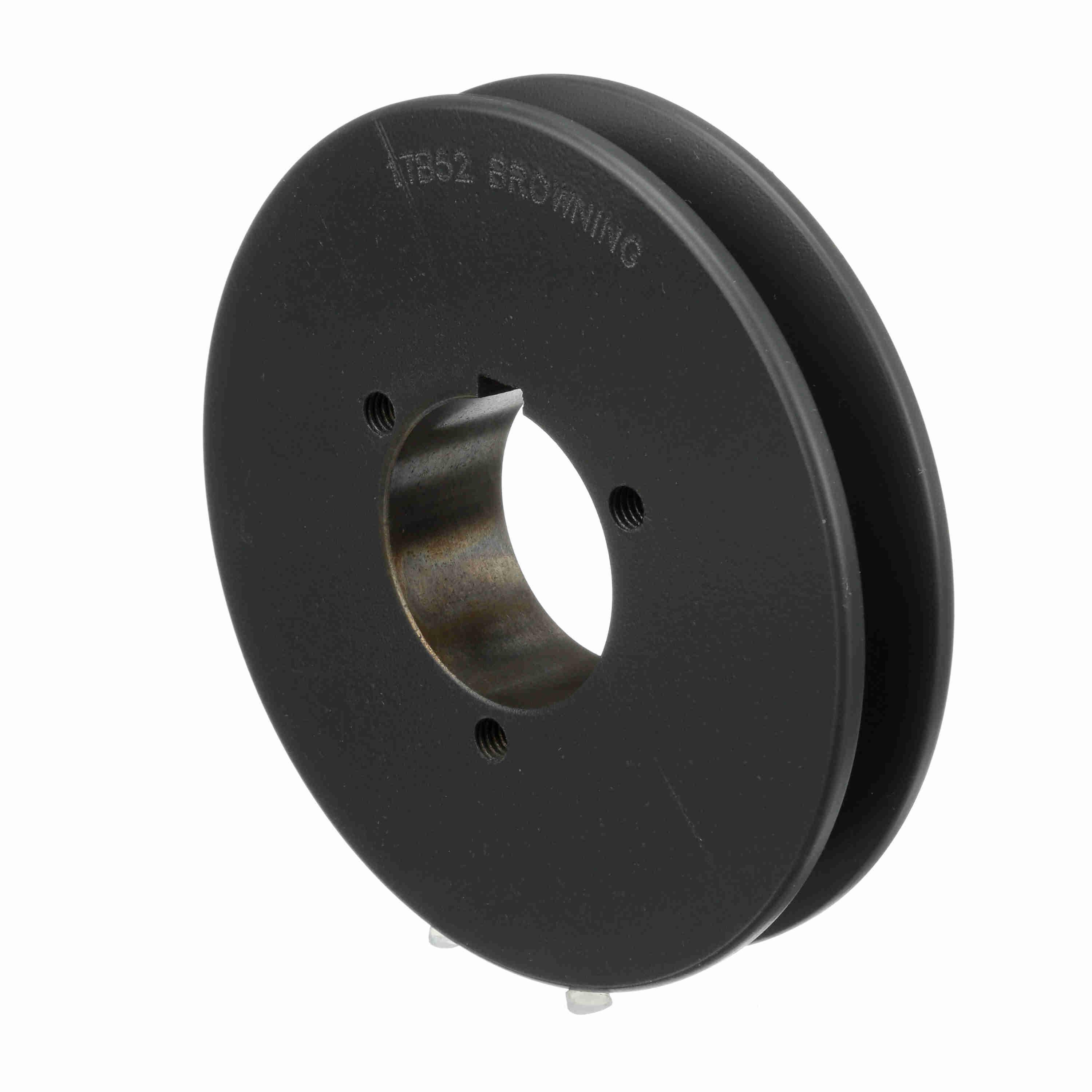

BROWNING 1001726 1TB52 V-Belt Sheave, Multiple, Bushed Bore, 1 Groove, Cast Iron, 5.55 in OD, 1/2 to 1-3/4 in Bore Dia, 5 in A/5-1/2 in B Pitch Dia, P1 Bushing Type
Item: BA3HXFModel: 1001726Cross Ref: 1TB52
7 In Stock
5.55"
Ships within 2 days via
€193.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P1 |
| Face Width | 1" |
| Hub Dia. | 3" |
| Hub Projection | 5/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 5 1/5" |
| Min. Pitch Dia. | 4 4/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 5.55" |
| Overall Length | 2 9/64" |
| Pitch Dia. | 5" |
| Pitch Dia. (b) | 5 1/2" |
| Series | TB Series |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Solid Type 10 |
Shipping Info:
| Ship weight (kg) | 1.96 |
| Ship height (cm) | 14.1 |
| Ship length (cm) | 5.44 |
| Ship width (cm) | 14.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1002021 | 6" | 1/2" to 1 3/4" | Type 10 Web | 6 1/5" | 5 4/5" | 6 1/2" | P1 | 5/8" | €224.88 | |
 |
1002682 | 12 1/5" | 3/4" to 2 11/16" | Arm Type 16 | 12 2/5" | 12" | 12.7" | Q1 | 1 7/32" | €263.57 | |
 |
1003045 | 24 4/5" | 3/4" to 2 11/16" | Arm Type 16 | - | - | 25.3" | Q1 | 1 7/32" | €1,184.59 | |
 |
1002088 | 6 1/5" | 1/2" to 1 3/4" | Type 10 Web | 6 2/5" | - | 6.7" | P1 | 5/8" | €233.96 | |
 |
1001965 | 5 4/5" | 1/2" to 1 3/4" | Type 10 Web | 6" | 5 3/5" | 6.3" | P1 | 5/8" | €212.53 | |
 |
1002922 | 18 1/5" | 3/4" to 2 11/16" | Arm Type 16 | - | - | 18.7" | Q1 | 1 7/32" | €551.93 | |
 |
1002203 | 6 3/5" | 1/2" to 1 3/4" | Type 10 Web | 6 4/5" | 6 2/5" | 7.1" | P1 | 5/8" | €261.54 |
