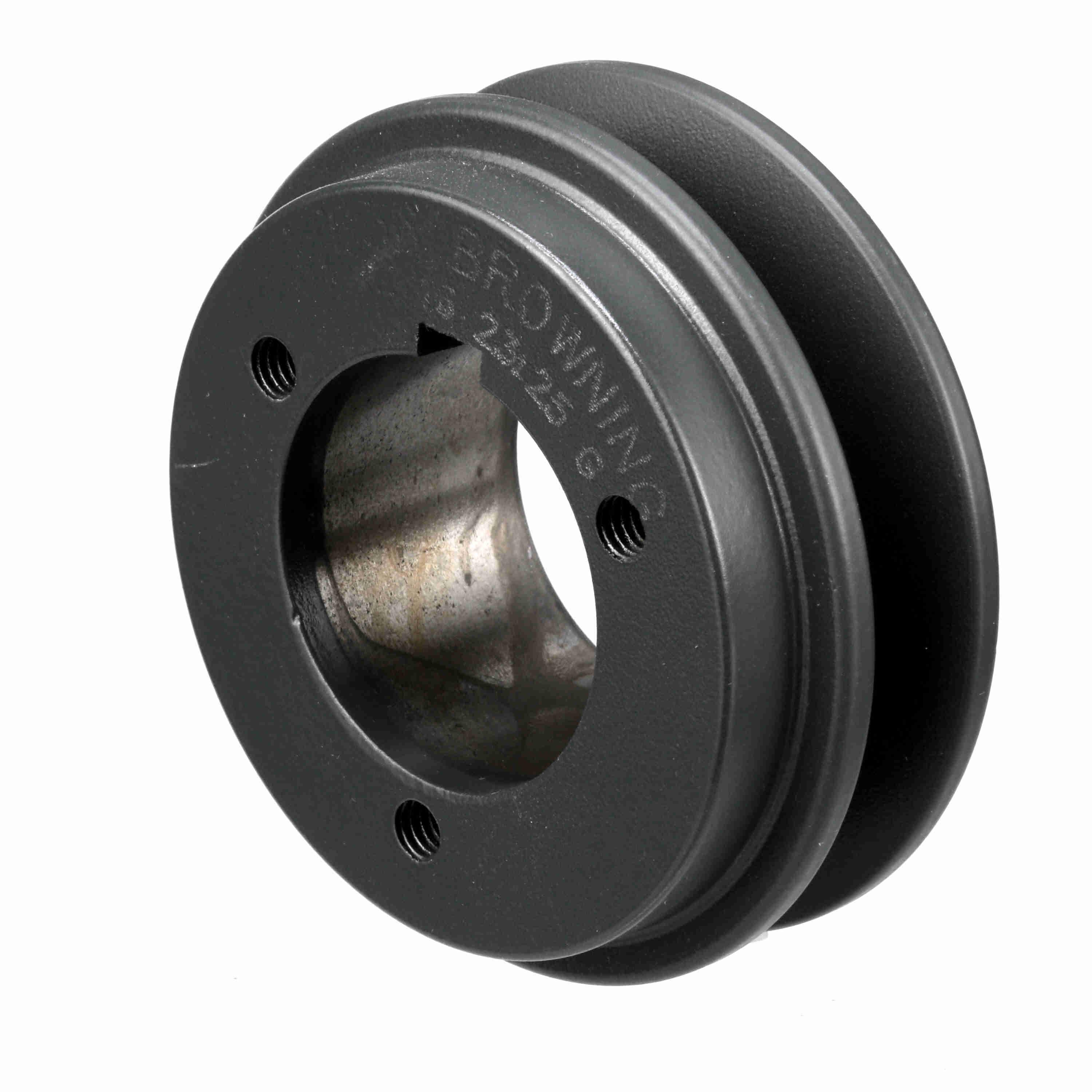

BROWNING 1001247 1TB36 V-Belt Sheave, Multiple, Bushed Bore, 1 Groove, Cast Iron
Item: BA3VHWModel: 1001247Cross Ref: 1TB36
7 In Stock
3.95"
Ships within 2 days via
€143.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P1 |
| Face Width | 1" |
| Hub Dia. | 3" |
| Hub Projection | 5/8" |
| Keyway | Yes |
| Max. Pitch Dia. | 3 3/5" |
| Min. Pitch Dia. | 3 1/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 3.95" |
| Overall Length | 2 17/64" |
| Pitch Dia. (a) | 3 2/5" |
| Pitch Dia. (b) | 3.9" |
| Series | TB Series |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Type 2 |
Shipping Info:
| Ship weight (kg) | 1.08 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 10.67 |
| Ship width (cm) | 10.41 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1002021 | 6.55" | 1/2" to 1 3/4" | 2 9/64" | Type 10 Web | Split Taper | Cast Iron | 1" | €224.88 | |
 |
1002682 | 12 3/4" | 3/4" to 2 11/16" | 2 53/64" | Arm Type 16 | Split Taper | Cast Iron | 1" | €263.57 | |
 |
1003045 | 25.35" | 3/4" to 2 11/16" | 2 53/64" | Arm Type 16 | Split Taper | Cast Iron | 1" | €1,184.59 | |
 |
1002989 | 20.35" | 3/4" to 2 11/16" | 2 53/64" | Arm Type 16 | Split Taper | Cast Iron | 1" | €718.42 | |
 |
1002088 | 6 3/4" | 1/2" to 1 3/4" | - | Type 10 Web | Split Taper | Cast Iron | - | €233.96 | |
 |
1001965 | 6.35" | 1/2" to 1 3/4" | 2 9/64" | Type 10 Web | Split Taper | Cast Iron | 1" | €212.53 | |
|
1002864 | 16.35" | 3/4" to 2 11/16" | 2 53/64" | Arm Type 16 | Split Taper | Cast Iron | 1" | €382.47 |
