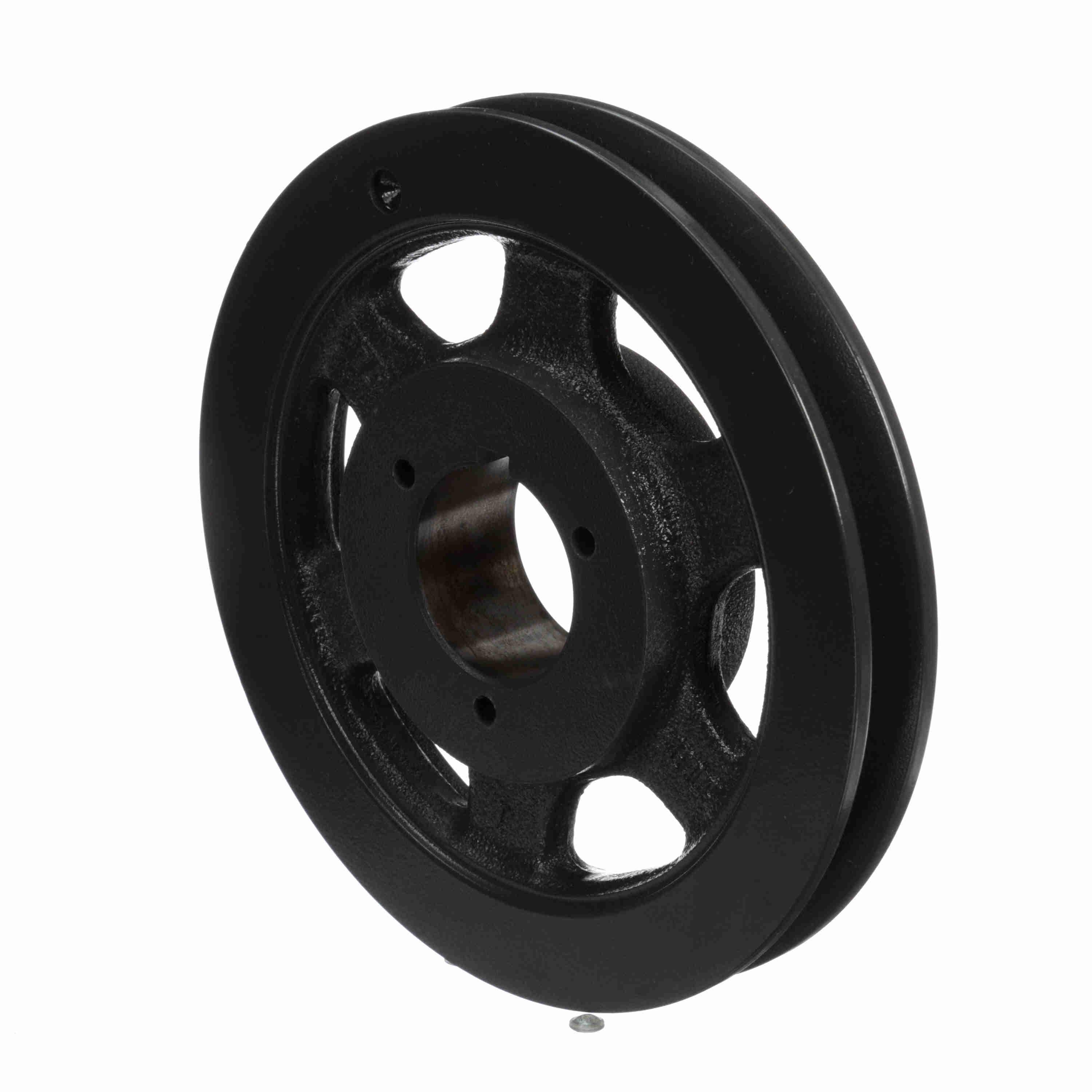

BROWNING 1002328 1TB74 V-Belt Sheave, Multiple, Bushed Bore, 1 Groove, Cast Iron
Item: BA2QKVModel: 1002328Cross Ref: 1TB74
7 In Stock
7 3/4"
Ships within 2 days via
€289.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P1 |
| Face Width | 1" |
| Hub Dia. | 3" |
| Hub Projection | 25/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7 2/5" |
| Min. Pitch Dia. | 7" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 7 3/4" |
| Overall Length | 2 9/64" |
| Pitch Dia. (a) | 7 1/5" |
| Pitch Dia. (b) | 7.7" |
| Series | TB Series |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Weight | 3.334 Kg |
Shipping Info:
| Ship weight (kg) | 3.38 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 5.44 |
| Ship width (cm) | 19.69 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1002021 | 6.55" | 1/2" to 1 3/4" | 2 9/64" | Type 10 Web | Split Taper | Cast Iron | 1" | €224.88 | |
 |

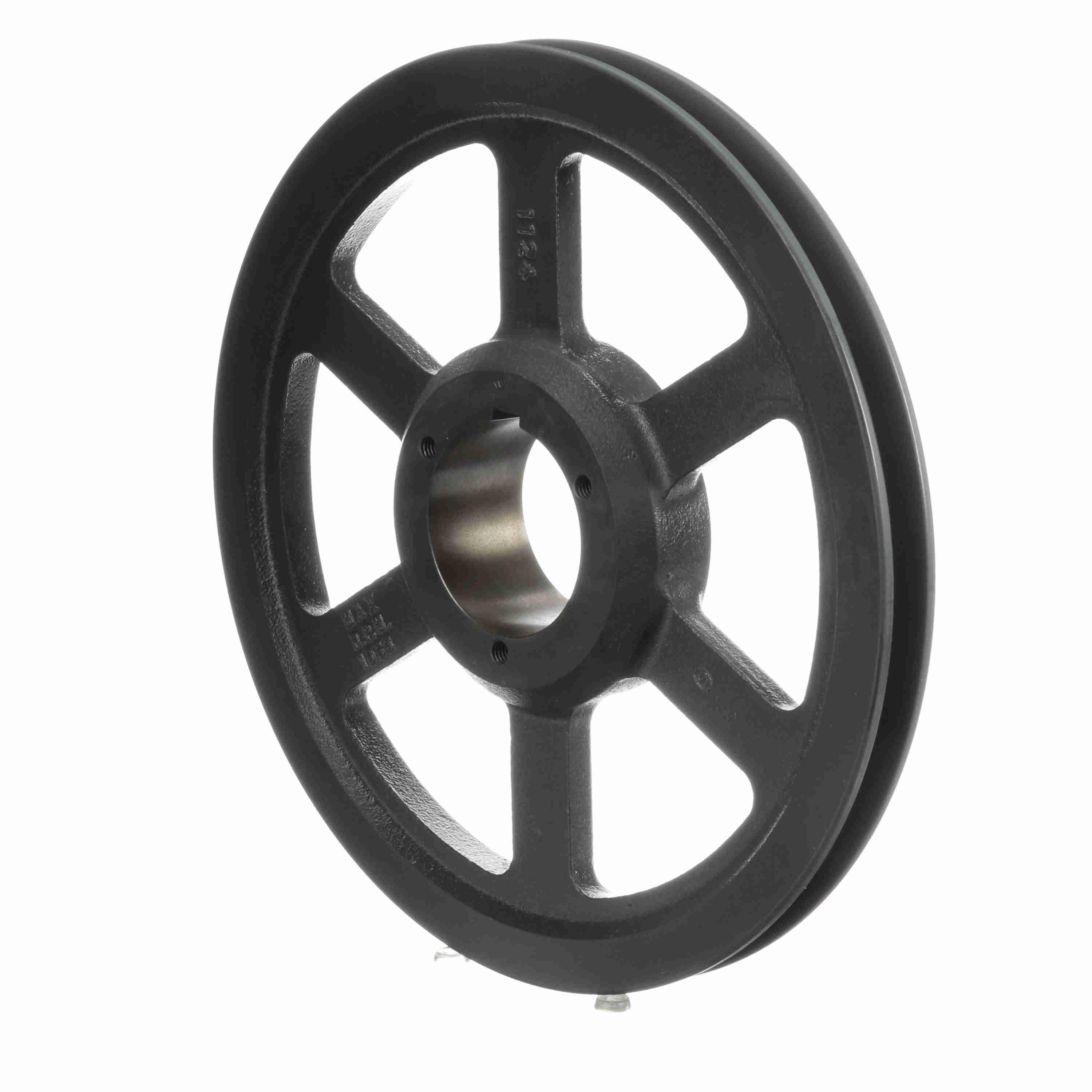

1002682 | 12 3/4" | 3/4" to 2 11/16" | 2 53/64" | Arm Type 16 | Split Taper | Cast Iron | 1" | €263.57 | |
 |

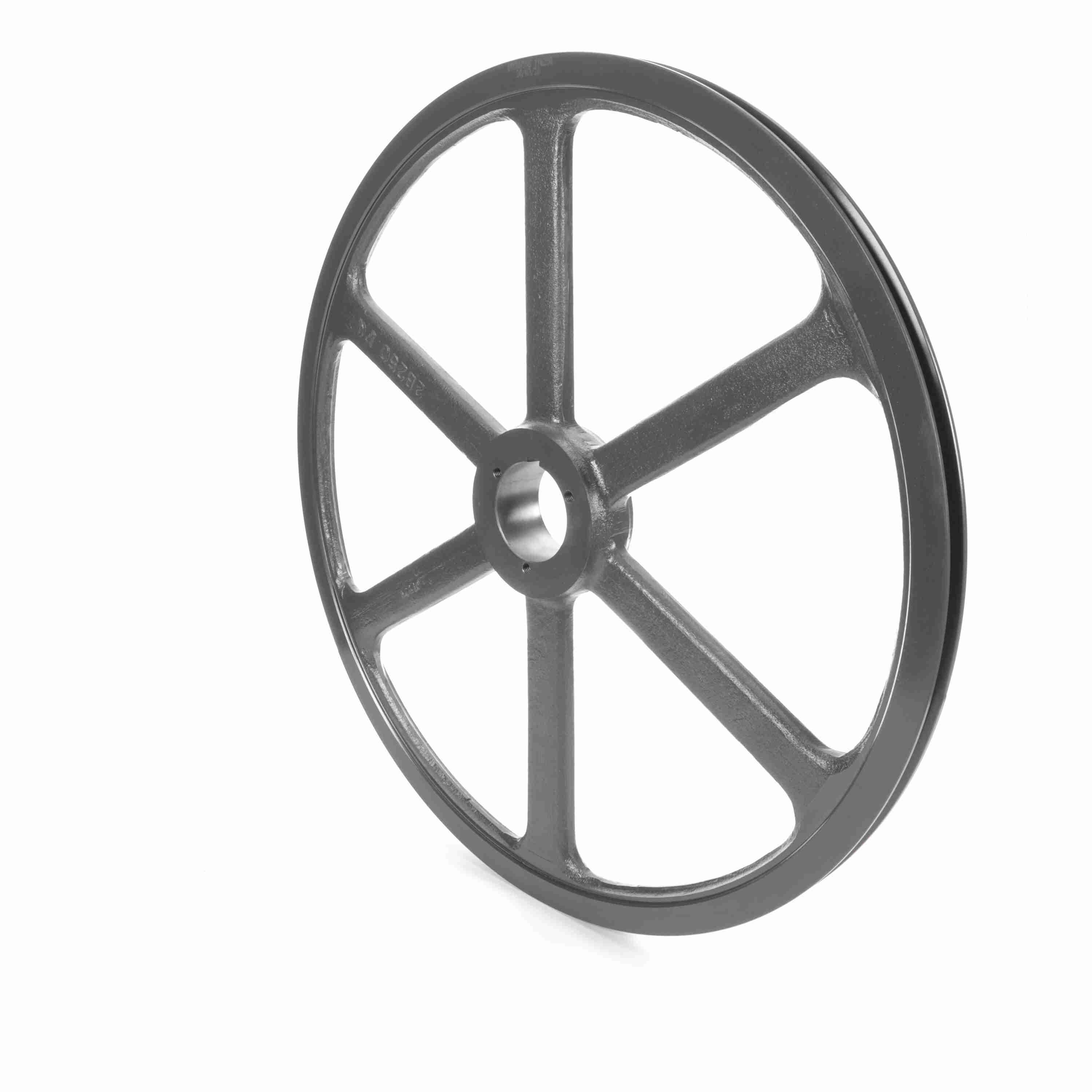

1003045 | 25.35" | 3/4" to 2 11/16" | 2 53/64" | Arm Type 16 | Split Taper | Cast Iron | 1" | €1,184.59 | |
 |

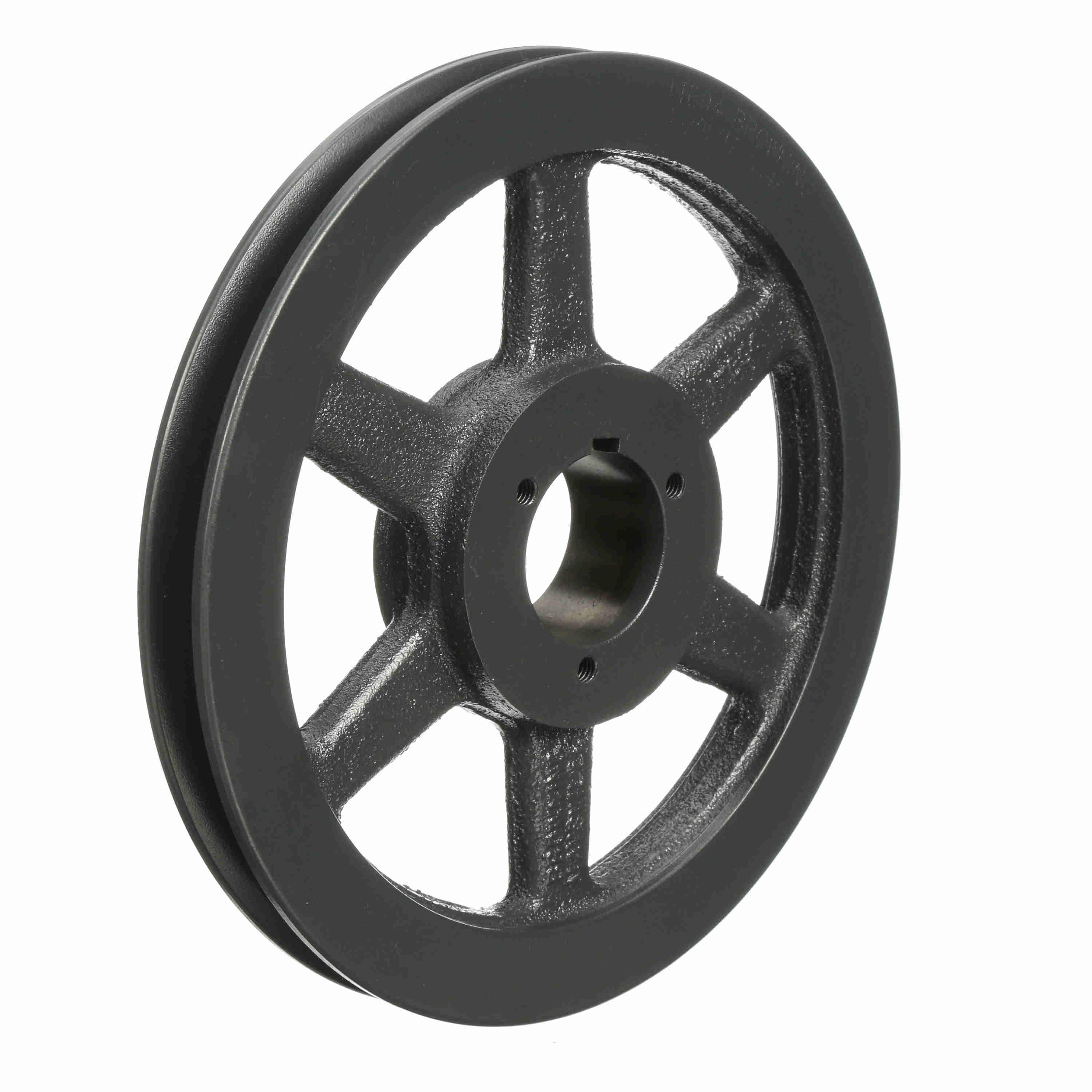

1002989 | 20.35" | 3/4" to 2 11/16" | 2 53/64" | Arm Type 16 | Split Taper | Cast Iron | 1" | €718.42 | |
 |
1002088 | 6 3/4" | 1/2" to 1 3/4" | - | Type 10 Web | Split Taper | Cast Iron | - | €233.96 | |
 |

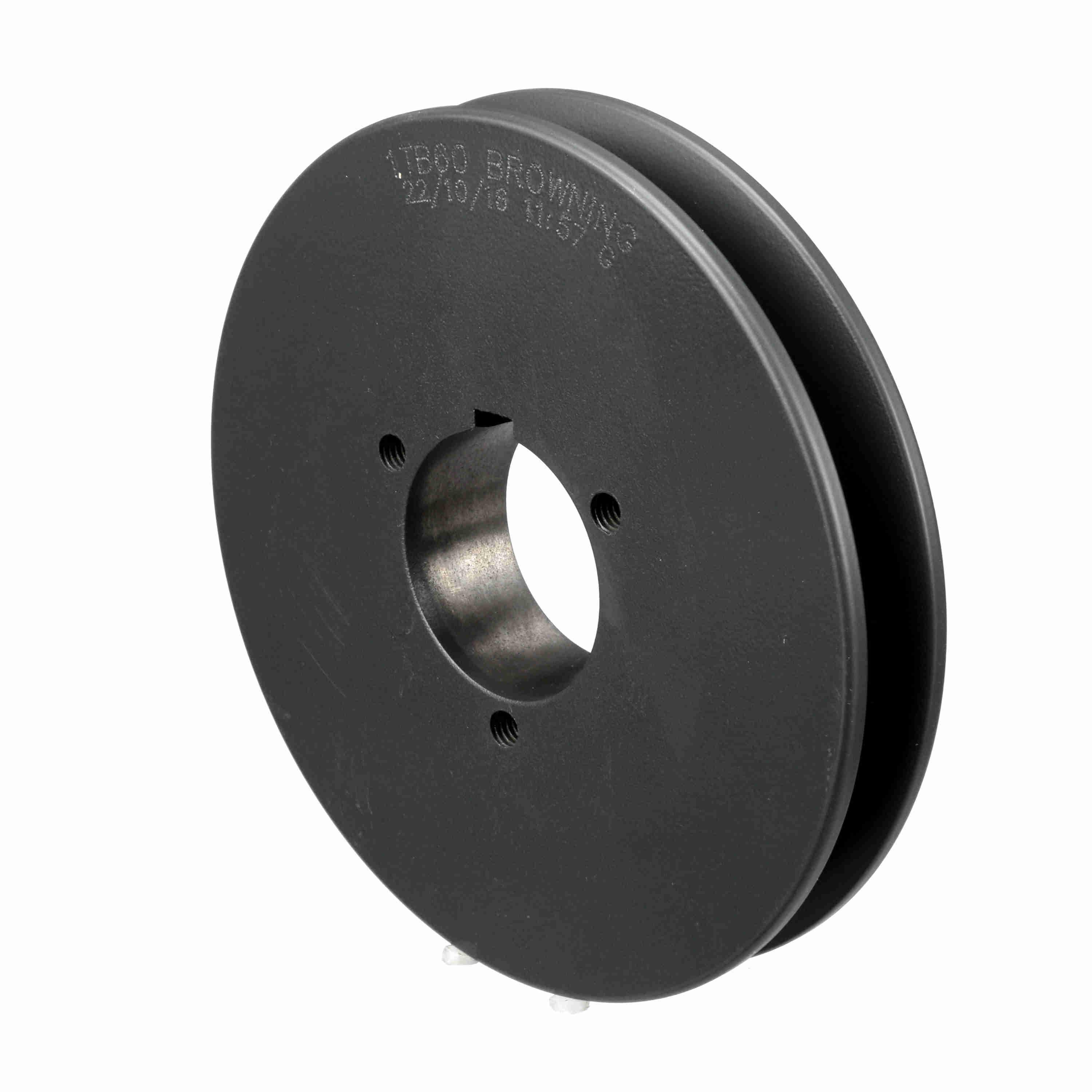

1001965 | 6.35" | 1/2" to 1 3/4" | 2 9/64" | Type 10 Web | Split Taper | Cast Iron | 1" | €212.53 | |
|
1002864 | 16.35" | 3/4" to 2 11/16" | 2 53/64" | Arm Type 16 | Split Taper | Cast Iron | 1" | €382.47 |
