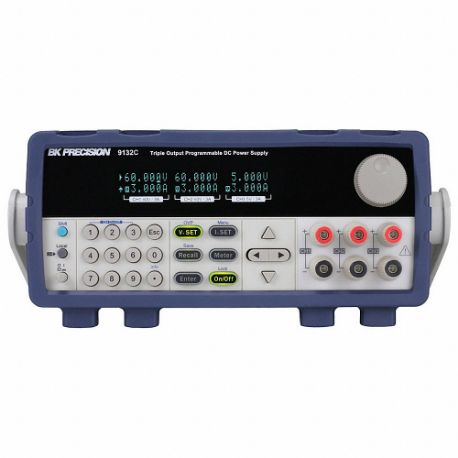

B&K PRECISION 9132C Power Supply, 0 To 60V, 0 To 5V, 0 To 3 A, Digital
Get it by Wednesday, Dec 17
10.00% off
€2,264.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Power Supply |
| Calibration Certificate | NI Certified |
| Calibration Certificate Type | NIST |
| Current Output 1 - Maximum | 3A |
| Current Output 1 - Minimum | 0A |
| Current Output 2 - Maximum | 3A |
| Current Output 3 - Maximum | 3A |
| Current Output 3 - Minimum | 0A |
| Depth | 17 13/25" |
| Display | Vacuum Fluorescent Display |
| Height | 3.47" |
| Includes | Power Cord |
| Input Frequency | 47-63 Hz |
| Input Voltage | 110/220V AC |
| Interface | RS-232, USB |
| Line Regulation | Less Than Or Equal To 0.01% +3 mV, Less Than Or Equal To 0.1% +3 mA |
| Line Regulation Current | 0.2% +3 mA |
| Line Regulation Voltage | 3 mV |
| Line Volts Regulation | Less Than Or Equal To 0.01% + 3 mV |
| Load Regulation | Less Than Or Equal To 0.1% +3 mA, Less Than Or Equal To 0.01% +3 mV |
| Load Regulation Current | 0.1% + 3 mA |
| Load Regulation Voltage | 0.01% +3 mV |
| Manufacturers Warranty Length | 3 yrs. |
| Meter Type | Digital |
| Minimum Voltage Output 1 | 0V DC |
| Number Of Display Digits | 4 |
| Number Of Displays | 2 |
| Output Amps | 0-3A |
| Output Dc Voltage | 0-60/0-5V |
| Overall Depth | 17.52" |
| Overall Height | 3.47" |
| Overall Width | 8.45" |
| Protection | Keylock Function, OTP, OVP |
| Ripple Voltage Regulation | 1M Vrms |
| Ripple Volts Regulation | Less Than Or Equal To 1 mVrms |
| Type | Programmable |
| Voltage Output 1 - Maximum | 60V DC |
| Voltage Output 2 - Maximum | 60V DC |
| Voltage Output 3 - Maximum | 5V DC |
| Voltage Output 3 - Min. | 0V DC |
| Width | 8.45" |
Shipping Info:
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 8.81 |
| Ship length (cm) | 44.5 |
| Ship width (cm) | 21.46 |
| Country of Origin | CN |
Product Variants
| Product | Model | Type | Output Amps | Calibration Certificate | Depth | Height | Output Dc Voltage | Input Frequency | Display | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1900B | Programmable, Single Output | 0-60A | No | 10 4/5" | 3 1/2" | 1-16V | - | - | €1,138.63 | |
|
1901B | Programmable, Single Output | 0-30A | No | 10 4/5" | 3 1/2" | 1-32V | - | - | €1,138.63 | |
 |
1902B | Programmable, Single Output | 0-15A | No | 10 4/5" | 3 1/2" | 1-60V | - | - | €1,073.65 | |
 |
9240-GPIB | Multi-Range DC Power Supply | 8A | Yes | 13" | 3 1/2" | 32V | 47-63 Hz | - | €1,991.13 | |
 |
9242-GPIB | Multi-Range DC Power Supply | 10A | Yes | 13" | - | 60V | 47-63 Hz | - | €2,339.21 | |
|
9241-GPIB | Multi-Range DC Power Supply | 4A | Yes | 13" | 3 1/2" | 60V | 47-63 Hz | - | €1,994.20 | |
 |
9130C | Programmable | 0-3A | NI Certified | 13 24/25" | 3.47" | 0-30/0-5V | 47-63 Hz | Vacuum Fluorescent Display | €1,853.26 |
