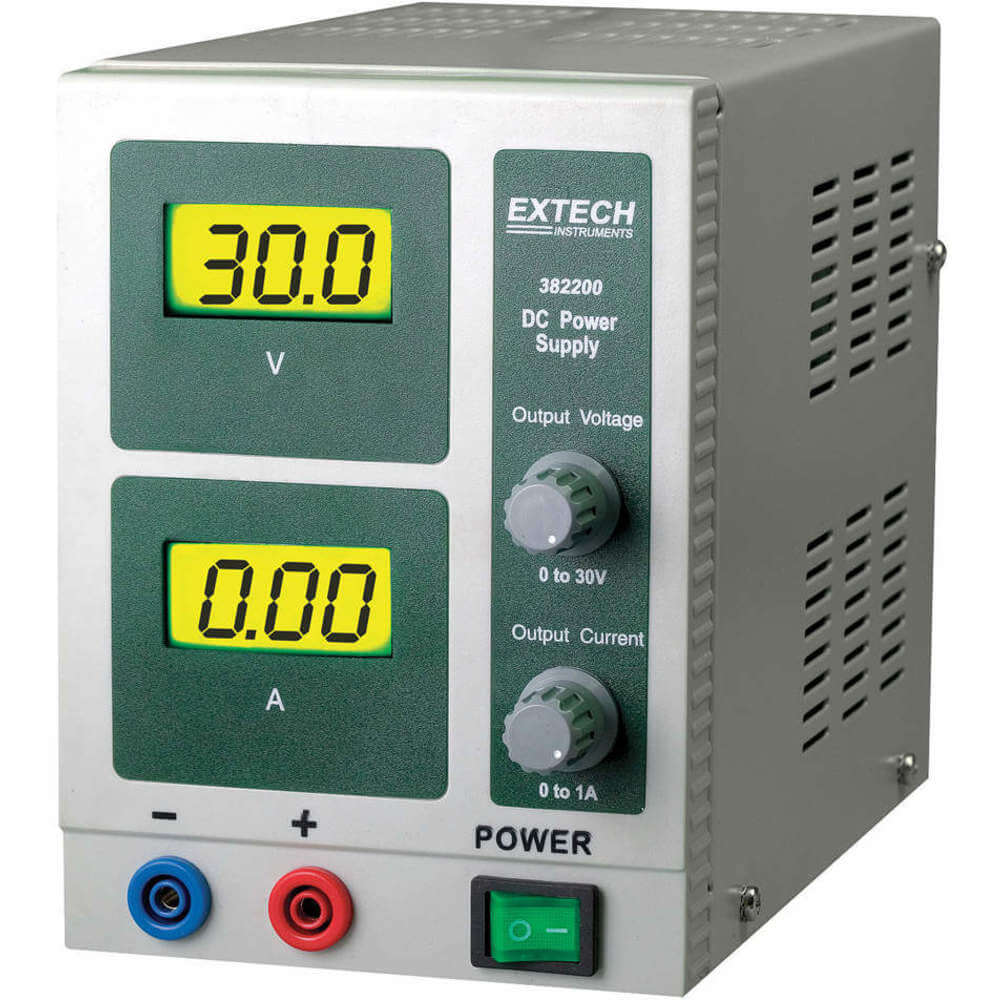

EXTECH 382200 Digital Single Output Dc Power Supply
Item: AF2PZDModel: 382200Cross Ref: 6XAA5
7 In Stock
Ships within 2 days via
10.00% off
€286.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DC Power Supply |
| Calibration Certificate | No |
| Calibration Certificate Type | Not Certified |
| Current Output Max. | 1A |
| Digital Display Screen Type | LCD |
| Dimensions | 4.25" x 9.4" x 6" |
| Includes | Ac Power Cord |
| Input Voltage - Maximum | 230V |
| Input Voltage - Minimum | 115V |
| Line Regulation | Less Than0.2% + 3mA |
| Line Regulation Current | Less Than 0.2%, +3 mA |
| Line Regulation Voltage | Less Than 0.01% + 3 mV |
| Line Volts Regulation | 0.1% + 3mV |
| Load Regulation | Less Than0.01% + 2mV/ Less Than0.2% + 3mA |
| Load Regulation Current | Less than 0.2% + 3 Ma |
| Load Regulation Voltage | Less Than 0.01% +2 mV |
| Manufacturers Warranty Length | 2 yrs. |
| Meter Type | Dual LCD |
| No. Of Display Digits | 3 |
| Number Of Displays | 2 |
| Output Amps | 0-1A |
| Output Dc Voltage | 0-30V DC |
| Output Volts (dc) | 0 to 30 |
| Overall Depth | 6" |
| Overall Height | 4 1/4" |
| Overall Width | 9 2/5" |
| Ripple Voltage Regulation | Less Than 0.5 Mv |
| Ripple Volts Regulation | 0.5 mV |
| Ripple Volts Regulation | 0.5mV |
| Voltage Output Max. | 30V DC |
Shipping Info:
| Ship weight (kg) | 3.2 |
| Ship height (cm) | 20.07 |
| Ship length (cm) | 28.19 |
| Ship width (cm) | 16.26 |
| HS code | 8504409580 |
| Country of Origin | CN |
Product Variants
| Product | Model | Output Amps | Output Dc Voltage | Calibration Certificate | Price | |
|---|---|---|---|---|---|---|
 |

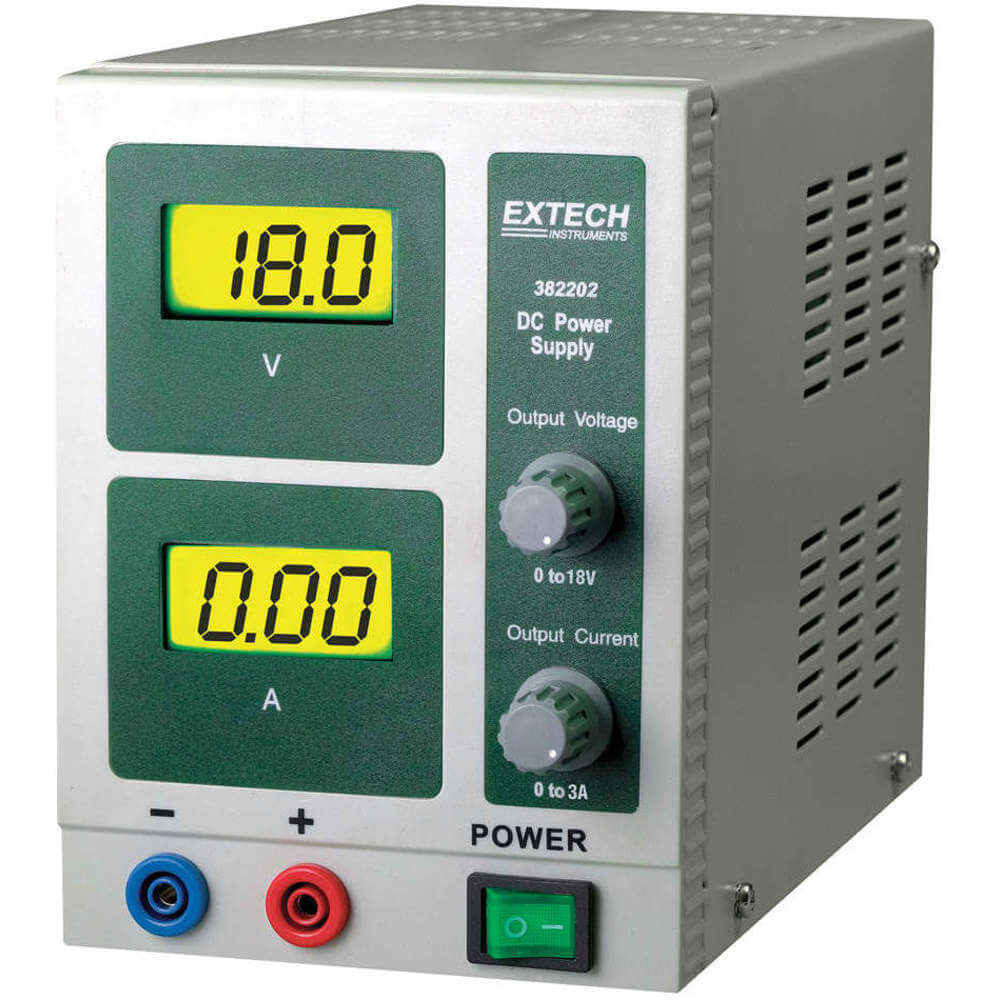

382202 | 0-3A | 0-18V DC | No | €349.06 |
