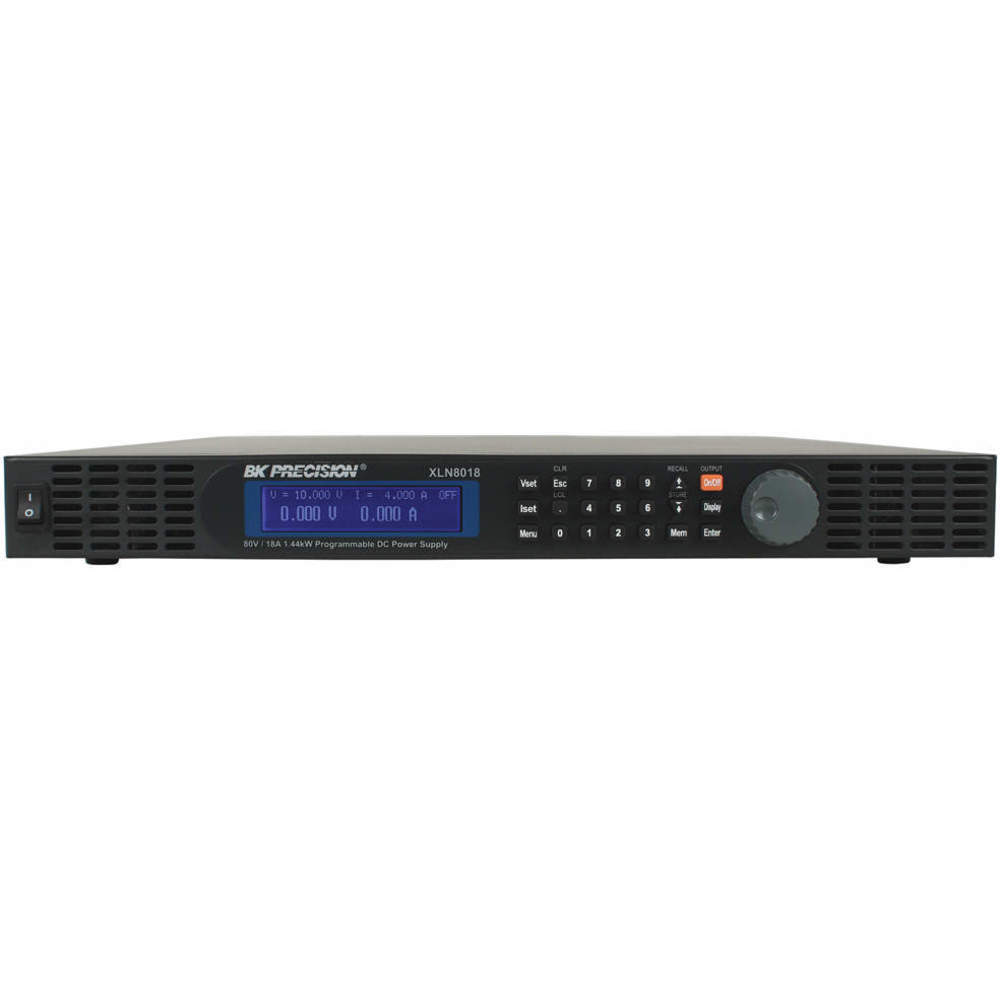

B&K PRECISION XLN8018 Dc Power Supply 0-80v 0-18a Usb Rs485
Get it by Friday, Dec 19
10.00% off
€3,017.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Power Supply |
| Calibration Certificate | Yes |
| Calibration Certificate Type | NIST |
| Current Limits | 0% to 100% |
| Current Output Max. | 18A |
| Digital Display Screen Type | VFD |
| Dimensions | 1.72" x 16.5" x 17" |
| Display | Vacuum Fluorescent Display |
| Includes | Ac Power Cord, Rackmount Kit, Terminal Blocks |
| Input Frequency | 47-63 Hz |
| Input Voltage - Maximum | 240V AC |
| Input Voltage - Minimum | 100V AC |
| Interface | Rs-485, Usb |
| Line Regulation | Less Than Or Equal To 4 mA |
| Line Regulation Current | 4 mA |
| Line Regulation Voltage | 8 mV |
| Line Volts Regulation | Less Than Or Equal To 8 mV |
| Load Regulation | Less Than Or Equal To 10 mV |
| Load Regulation Current | 6.5 mA |
| Load Regulation Voltage | 10 mV |
| Manufacturers Warranty Length | 3 yrs. |
| Meter Type | Digital |
| No. Of Display Digits | 4 |
| Output Amps | 0-18A |
| Output Volts (dc) | 0-80 V |
| Overall Depth | 17" |
| Overall Height | 1 18/25" |
| Overall Width | 16 1/2" |
| Power Output Max. | 1440 W |
| Protection | OVP, OCP, OPP And Key Lock Function |
| Ripple Voltage Regulation | 7 Mvrms, 80 Mvpp |
| Ripple Volts Regulation | Less Than Or Equal To 7 mVrms/ Less Than Or Equal To 80 mVpp |
| Voltage Output - Minimum | 0V |
| Voltage Output Max. | 80V |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 58.42 |
| Ship width (cm) | 58.42 |
| HS code | 8504409540 |
| Country of Origin | TW |
Product Variants
| Product | Model | Output Amps | Load Regulation | Calibration Certificate | Display | Input Frequency | Line Regulation | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
XLN3640 | 0-40A | Less Than Or Equal To 8 mV | Yes | Vacuum Fluorescent Display | 47-63 Hz | Less Than Or Equal To 4 mA | €3,244.12 | |
|
XLN3640-GL | 0-40A | Less Than Or Equal To 8 mV | Yes | Vacuum Fluorescent Display | 47-63 Hz | Less Than Or Equal To 4 mA | €3,883.14 | |
 |
XLN6024 | 0-24A | Less Than Or Equal To 8 mV | Yes | Vacuum Fluorescent Display | 47-63 Hz | Less Than Or Equal To 4 mA | €3,337.04 | |
|
XLN6024-GL | 0-24A | Less Than Or Equal To 8 mV | - | Vacuum Fluorescent Display | 47-63 Hz | Less Than Or Equal To 4 mA | €3,890.31 | |
|
XLN8018-GL | 0-18A | Less Than Or Equal To 10 mV | Yes | Vacuum Fluorescent Display | 47-63 Hz | Less Than Or Equal To 4 mA | €3,854.51 | |
 |

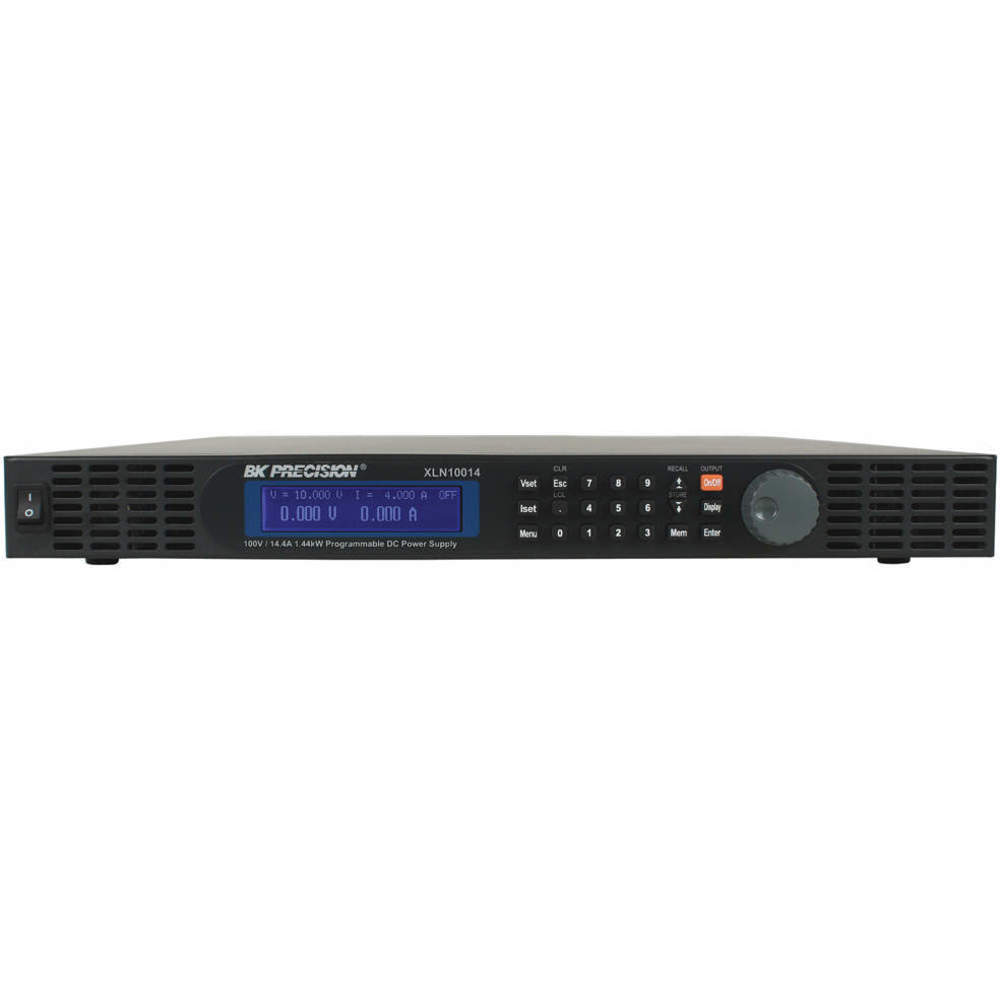

XLN10014 | 0-14.4A | Less Than Or Equal To 12 mV | Yes | Vacuum Fluorescent Display | 47-63 Hz | Less Than Or Equal To 4 mA | €3,263.14 | |
|
XLN10014-GL | 0-14.4A | Less Than Or Equal To 12 mV | Yes | Vacuum Fluorescent Display | 47-63 Hz | Less Than Or Equal To 4 mA | €3,831.87 |
