B&K PRECISION 9201B Bench Power Supply, 60V, 10 A, 110/220 VAC +/- 10% Input Volt, Digital
Get it by Friday, Aug 14
13.00% off
€860.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Power Supply |
| Calibration Certificate | NI Certified |
| Calibration Certificate Type | NIST |
| Depth | 13 24/25" |
| Digital Display Screen Type | VFD |
| Dimensions | 3.47" x 8.45" x 13.96" |
| Height | 3.47" |
| Included | AC Power Cord |
| Input Frequency | 47-63 Hz |
| Input Voltage | 110/220V AC |
| Interface | RS-232, USB |
| Line Regulation | Less Than Or Equal To 0.01% +5 mV, Less Than Or Equal To 0.05% +4 mA |
| Line Regulation Amps | 0.05%, +4 mA |
| Line Regulation Voltage | 5 mV |
| Line Voltage Regulation | Less Than Or Equal To 0.01% + 8 mV |
| Load Regulation | Less Than Or Equal To 0.1% +6 mA, Less Than Or Equal To 0.01% +8 mV |
| Load Regulation Amps | 0.1% + 6 mA |
| Load Regulation Voltage | 0.01% +8 mV |
| Max. Input Voltage | 220V AC |
| Max. Output Amps | 10A |
| Max. Power Output | 200 W |
| Max. Voltage Output | 60V |
| Meter Type | Digital |
| Min. Input Voltage | 110V AC |
| Min. Output Amps | 0A |
| Min. Voltage Output | 0V |
| No. Of Display Digits | 5 |
| Output Amps | 10A |
| Output Dc Voltage | 60V |
| Overall Depth | 13.96" |
| Overall Height | 3.47" |
| Overall Width | 8.45" |
| Protection | Keylock Function, OPP, OTP, OVP |
| Ripple Voltage Regulation | 8 Mv Pp |
| Type | Programmable |
| Width | 8.45" |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 8.81 |
| Ship length (cm) | 35.46 |
| Ship width (cm) | 21.46 |
| Country of Origin | CN |
Product Variants
| Product | Model | Output Amps | Max. Voltage Output | Overall Depth | Dimensions | Ripple Voltage Regulation | Max. Output Amps | Load Regulation Voltage | Load Regulation Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

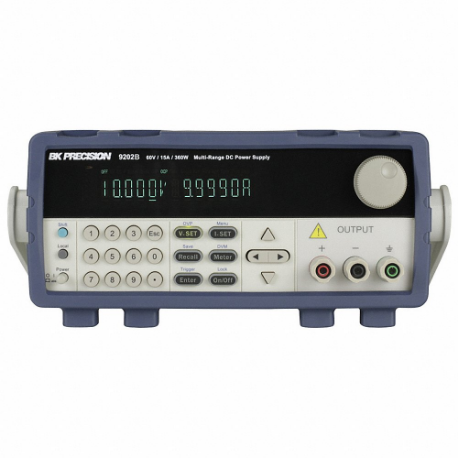

9202B | 15A | 60V | 13.96" | 3.47" x 8.45" x 13.96" | 15 Mvpp | 15A | 0.01% +8 mV | 0.1% + 6 mA | €1,266.61 | |
 |
9205B | 25A | 60V | 17.52" | 3.47" x 8.45" x 17.52" | 20 Mvpp | 25A | 0.01% +15 mV | 0.1% + 10 mA | €1,977.69 | |
 |

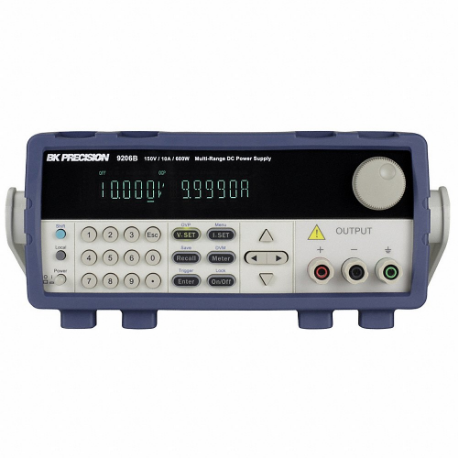

9206B | 10A | 150V | 17.52" | 3.47" x 8.45" x 17.52" | 50 Mvpp | 10A | 0.01% +15 mV | 0.1% + 10 mA | €2,227.67 |
