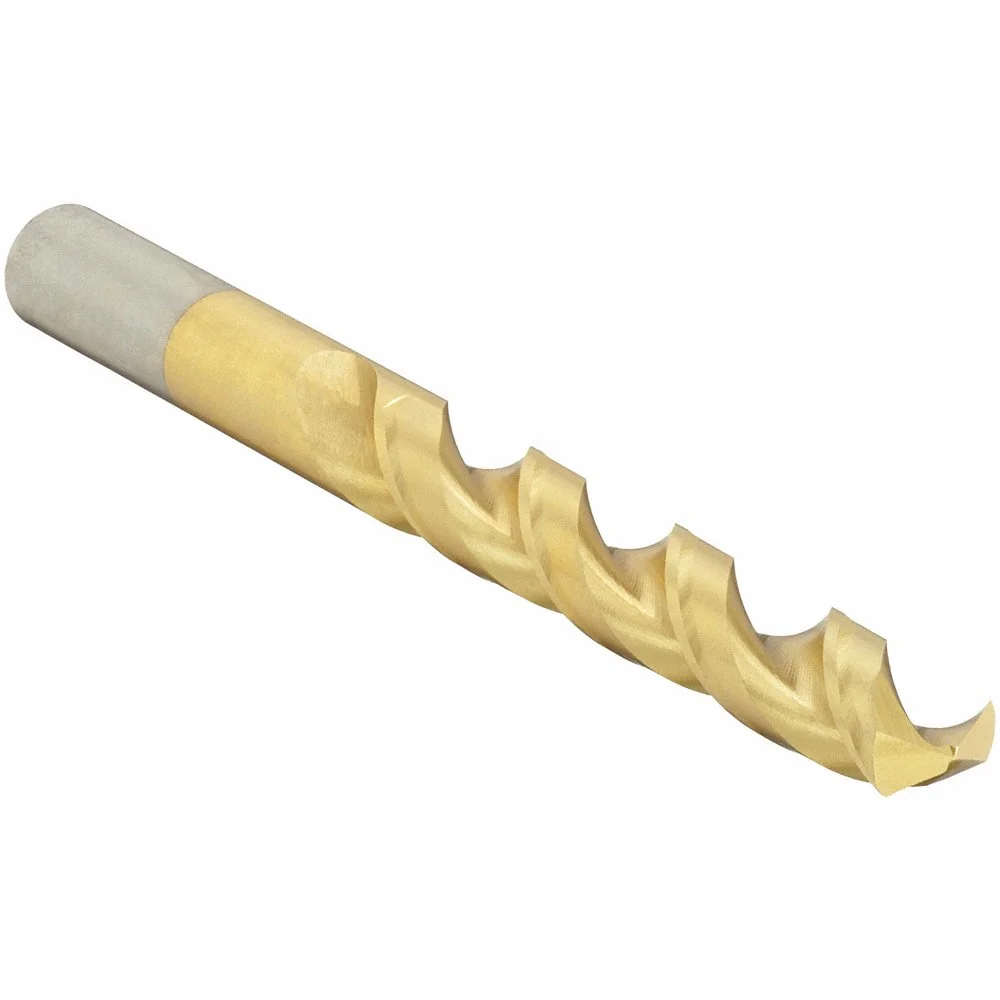

WESTWARD 6PRZ2 Parabolic Jobber Drill Bit High Speed Steel Tin 8.0mm
Item: AF2AZHModel: 6PRZ2
7 In Stock
Ships within 2 days via
10.00% off
€24.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Parabolic Jobber Drill Bit |
| Aircraft Drill | No |
| Application | Drilling Deep Holes |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.315 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Metric |
| Drill Bit Dimension Type | Metric |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 8 mm |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Finish | Tin Coat |
| Finish - Machining | Tin |
| Flute Length | 75 mm |
| Flute Type | Parabolic |
| Grade | Heavy Duty |
| Helix Angle | +35° to +45° |
| List Number | Westward |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 2 13/64" |
| No. Of Pieces | 1 |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 117 mm |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Aluminum And Non Ferrous Material, Cast Iron, Steel |
| Primary Material Application Iso Code | K, N, P |
| Shank Dia. | 0.315" |
| Shank Length | 42 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 0.76 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Model | Decimal Equivalent | Shank Dia. | Overall Length | Flute Length | Drill Bit Size | Max. Drilling Depth | Grade | Helix Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6PRV1 | 0.234 | 0.234" | 3 7/8" | 2 5/8" | A | 2 5/8" | - | - | €4.89 | |
| 6PRV3 | 0.242 | 0.242" | 4" | 2 3/4" | C | - | - | - | €5.41 | |
| 6PRV4 | 0.246 | 0.246" | 4" | 2 3/4" | D | 2 3/4" | - | - | €5.41 | |
| 6PRV6 | 0.261 | 0.261" | 4 1/8" | 2 7/8" | G | - | - | - | €5.55 | |
| 6PRV7 | 0.266 | 0.266" | 4 1/8" | 2 7/8" | H | 2 7/8" | - | - | €6.80 | |
| 6PRV8 | 0.272 | 0.272" | 4 1/8" | 2 7/8" | I | - | - | - | €6.80 | |
| 6PRV9 | 0.277 | 0.277" | 4 1/8" | 2 7/8" | J | - | - | - | €6.80 |
