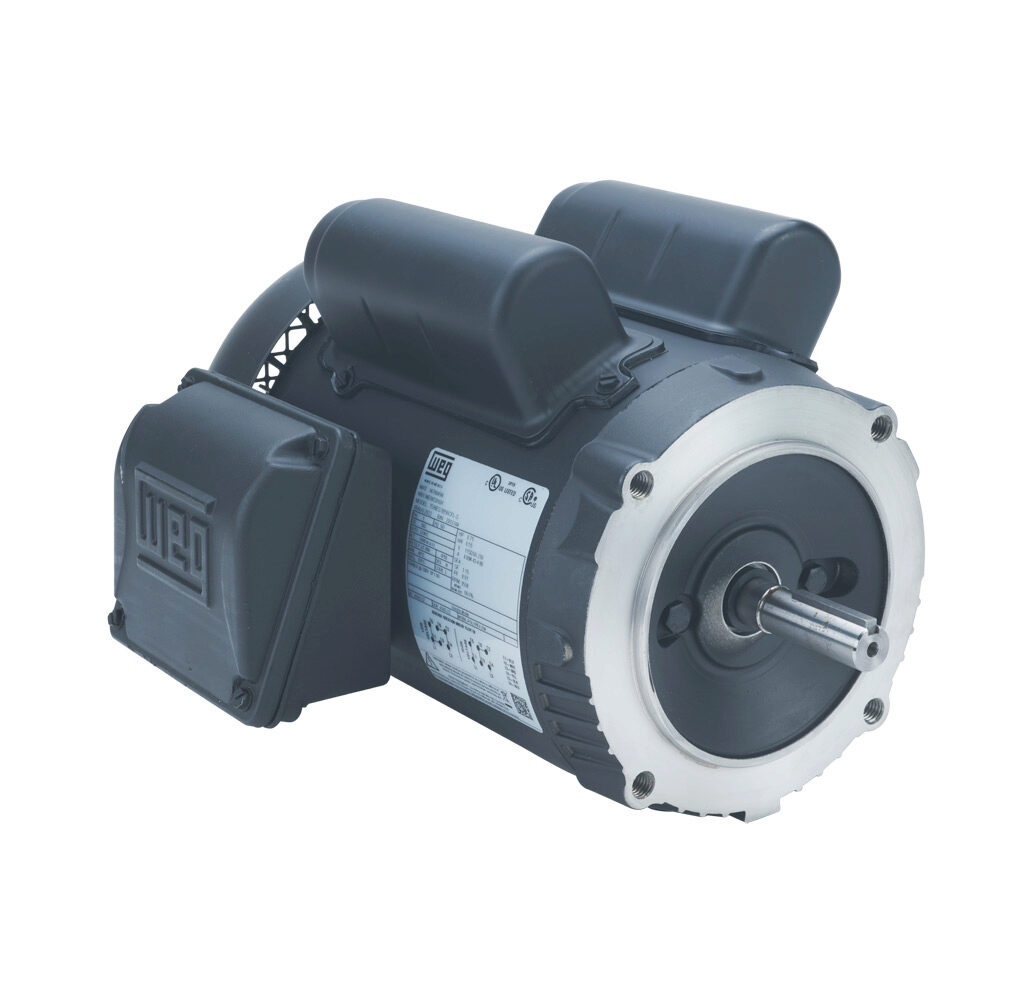

WEG .7536ES1B56CFL-S 14786499 General Purpose Motor, TEAO/TEFC Rolled Steel 56C Frame, 0.75 HP, 3500 RPM, 115/208-230V, Footless
Get it by Monday, Jul 6
€577.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 4-4.42/8A , 8/4.42-4A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 290% |
| Cold Locked Rotor Time | 18 sec. |
| Composition | Steel |
| Design | No |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 66% |
| Efficiency 50% | 52% , 81% |
| Efficiency 75% | 62% |
| Efficiency @ 1 % | 91% |
| Efficiency @ 100% | 66% |
| Efficiency @ 75 % | 87% |
| Efficiency Group | Standard Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer , Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 10 sec. |
| Hp | 3/4 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Integrated Brake | No |
| Ip Rating | IP55 |
| L. R. Amps | 32-35.4/64A , 64/35.4-32A |
| Locked Rotor Time (cold) | 18 sec. |
| Locked Rotor Time(hot) | 10 sec. |
| Locked Rotor Torque | 280% |
| Lrc | 8.0X(Code L) |
| Main Terminal Box Hole | 0.881" |
| Main Terminal Box Hole Size | 0.881" |
| Moment Of Inertia | 0.0394 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.0394 lbs.-sq. ft. |
| Motor Application | General Purpose |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56C |
| Motor Speed | 3500 RPM |
| Motor Type | Induction |
| Mounting | F-1 , Footless |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Speed | 3500 RPM |
| Nema Design | Design N |
| No Load Amps | 1.72-2/4A , 4/1.72-2A |
| No. Of Phase | 1 |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output | 3/4 hp |
| Output Rating | 3/4 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 1 |
| Power Factor 100% | 0.91 |
| Power Factor 50% | 0.81 |
| Power Factor 75% | 0.87 |
| Power Factor @ 1 % | 66 |
| Power Factor @ 50 % | 52 |
| Power Factor @ 75 % | 62 |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 2.78% |
| Speed | 3400-3600 RPM , 3500 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 1.13 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V , 115/208-230V AC |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 12.31 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Frame | Duty Cycle | No. Of Poles | Synchronous Speed | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
.5018ES1BW56CFL-S | 115/208-230V AC | 1/2 hp | - | W56C | S1 | 4 | 1800 RPM | 6.6/2.85-3.3A | €543.60 | |
 |
.7518ES1B56CFL-S | 115/208-230V AC | 3/4 hp | - | 56C | S1 | 4 | 1800 RPM | 8/3.45-4A | €441.44 | |
 |
.3318ES1BW56CFL-S | 115/208-230V AC | - | - | W56C | S1 | 4 | 1800 RPM | 5.4/2.33-2.7A | €496.80 | |
 |
00236ES1B56CFL-S | 115/208-230V AC | 2 hp | - | 56C | S1 | 2 | 3600 RPM | 5/2.16-2.5A | €961.20 | |
 |
.5012ES1B56CFL-S | 115/208-230V AC | 1/2 hp | - | 56C | Continuous | 6 | 1200 RPM | 4.4/1.9-2.2A | €638.29 | |
 |
.7512ES1B56CFL-S | 115/208-230V AC | 3/4 hp | - | 56C | Continuous | 6 | 1200 RPM | 6/2.59-3A | €798.17 | |
 |
00118ES1B56CFL-S | 115/208-230V AC | 1 hp | 13.6/7.52-6.8A | 56C | Continuous | 4 | 1800 RPM | 9.6/4.14-4.8A | €586.49 |
