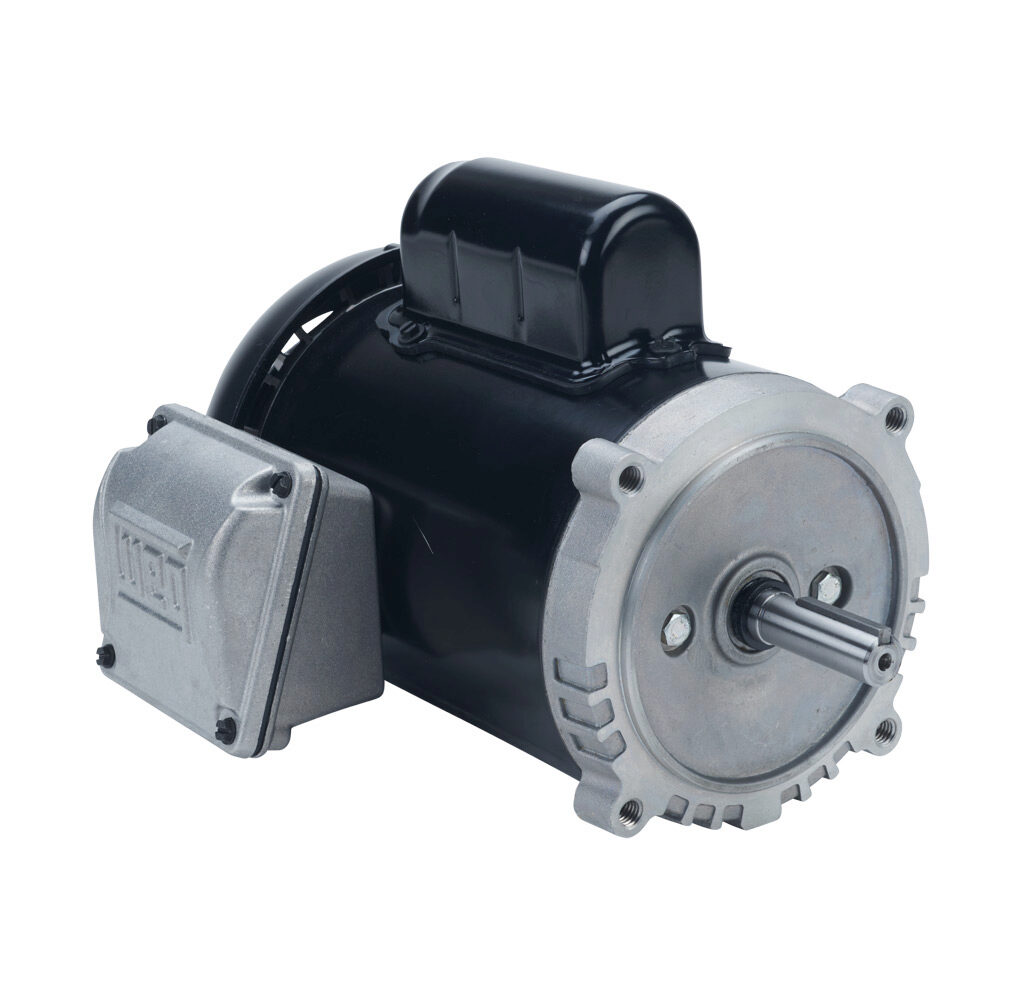

WEG .5036ES1BW56CFL-S 13621385 General Purpose Motor, TEAO/TEFC Rolled Steel W56C Frame, 0.5 HP, 3500 RPM, 115/208-230V, Footless
Get it by Friday, Aug 28
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€436.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 3.5-3.87/7A , 7/3.87-3.5A |
| Balancing Method | Not Balanced |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | No |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 60% |
| Efficiency 50% | 50% , 59% |
| Efficiency 75% | 58% |
| Efficiency @ 1 % | 76% |
| Efficiency @ 100% | 60% |
| Efficiency @ 75 % | 69% |
| Efficiency Group | Standard Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Industrial Polymer , Polymer |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 56C , W56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 70/3.87-3.5A |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 7 sec. |
| Hp | 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Integrated Brake | No |
| Inverter Rated | No |
| Ip Rating | IP55 |
| L. R. Amps | 28-31/56A , 56/31-28A |
| Length Less Shaft | 9 5/8" |
| Locked Rotor Time | 7 sec. |
| Locked Rotor Time (cold) | 12 sec. |
| Locked Rotor Time(hot) | 7 sec. |
| Locked Rotor Torque | 290% |
| Lrc | 8.0X(Code P) , 8x(Code P) |
| Main Terminal Box Hole | 0.881" |
| Main Terminal Box Hole Size | 0.881" |
| Material | Carbon Steel |
| Max. Ambient Temp. | 104°F |
| Moment Of Inertia | 0.0233 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.0233 lbs.-sq. ft. |
| Motor Application | General Purpose |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56C |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | CW, CCW |
| Motor Speed | 3500 RPM |
| Motor Thermal Protection | None |
| Motor Type | Induction |
| Mounting | F-1 , Footless |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Speed | 3500 RPM |
| Nde Bearing Seal | No |
| Nema Design | Design N |
| No Load Amps | 2.07-2.4/4.8A , 4.8/2.07-2.4A |
| No. Of Phase | 1 |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Noise Level | 66 dBA |
| Nominal Efficiency | 60% |
| Output | 1/2 hp |
| Output Rating | 1/2 hp |
| Overall Length | 11 1/2" |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 1 |
| Power Factor 100% | 0.76 |
| Power Factor 50% | 0.59 |
| Power Factor 75% | 0.69 |
| Power Factor @ 1 % | 60 |
| Power Factor @ 50 % | 50 |
| Power Factor @ 75 % | 58 |
| Product Datasheet | weg-5036es1bw56cfl-s.pdf |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Length | 1 7/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 2.78% |
| Speed | 3001-3600 RPM , 3400-3600 RPM , 3500 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 0.75 lbs.-ft. |
| Tropicalized Painting | Without |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V , 115/208-230V AC |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 9.96 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 2.54 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Service Factor | Full Load Amps | Frame | Insulation Class | Duty Cycle | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
.5018ES1BW56CFL-S | 115/208-230V AC | 1/2 hp | 1.15 | - | W56C | Class F | S1 | 4 | €543.60 | |
 |
.7518ES1B56CFL-S | 115/208-230V AC | 3/4 hp | 1.15 | - | 56C | Class F | S1 | 4 | €441.44 | |
 |
.3318ES1BW56CFL-S | 115/208-230V AC | - | 1.15 | - | W56C | Class F | S1 | 4 | €496.80 | |
 |
00236ES1B56CFL-S | 115/208-230V AC | 2 hp | 1.15 | - | 56C | Class F | S1 | 2 | €961.20 | |
 |
.5012ES1B56CFL-S | 115/208-230V AC | 1/2 hp | 1.15 | - | 56C | F | Continuous | 6 | €638.29 | |
 |
.7512ES1B56CFL-S | 115/208-230V AC | 3/4 hp | 1.15 | - | 56C | F | Continuous | 6 | €798.17 | |
 |
00118ES1B56CFL-S | 115/208-230V AC | 1 hp | 1.15 | 13.6/7.52-6.8A | 56C | Class F | Continuous | 4 | €586.49 |
