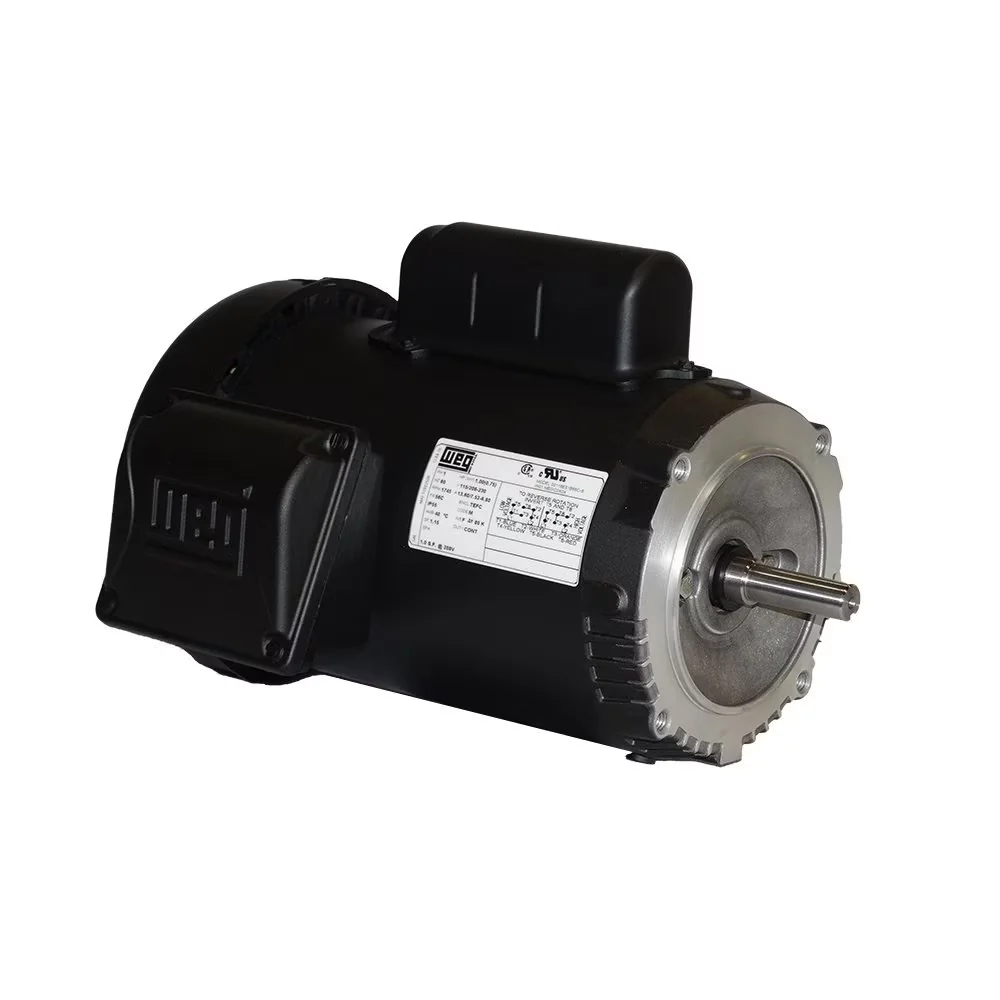

WEG .5012ES1B56CFL-S Electric Motor, 0.5Hp, 60Hz, 1200 Rpm | BB9ETL

WEG .5012ES1B56CFL-S 14785954 General Purpose Motor, TEAO/TEFC Rolled Steel 56C Frame, 0.5 HP, 1170 RPM, 115/208-230V, Footless Mount

Item: BB9ETLModel: .5012ES1B56CFL-SCross Ref: 14785954
Check Availability
In Stock
RPM
HP

Get it by Tuesday, Aug 18

€638.29 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 m.a.s.l. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 6.4/3.54-3.2A
Balancing Method 1/2 Key , 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 260%
Cold Locked Rotor Time 32 sec.
Composition Steel
De Bearing Seal V Ring
Degree Of Protection IP55
Design No
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Cont.(S1) , Continuous
Efficiency 50% 58%
Efficiency @ 1 % 72%
Efficiency @ 75 % 67%
Enclosure Rating IC411
Enclosure Type Tefc
Fan Cover Material Polymer , Steel
Fan Material Plastic
Flange C
Flange Type C
Frame 56C
Frame Material Rolled Steel
Frame Size 56C
Frequency 60 Hz
Grade Grade 1010/20
Grounding Lugs Single
Grounding Lugs Type Single
Hot Locked Rotor Time 18 sec.
Hp 1/2 hp
Impregnation Method Dip And Bake Polyester
Insulation Class F
L. R. Amps 42.2/23.4-21.1A
Locked Rotor Time(hot) 18 sec.
Locked Rotor Torque 240%
Lrc 6.6X(Code L)
Main Terminal Box Hole Size 0.881"
Material Carbon Steel
Moment Of Inertia 0.1241 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1170 RPM
Mounting Footless , Footless, F-1
Nde Bearing Seal No
No Load Amps 4.4/1.9-2.2A
No. Of Poles 6
Noise Level 54 dBA
Output 1/2 hp
Output Rating 1/2 hp
Overload Protector Without Overload Protector
Overload Protector (phenolic) Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer
Phase 1
Power Factor @ 1 % 67
Power Factor @ 50 % 54
Power Factor @ 75 % 63
Resilient Base Without
Rotation CW And CCW , CW, CCW
Service Factor 1.15 , 1.15 (1 @ 208V)
Shaft Material Carbon Steel , SAE 1040/45 Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.5%
Speed 1100-1200 RPM
Starting Method Direct On Line
Synchronous Speed 1200 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 2.24 lbs.-ft.
Tropicalized Painting Without
Voltage 115/208-230V , 115/208-230V AC

Shipping Info:

Ship weight (kg) 18.45
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelVoltageHpService FactorFull Load AmpsFrameInsulation ClassDuty CycleNo. Of PolesPrice

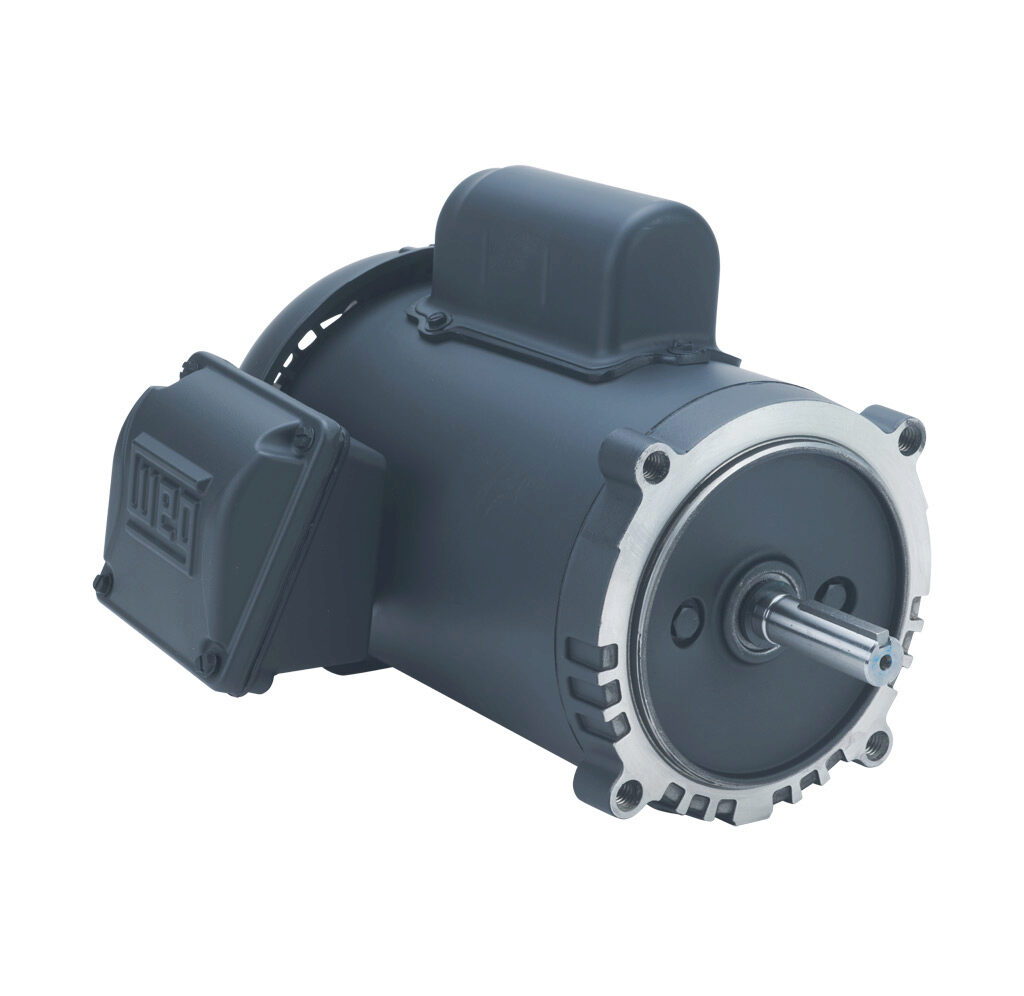

WEG .5018ES1BW56CFL-S TEFC AC General Purpose Motor | BB4UVK .5018ES1BW56CFL-S115/208-230V AC1/2 hp1.15-W56CClass FS14€543.60

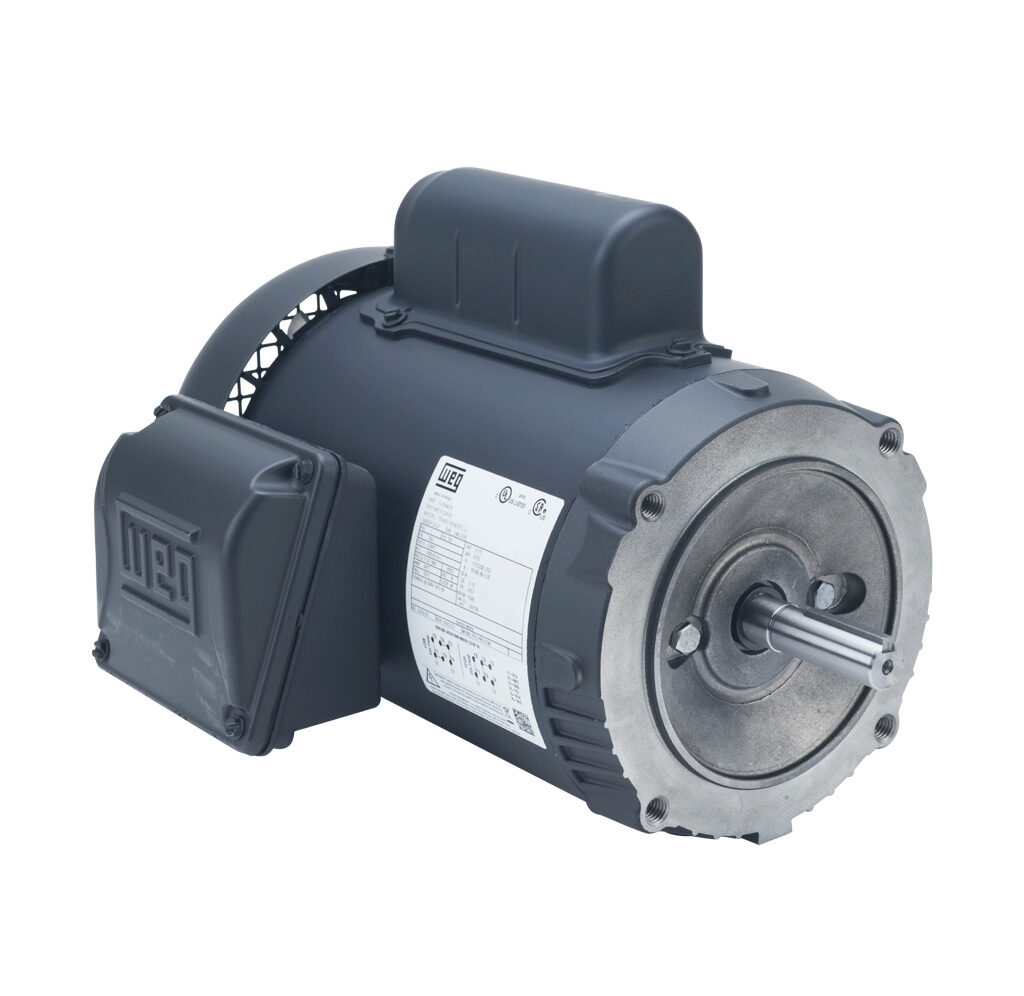

WEG .7518ES1B56CFL-S Electric Motor, 0.75Hp, 60Hz, 1800 Rpm | BB8ENC .7518ES1B56CFL-S115/208-230V AC3/4 hp1.15-56CClass FS14€441.44

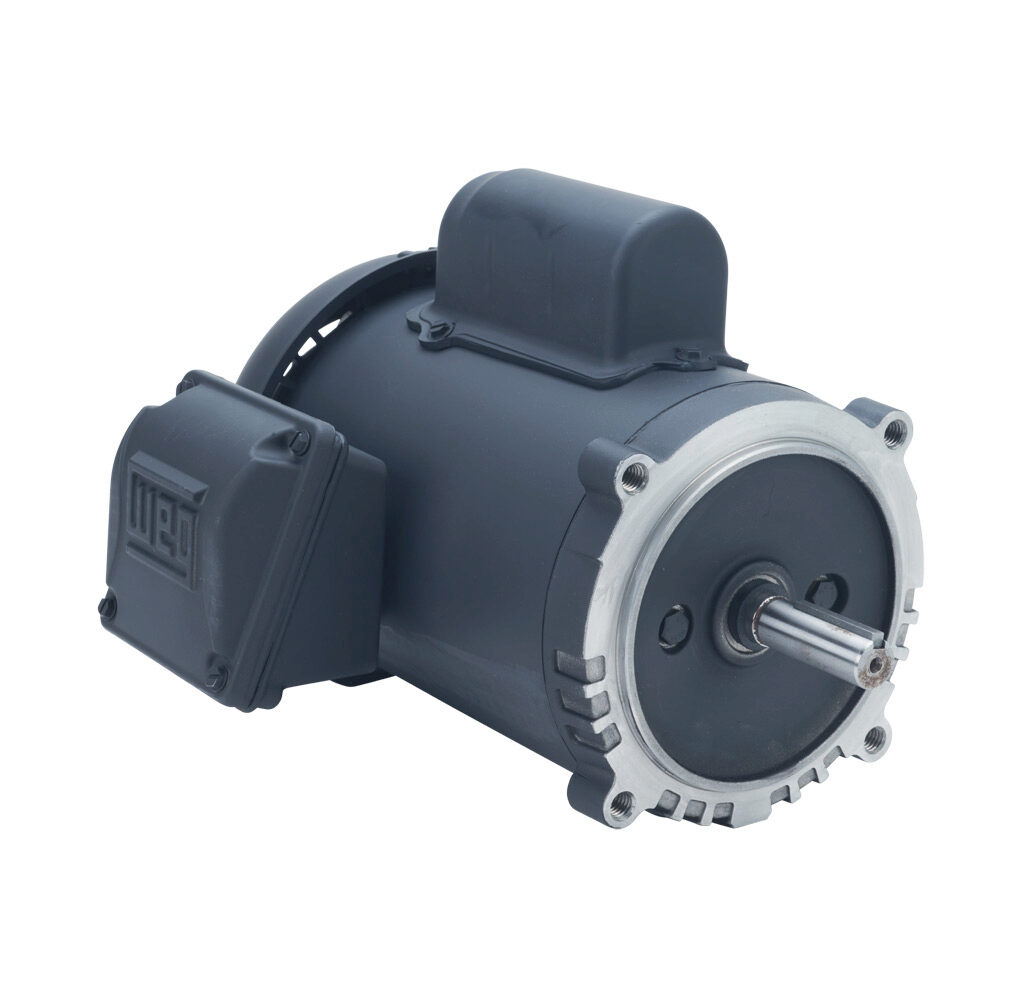

WEG .3318ES1BW56CFL-S Electric Motor, 0.33Hp, 60Hz, 1800 Rpm | BB8UQU .3318ES1BW56CFL-S115/208-230V AC-1.15-W56CClass FS14€496.80

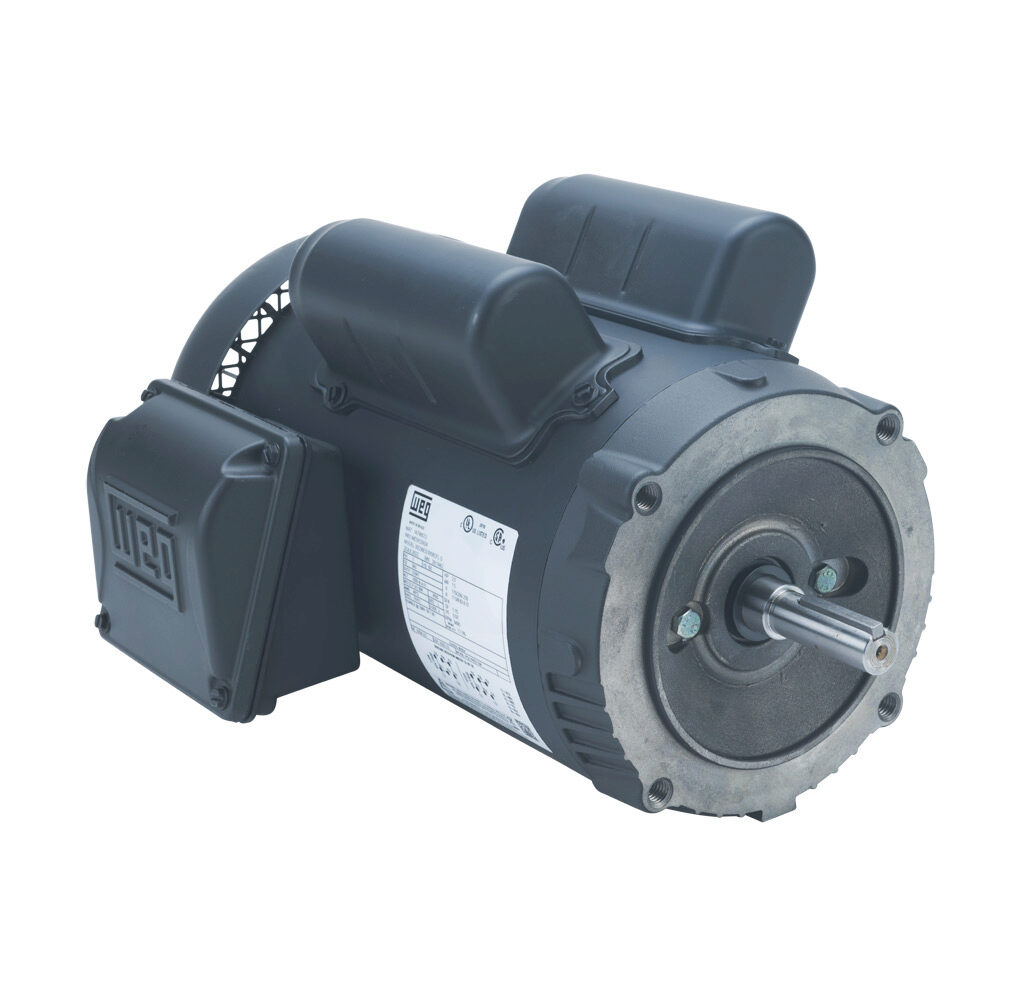

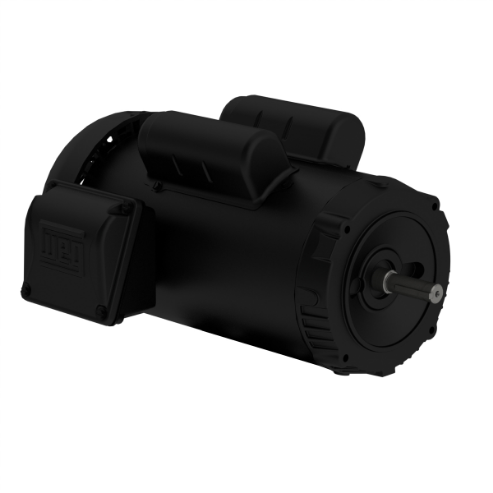

WEG 00236ES1B56CFL-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB9AZE 00236ES1B56CFL-S115/208-230V AC2 hp1.15-56CClass FS12€961.20
WEG .7512ES1B56CFL-S Electric Motor, 0.75Hp, 60Hz, 1200 Rpm | BB9GPP .7512ES1B56CFL-S115/208-230V AC3/4 hp1.15-56CFContinuous6€798.17

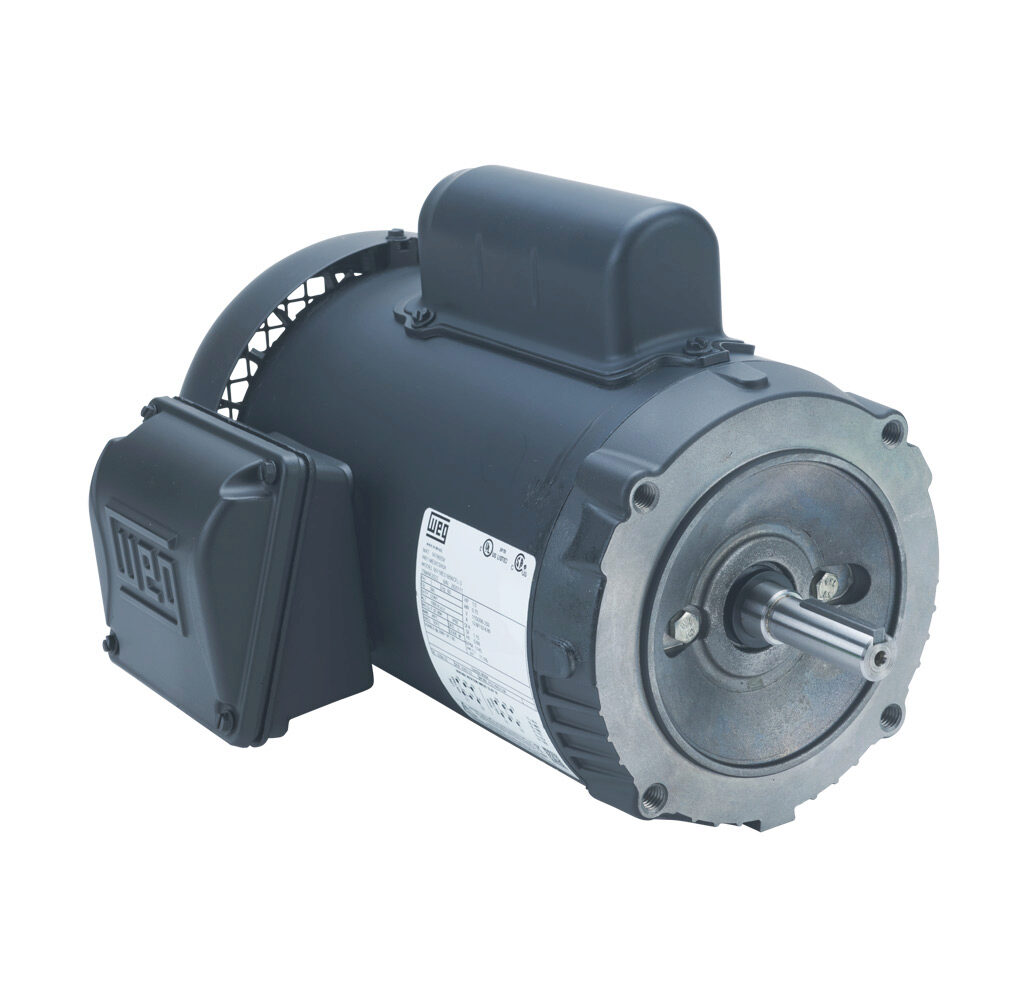

WEG 00118ES1B56CFL-S Electric Motor, 1Hp, 60Hz, 1800 Rpm | BB9JZL 00118ES1B56CFL-S115/208-230V AC1 hp1.1513.6/7.52-6.8A56CClass FContinuous4€586.49

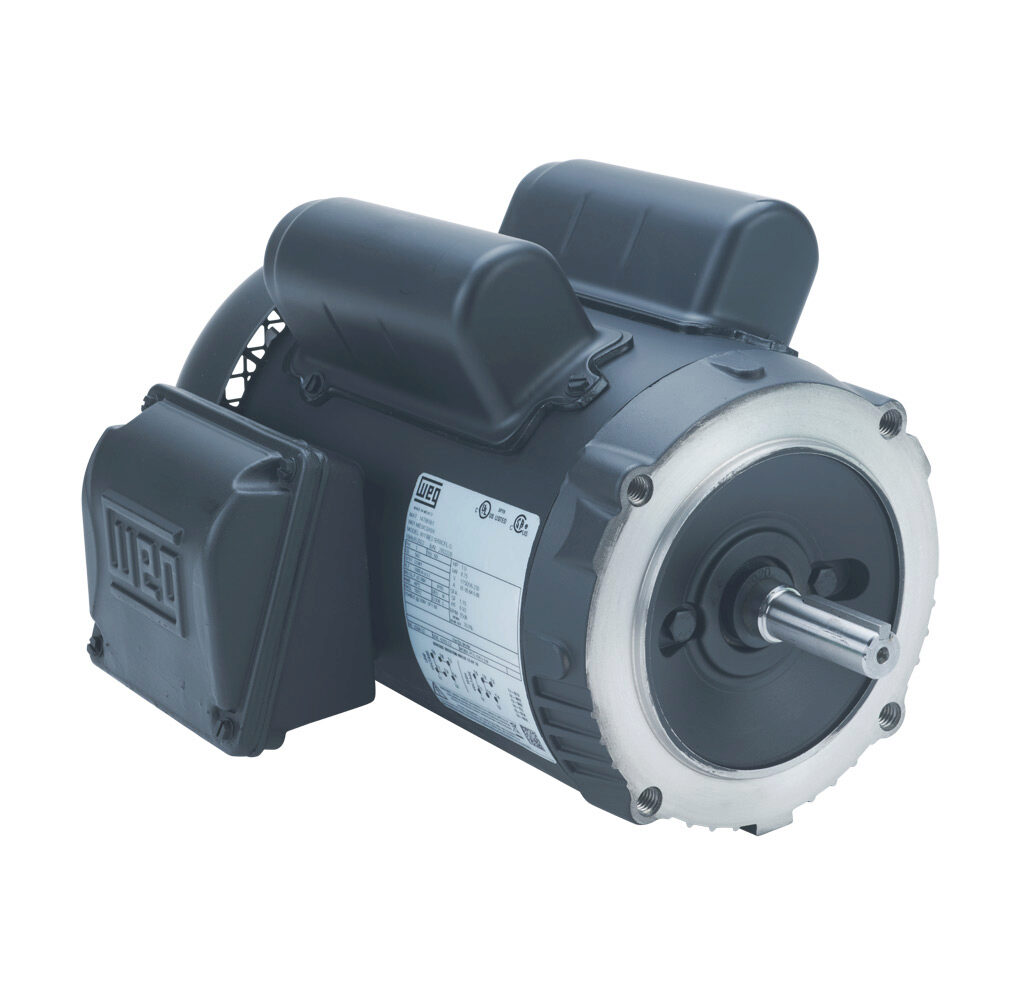

WEG 00136ES1B56CFL-S Electric Motor, 1Hp, 60Hz, 3600 Rpm | BB9TTR 00136ES1B56CFL-S115/208-230V AC1 hp1.15-56CClass FS12€617.40
