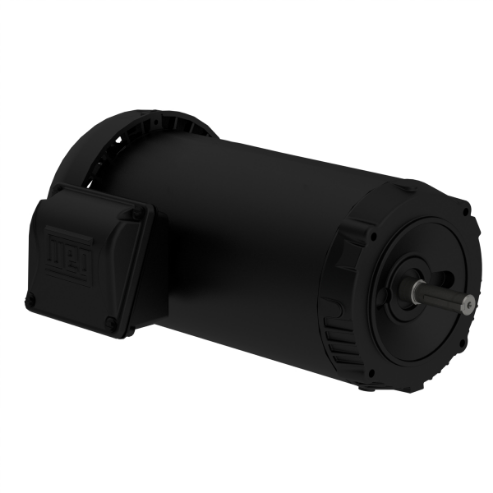

WEG .7518ES3H56CFL-S Electric Motor, 0.75Hp, 60Hz, 1800 Rpm | BB9KPY

WEG .7518ES3H56CFL-S 14786498 Fractional Motor, 0.75 HP, 1800 RPM, 575 V, 3 Phase, TEFC, 56CFL Frame, Footless

Item: BB9KPYModel: .7518ES3H56CFL-SCross Ref: 14786498
Check Availability
In Stock

Get it by Thursday, Feb 19

€397.29 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 300%
Cold Locked Rotor Time 30 sec.
Composition Steel
Connection Cables Quantity 3
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency At 1 % 72%
Efficiency At 50 % 48%
Efficiency At 75 % 61%
Enclosure Type Tefc
Fan Cover Material Polymer
Fan Material Plastic
Flange Type C
Frame 56C
Frame Material Rolled Steel
Frame Size 56C
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 17 sec.
Hp 3/4 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 6.73A
Locked Rotor Torque 240%
Lrc 6.9X(Code K)
Main Terminal Box Hole Size 0.881"
Moment Of Inertia 0.0648 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1755 RPM
Mounting Footless
No Load Amps 0.72A
No. Of Poles 4
Noise Level 52 dBA
Output 3/4 hp
Output Rating 3/4 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor At 1 % 78.5
Power Factor At 50 % 72
Power Factor At 75 % 77
Rated Current 0.976A
Rated Torque 2.24 lbs.-ft.
Rated Voltage 575V AC
Resilient Base Without
Rotation CW/CCW
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.5%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 575V AC

Shipping Info:

Ship weight (kg) 12.15
Ship height (cm)25.4
Ship length (cm)50.8
Ship width (cm)25.4
Country of OriginUS

Product Variants

ProductModelFrequencyHpNameplate RpmDuty CycleSynchronous SpeedNo Load AmpsMountingOutput RatingPrice
WEG .7518ES3E56CFL-S Electric Motor, 0.75Hp, 60Hz, 1800 Rpm | BB2RAJ .7518ES3E56CFL-S50/60 Hz-1755 RPMS11800 RPM1.55-1.8/0.9AFootless3/4 hp€541.80
WEG .5018ES3E56CFL-S TEFC AC General Purpose Motor | BB3XHU .5018ES3E56CFL-S60 Hz1/2 hp1760 RPMS11800 RPM1.03-1.2/0.6AFootless1/2 hp€507.94
WEG .5036ES3E56CFL-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BB6ADY .5036ES3E56CFL-S60 Hz1/2 hp3500 RPMS13600 RPM0.776-0.9/0.45AFootless1/2 hp-
RFQ
WEG .3336ES3E56CFL-S Electric Motor, 0.33Hp, 60Hz, 3600 Rpm | BB7CUY .3336ES3E56CFL-S50/60 Hz1/3 hp3485 RPMS13600 RPM0.621-0.72/0.36AFootless1/3 hp€441.00
WEG .7536ES3E56CFL-S Electric Motor, 0.75Hp, 60Hz, 360 Rpm | BB8GXJ .7536ES3E56CFL-S60 Hz-3475 RPMS13600 RPM0.948-1.1/0.55AFootless3/4 hp€507.60
WEG .3336ES3H56CFL-S Electric Motor, 0.33Hp, 60Hz, 3600 Rpm | BB8KCJ .3336ES3H56CFL-S60 Hz1/3 hp-S13600 RPM0.288AFootless1/3 hp€322.14
WEG .5012ES3E56CFL-S Electric Motor, 0.5Hp, 60Hz, 1200 Rpm | BB8TCV .5012ES3E56CFL-S60 Hz1/2 hp-S11200 RPM1.33-1.54/0.772AFootless1/2 hp€524.96
