WEG .5012ES3E56CFL-S 14785609 Electric Motor, 0.5Hp, 60Hz, 1200 Rpm
Get it by Friday, Dec 19
€524.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Cold Locked Rotor Time | 39 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 65% |
| Efficiency At 50 % | 44% |
| Efficiency At 75 % | 56% |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer |
| Fan Material | Plastic |
| Flange Type | C |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 22 sec. |
| Hp | 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 11.8-10.7/5.36A |
| Locked Rotor Torque | 210% |
| Lrc | 5.4X(Code K) |
| Main Terminal Box Hole Size | 0.881" |
| Moment Of Inertia | 0.1065 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1160 RPM |
| Mounting | Footless |
| No Load Amps | 1.33-1.54/0.772A |
| Noise Level | 50 dBA |
| Number Of Poles | 6 |
| Output | 1/2 hp |
| Output Rating | 1/2 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 50 % | 64 |
| Power Factor At 75 % | 70 |
| Rated Current | 2.19-1.98/0.992A |
| Rated Torque | 2.26 lbs.-ft. |
| Rated Voltage | 208-230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 3.33% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 208-230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Product Variants
| Product | Model | Frequency | Hp | Nameplate Rpm | Duty Cycle | Synchronous Speed | No Load Amps | Mounting | Output Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

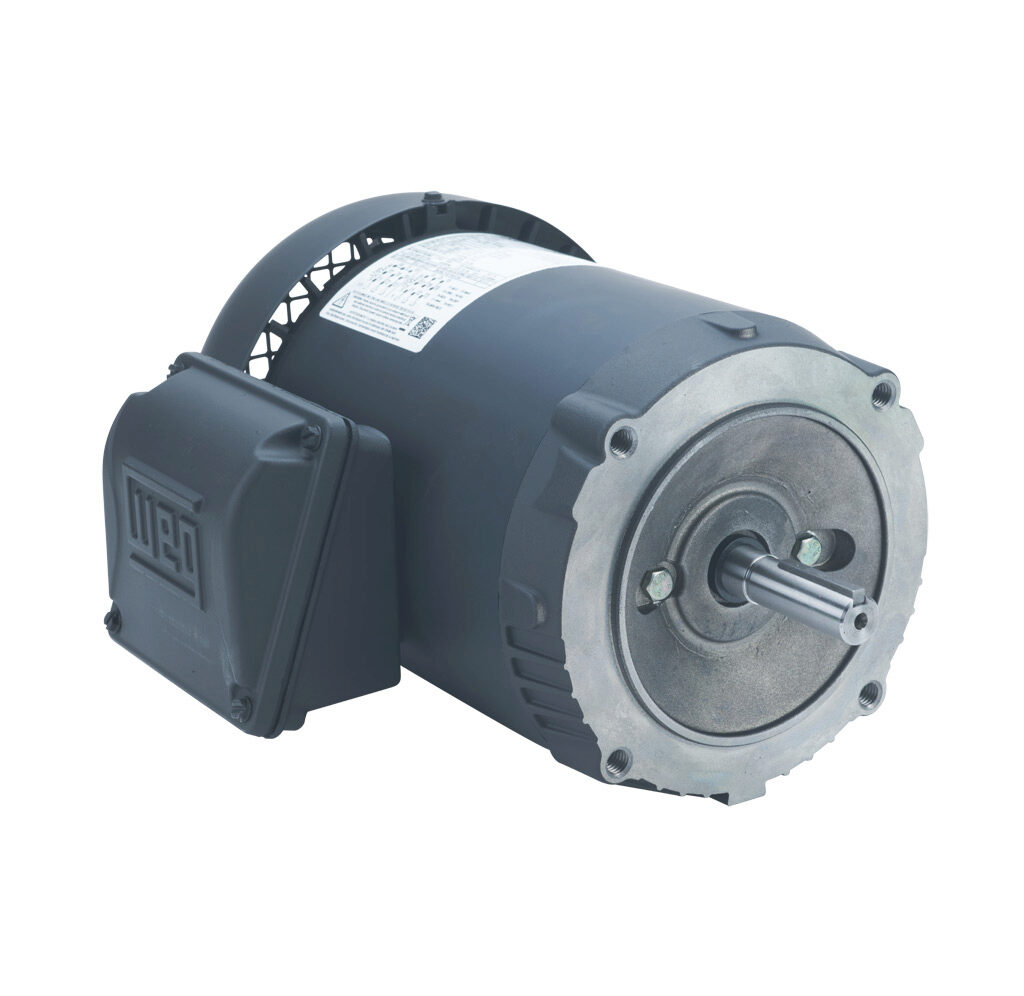

.7518ES3E56CFL-S | 50/60 Hz | - | 1755 RPM | S1 | 1800 RPM | 1.55-1.8/0.9A | Footless | 3/4 hp | €541.80 | |
 |

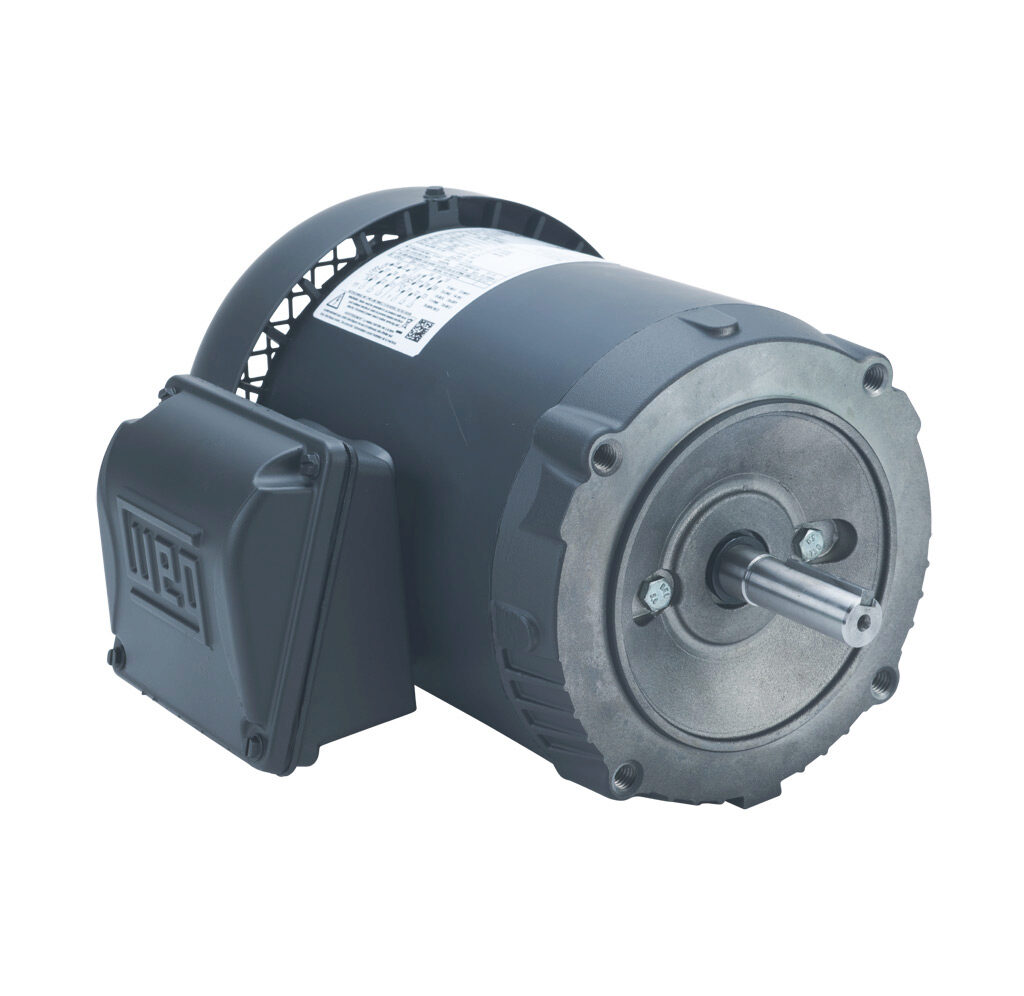

.5018ES3E56CFL-S | 60 Hz | 1/2 hp | 1760 RPM | S1 | 1800 RPM | 1.03-1.2/0.6A | Footless | 1/2 hp | €507.94 | |
 |
.5036ES3E56CFL-S | 60 Hz | 1/2 hp | 3500 RPM | S1 | 3600 RPM | 0.776-0.9/0.45A | Footless | 1/2 hp | - | RFQ
|
 |

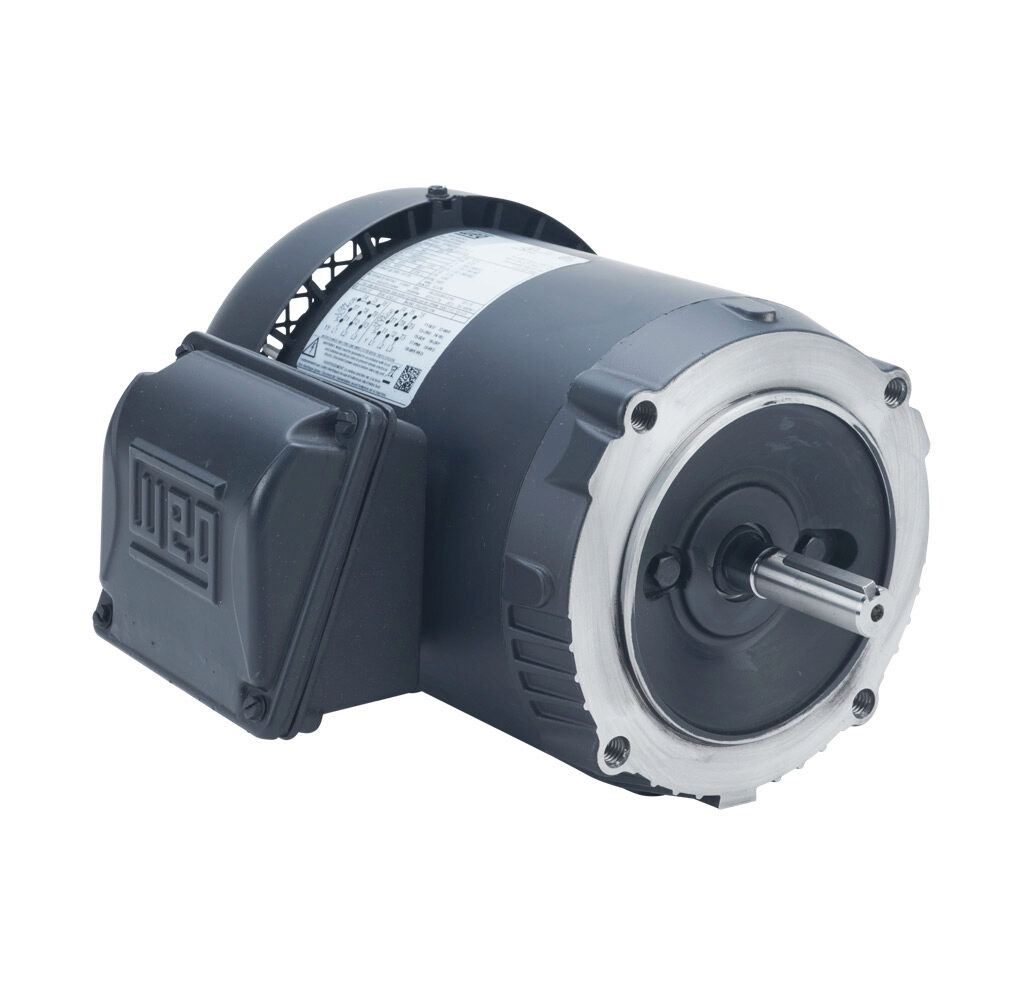

.3336ES3E56CFL-S | 50/60 Hz | 1/3 hp | 3485 RPM | S1 | 3600 RPM | 0.621-0.72/0.36A | Footless | 1/3 hp | €441.00 | |
 |

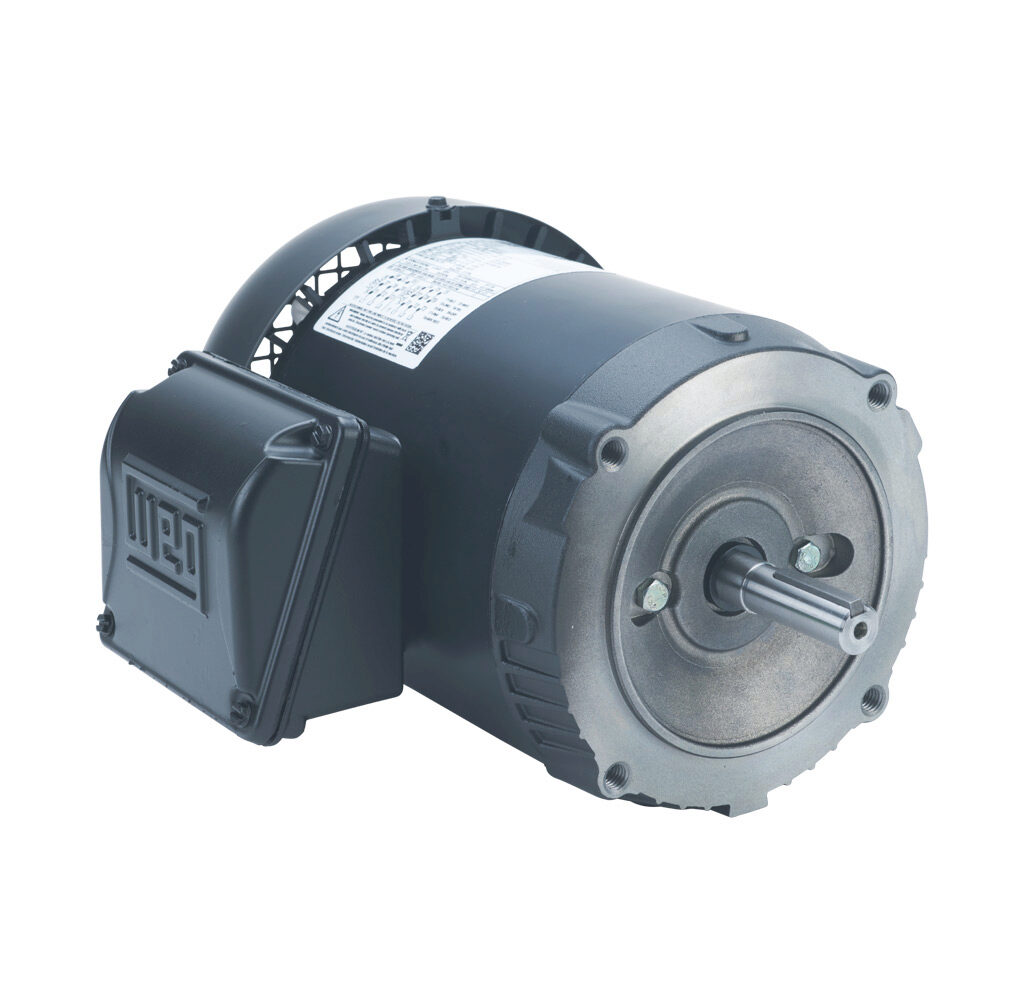

.7536ES3E56CFL-S | 60 Hz | - | 3475 RPM | S1 | 3600 RPM | 0.948-1.1/0.55A | Footless | 3/4 hp | €507.60 | |
|

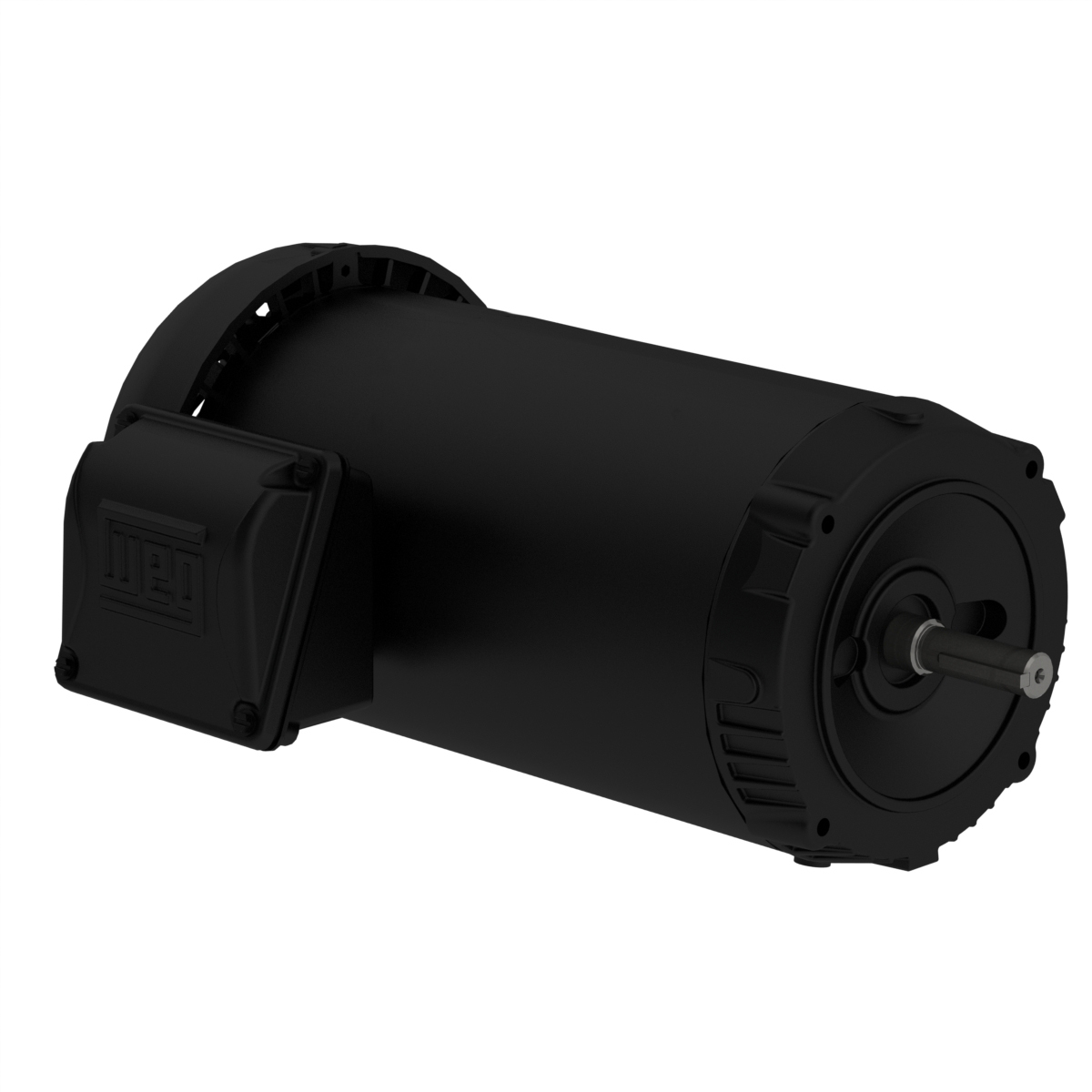

.3336ES3H56CFL-S | 60 Hz | 1/3 hp | - | S1 | 3600 RPM | 0.288A | Footless | 1/3 hp | €322.14 | |
|
.7512ES3E56CFL-S | 50/60 Hz | 3/4 hp | - | S1 | 1200 RPM | 1.67-1.94/0.971A | Footless | 3/4 hp | €535.69 |
