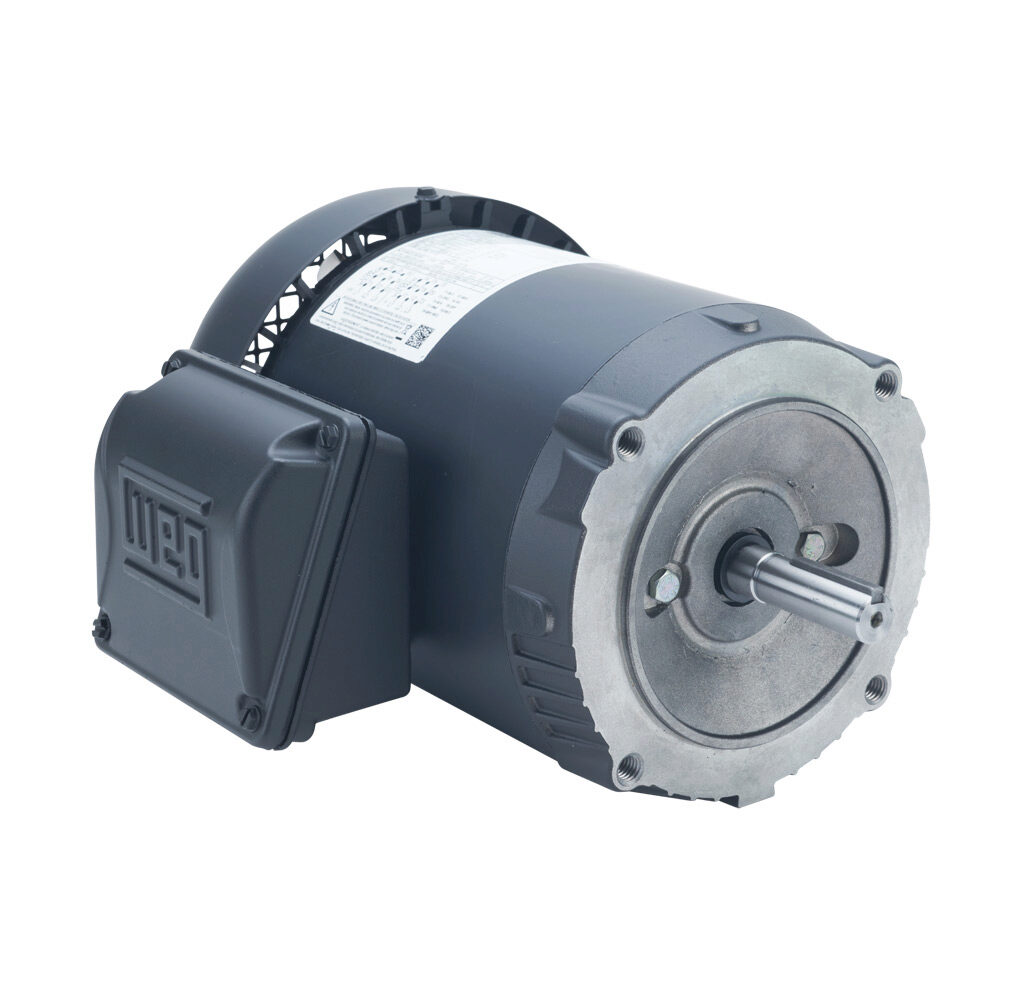

WEG .3318ES3E56CFL-S 14785546 Fractional Motor, 0.33 HP, 1800 RPM, 208/230/460 V, 3 Phase, TEFC, 56CFL Frame, Footless

Item: BB9BDPModel: .3318ES3E56CFL-SCross Ref: 14785546

Check Availability

In Stock

0.33 hp

HP

1800 rpm

RPM

208/230/460V

Voltage

Get it by Tuesday, Apr 14

€446.40 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Electric Motor
Altitude	1000 M.A.S.L. , 1000 MASL
Ambient Temp.	-20°C to +40°C
Balancing Method	1/2" Key
Bearing Cap	Yes
Bolt Material	Carbon Steel
Break-down Torque	300%
Breakdown Torque	300%
Cold Locked Rotor Time	55 sec.
Composition	Steel
Connection Cables Quantity	9
Constant Torque Rating	10:1
Drain	Rubber, Automatic
Drip Cover	Without
Duty Cycle	S1
Efficiency	74%
Efficiency @ 100%	74%
Efficiency @ 50%	64%
Efficiency @ 75%	72%
Efficiency At 1 %	68%
Efficiency At 50 %	47%
Efficiency At 75 %	58%
Efficiency Group	Standard Efficiency
Electrically Reversible	Yes
Enclosure	IC411
Enclosure Type	Tefc
Fan Cover Material	Polymer , Steel
Fan Material	Plastic
Flange	C
Flange Type	C
Frame	56C
Frame Material	Rolled Steel
Frame Size	56C
Frequency	60 Hz
Grounding Lugs	Single
Hot Locked Rotor Time	31 sec.
Hp	1/3 hp
Impregnation Method	Dip And Bake Polyester
Insulation Class	Class F
Integrated Brake	No
Ip Rating	IP55
L. R. Amps	9.8-8.86/4.43A
L.r. Amperes	4.43/8.86-9.8A
Locked Rotor Time (cold)	55 sec.
Locked Rotor Time (hot)	31 sec.
Locked Rotor Torque	229%
Lrc	7.1X(Code M)
Main Terminal Box Hole	0.881"
Main Terminal Box Hole Size	0.881"
Moment Of Inertia	0.0517 lbs.-sq. ft.
Moment Of Inertia (j)	0.0517 lbs.-sq. ft.
Motor Application	General Purpose And Inverter Rated
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame	56C
Motor Speed	1765 RPM
Motor Type	Induction
Mounting	F-1 , Footless
Mounting Orientation	Horizontal, Vertical
Nameplate Rpm	1765 RPM
No Load Amps	0.47/0.81-0.94A , 0.810-0.94/0.47A
No. Of Poles	4
Noise Level	52 dBA
Number Of Phases	3
Output	1/3 hp
Output Rating	0.33 hp , 1/3 hp
Overload Protection	No
Overload Protector	Without Overload Protector
Painting	Munsell N 1-Matte 207N (ISO 12944-C2)
Phase	3
Power Factor 50%	0.47
Power Factor 75%	0.58
Power Factor At 1 %	74
Power Factor At 50 %	64
Power Factor_100%	0.68
Rated Current	0.624/1.25-1.38A , 1.38-1.25/0.624A
Rated Speed	1765 RPM
Rated Torque	0.982 lbs.-ft.
Rated Voltage	208-230/460V AC
Resilient Base	Without
Rotation	CW/CCW
Rpm	1700-1800 RPM
Screw Cap	Carbon Steel
Series	S Series
Service Factor	1.15
Shaft Diameter	5/8"
Shaft Material	Carbon Steel
Shaft Material Grade	Grade 1040/45
Shaft Type	Round With Square Key
Slip	1.94%
Starting Method	Direct On Line
Synchronous Speed	1800 RPM
Temp. Rise	80 K
Terminal Block	Without
Terminal Box	Left Position
Tropicalized Painting	Without
Variable Torque Rating	1000:1
Voltage	190-220/208-230/380-415/460V , 208-230/460/190-220/380-415V AC
Voltage Rating	208-230/460V AC
Voltage Type	AC

Shipping Info:

Ship weight (kg)	11.25
Ship height (cm)	25.4
Ship length (cm)	50.8
Ship width (cm)	25.4
Country of Origin	BR

Product Variants

Model	Frequency	Hp	Nameplate Rpm	Duty Cycle	Synchronous Speed	No Load Amps	Mounting	Output Rating	Price
.7518ES3E56CFL-S	50/60 Hz	-	1755 RPM	S1	1800 RPM	1.55-1.8/0.9A	Footless	3/4 hp	€541.80
.5018ES3E56CFL-S	60 Hz	1/2 hp	1760 RPM	S1	1800 RPM	1.03-1.2/0.6A	Footless	1/2 hp	€507.94
.5036ES3E56CFL-S	60 Hz	1/2 hp	3500 RPM	S1	3600 RPM	0.776-0.9/0.45A	Footless	1/2 hp	-	RFQ
.3336ES3E56CFL-S	50/60 Hz	1/3 hp	3485 RPM	S1	3600 RPM	0.621-0.72/0.36A	Footless	1/3 hp	€441.00
.7536ES3E56CFL-S	60 Hz	-	3475 RPM	S1	3600 RPM	0.948-1.1/0.55A	Footless	3/4 hp	€507.60
.3336ES3H56CFL-S	60 Hz	1/3 hp	-	S1	3600 RPM	0.288A	Footless	1/3 hp	€322.14
.5012ES3E56CFL-S	60 Hz	1/2 hp	-	S1	1200 RPM	1.33-1.54/0.772A	Footless	1/2 hp	€524.96
