WEG .5018OS1BRBFBOW56-S Electric Motor, 0.5Hp, 60Hz, 1800 Rpm | BC3FFH

WEG .5018OS1BRBFBOW56-S 14590035 Air Handling Motor, Fan and Blower, 0.5 HP, 0.37 kW, 1800 RPM, W56 Frame, 115/208-230V, Automatic Overload Protector

Item: BC3FFHModel: .5018OS1BRBFBOW56-SCross Ref: 14590035

Check Availability

In Stock

Frame

Get it by Monday, Apr 6

€387.75 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Electric Motor
Altitude	1000 M.A.S.L. , 1000 MASL
Ambient Temp.	-20°C to +50°C
Balancing Method	Not Balanced
Bearing Cap	No
Bolt Material	Carbon Steel
Break-down Torque	270%
Breakdown Torque	270%
Cable Press Material	Sem
Cold Locked Rotor Time	18 sec.
Composition	Steel
Design	N
Drip Cover	Without
Duty Cycle	S1
Efficiency @ 100%	63%
Efficiency @ 50%	54%
Efficiency @ 75%	61%
Efficiency At 1 %	62%
Efficiency At 50 %	43%
Efficiency At 75 %	53%
Enclosure	IC01
Enclosure Type	ODP
Fan Cover Material	Without Fan Cover
Fan Material	Without Fan
Flange	Without
Flange Type	Without
Frame	W56
Frame Material	Rolled Steel
Frequency	60 Hz
Grounding Lugs	Single
Hot Locked Rotor Time	10 sec.
Hp	1/2 hp
Impregnation Method	Dip And Bake Polyester
Insulation Class	Class F
L. R. Amps	47.8/26.4-23.9A
L.r. Amperes	23.9-26.4/47.8A
Locked Rotor Time (cold)	18 sec.
Locked Rotor Time (hot)	10 sec.
Locked Rotor Torque	320%
Lrc	5.8X(Code M)
Moment Of Inertia	0.0475 lbs.-sq. ft.
Moment Of Inertia (j)	0.0475 lbs.-sq. ft.
Motor Enclosure Design	Open Dripproof
Motor Speed	1735 RPM
Mounting	F-1 , Foot Mounted
No Load Amps	2.93-3.4/6.8A , 6.8/2.93-3.4A
No. Of Poles	4
Noise Level	50 dBA
Output	1/2 hp
Output Rating	1/2 hp
Overload Protection	Automatic
Overload Protector	Automatic
Painting	Only Primer
Phase	1
Power Factor 50%	0.43
Power Factor 75%	0.53
Power Factor At 1 %	63
Power Factor At 50 %	54
Power Factor At 75 %	61
Power Factor_100%	0.62
Rated Current	4.12-4.56/8.24A , 8.24/4.56-4.12A
Rated Speed	1735 RPM
Rated Torque	1.51 lbs.-ft.
Rated Voltage	115/208-230V , 115/208-230V AC
Resilient Base	With
Rotation	CW/CCW
Rpm	1700-1800 RPM
Service Factor	1.25
Shaft Material	Carbon Steel
Shaft Material Grade	Grade 1040/45
Slip	3.61%
Starting Method	Direct On Line
Synchronous Speed	1800 RPM
Temp. Rise	70 K , 80 K
Terminal Box	Without Terminal Box
Tropicalized Painting	Without
Voltage	115/208-230V AC

Shipping Info:

Ship weight (kg)	9.45
Ship height (cm)	25.4
Ship length (cm)	27.75
Ship width (cm)	25.4
Country of Origin	BR

Product Variants

Model	Voltage	Service Factor	Hp	Rpm	Frame	No. Of Poles	Synchronous Speed	Mounting	Price
.3318OS1BSPRBOW56-S	115/208-230V	-	-	1700-1800 RPM	W56	4	1800 RPM	Foot Mounted	€343.60

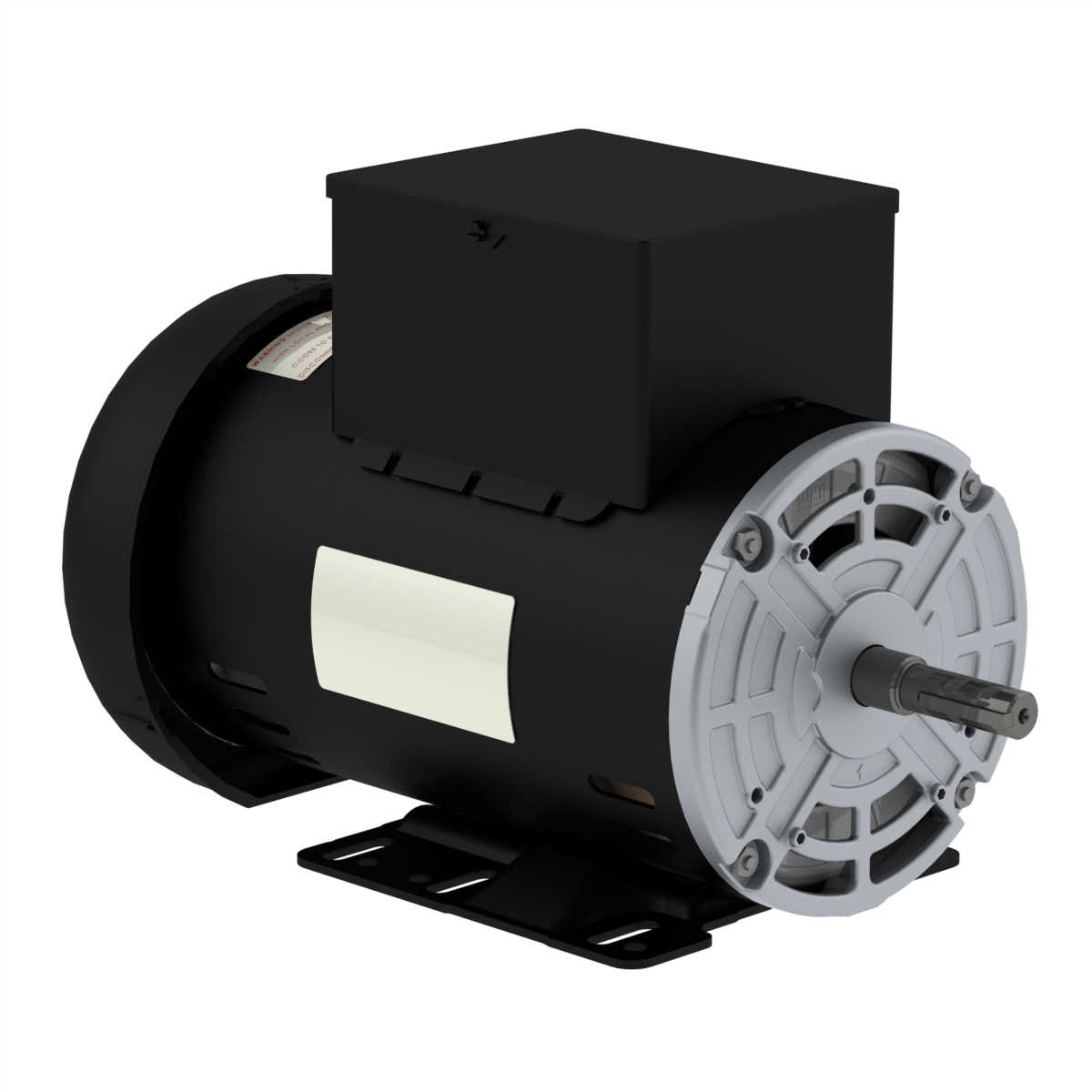

00536OS1CCDW184Y-S	208-230V AC	1.15	5 hp	3400-3600 RPM	W182/4Y	2	3600 RPM	Foot Mounted	€627.56

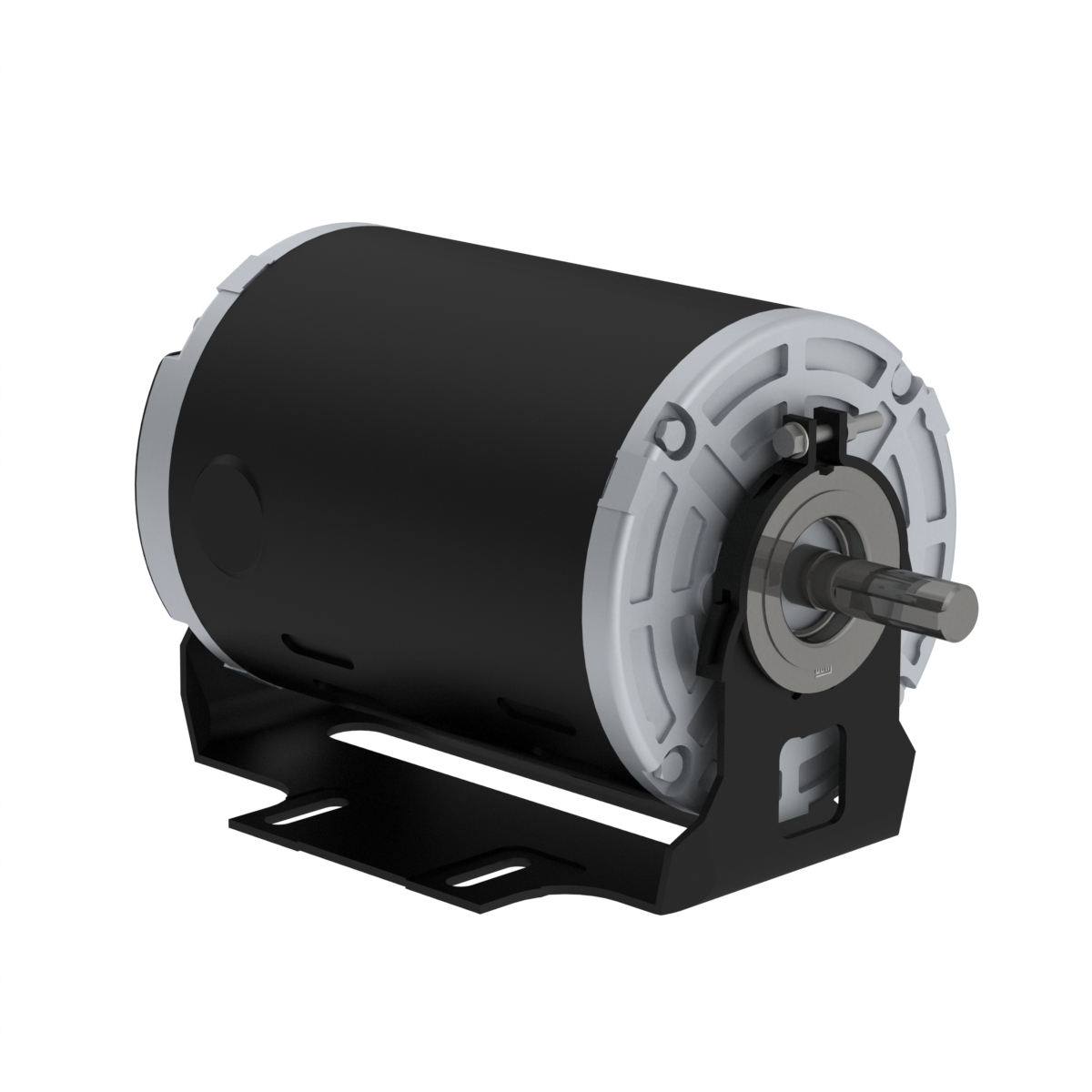

.3318OS1BSPRBW56-S	115/208-230V AC	1.35	1/3 hp	1700-1800 RPM	W56	4	1800 RPM	Foot Mounted	€329.28

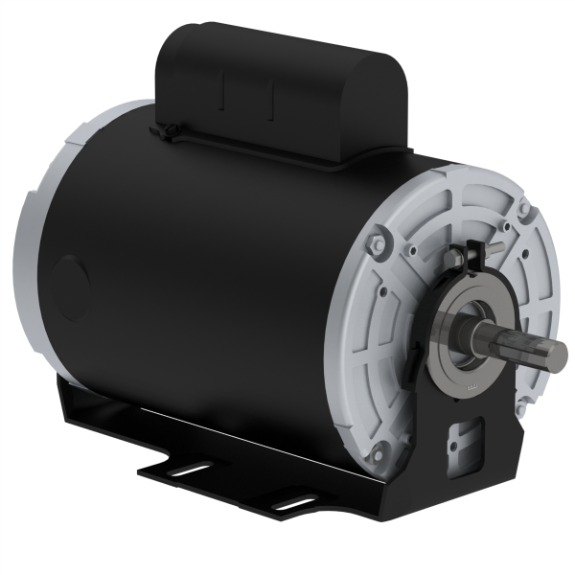

.5018OS1BRBFBW56-S	115/208-230V	1.25	1/2 hp	1700-1800 RPM	W56	4	1800 RPM	Foot Mounted	€349.60

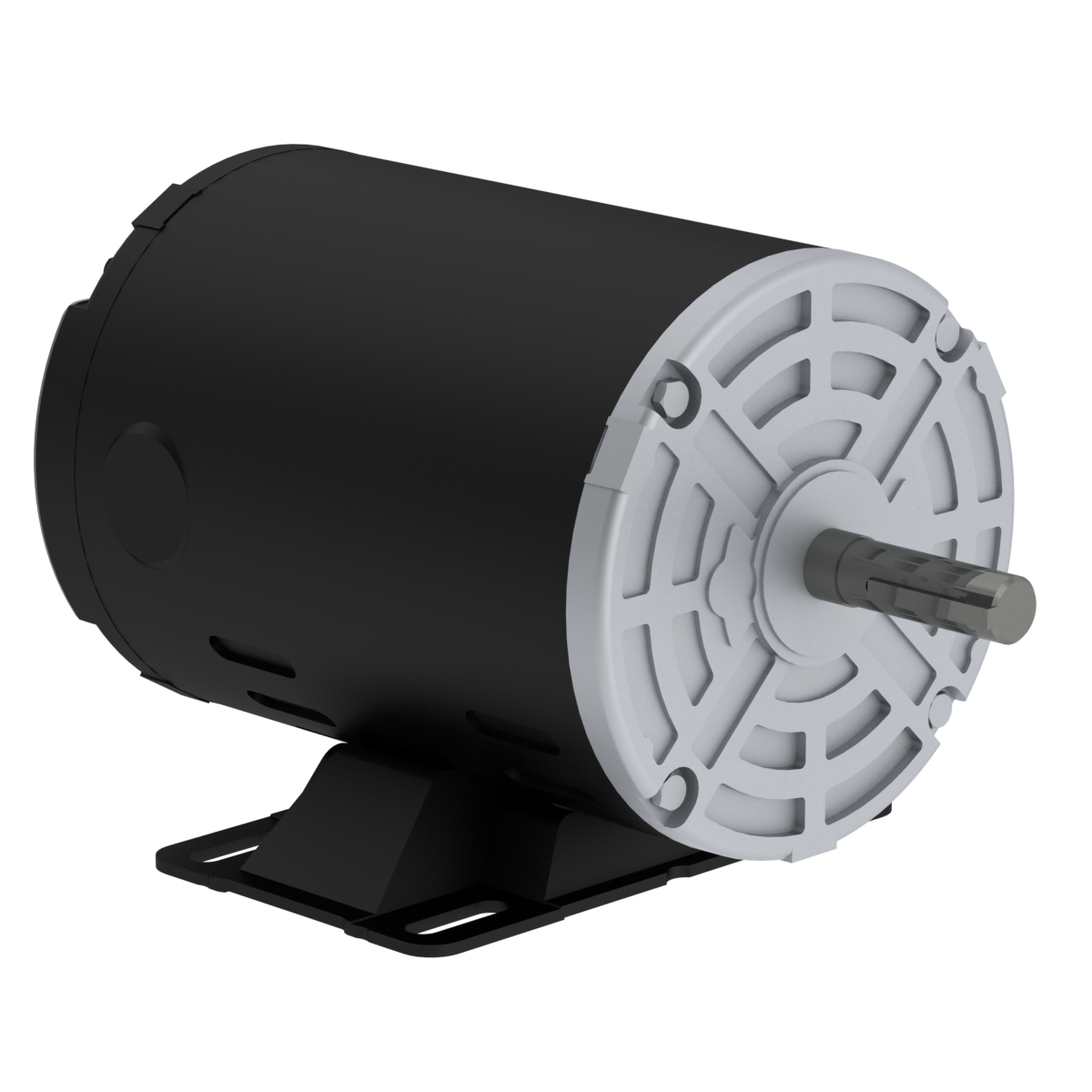

.5018OS1BSPOW56-S	115/208-230V AC	1.25	-	1700-1800 RPM	W56	4	1800 RPM	Foot Mounted	€307.16
.5018OS1BSPRB48Z-S	115/208-230V AC	1.25	1/2 hp	1700-1800 RPM	-	4	1800 RPM	Foot Mounted	€356.73

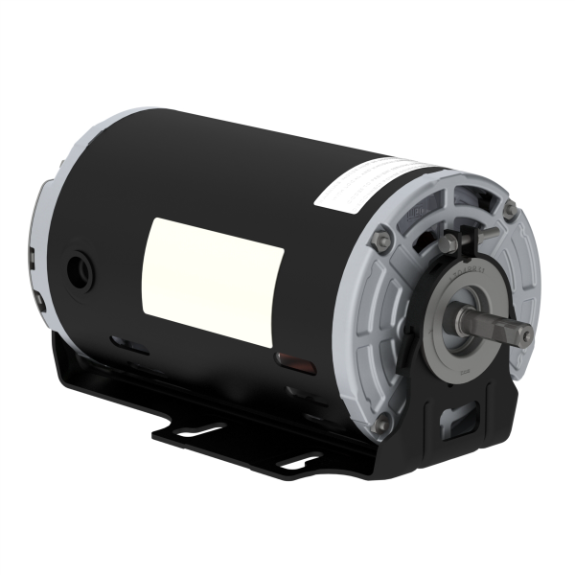

.5018OS1BSPRBO48Z-S	115/208-230V AC	1.25	1/2 hp	1700-1800 RPM	48Z	4	1800 RPM	Foot Mounted	€371.05
