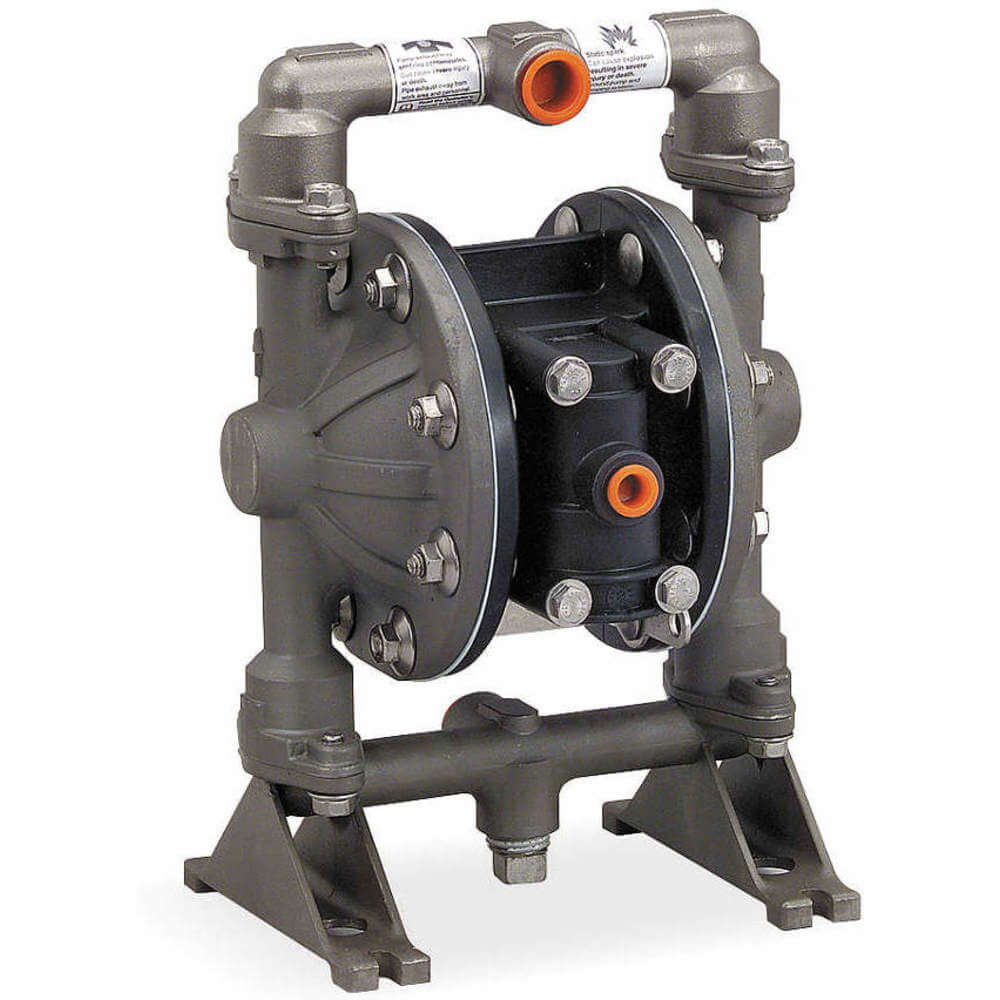

ARO PD05R-ASS-SAA-B Double Diaphragm Pump Air Operated 200f
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€2,903.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 20 SCFM |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Ball Material | Santoprene |
| Center Section Material | Plastic |
| Check Seat Material | Stainless Steel |
| Compatible Chemicals | Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel Exhaust Fluid, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Water |
| Connection Size | 1/2" |
| Connection Type | NPTF |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 12.4 GPM |
| Flow Rate @ 40 Psi | 9.5 GPM |
| Flow Rate @ 50 Psi | 10.9 GPM |
| Flow Rate @ 60 Psi | 11.7 GPM |
| Flow Rate @ 70 Psi | 12.2 GPM |
| Flow Rate @ 80 Psi | 12.3 GPM |
| Flow Rate @ 90 Psi | 12.3 GPM |
| Fluid Intake Connection | 1/2" Nptf |
| Fluid Outlet Connection | 1/2" Nptf |
| For Use With Potable Systems | Yes |
| Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Inlet Size | 1/4" |
| Manifold Connection | Multi Port |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Gpm | 12 |
| Max. Flow Rate | 12.4 GPM |
| Max. Head | 255 ft. |
| Max. Media Temp. | 225°F |
| Max. Operating Pressure | 100 psi |
| Max. Solid Dia. | 0.09" |
| Max. Viscosity | 15000 cPS |
| Media Discharge Location | Center |
| Media Intake Location | Bottom, Center, Side |
| Min. Media Temp. | -40°F |
| Mounting Hardware Material | Stainless Steel |
| Npshr | 39 ft. |
| Operation Type | Air Operated |
| Overall Height | 11 4/5" |
| Overall Length | 8 1/5" |
| Overall Width | 8.1" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 100 psi |
| Self Priming | Yes |
| Self Priming Dry | 10 ft. |
| Self Priming Wet | 15 ft. |
| Self-priming Dry | 10 ft. |
| Self-priming Wet | 15 ft. |
| Series | PD05X Series |
| Series Family | Compact |
| Valve Material | Santoprene |
| Valve Type | Ball |
| Warranty | 5 yrs. |
Shipping Info:
| Ship weight (kg) | 7.67 |
| Ship height (cm) | 29.97 |
| Ship length (cm) | 20.83 |
| Ship width (cm) | 20.57 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Valve Material | Check Seat Material | Max. Media Temp. | Diaphragm Material | Min. Media Temp. | Ball Material | Media Discharge Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PD05R-AAS-PAA-B | Aluminum | Santoprene | Polypropylene | 225°F | Santoprene | -40°F | Santoprene | Center, Side | €1,529.28 | |
|
PD05R-ASS-STT-B | Stainless Steel | PTFE | Stainless Steel | 225°F | PTFE | 40°F | PTFE | Center | €3,391.73 | |
|
PD05R-AAS-PGG-B | Aluminum | Buna N | Polypropylene | 180°F | Buna N | 10°F | Nitrile | Center, Side | €1,588.28 | |
 |
PD05R-AAS-STT-B | Aluminum | PTFE | Stainless Steel | 225°F | - | 40°F | PTFE | Center, Side | €2,037.83 |
