WEG .5018OS1BSPRBO48Z-S 13190518 Air Handling Motor, .50 HP, 1800 RPM, 115/208/230 V, 1 Phase, ODP, 48Z Frame, Split Phase, Resilient Base
Get it by Thursday, Jul 2
€371.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 3.62-3.8/7.24A , 7.24/3.8-3.62A |
| Balancing Method | Not Balanced |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break Down Torque | 220% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 10 sec. |
| Composition | Steel |
| Design | O |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 50% , 52% |
| Efficiency 75% | 60% |
| Efficiency @ 1 % | 70% |
| Efficiency @ 100% | 63.5% |
| Efficiency @ 75 % | 60% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Flange Type | Without |
| Frame | 48Z |
| Frame Material | Rolled Steel |
| Frame Size | 48Z |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 6 sec. |
| Hp | 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 23.5-24.7/47.1A , 47.1/24.7-23.5A |
| Locked Rotor Time | 6 sec. |
| Locked Rotor Time (cold) | 10 sec. |
| Locked Rotor Torque | 130% |
| Lrc | 6.5X(Code M) |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1715 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 2.5-2.9/5.8A , 5.8/2.5-2.9A |
| No. Of Poles | 4 |
| Output | 1/2 hp |
| Output Rating | 1/2 hp |
| Overload Protection | Automatic |
| Overload Protector | Automatic |
| Painting | Only Primer |
| Phase | 1 |
| Power Factor 100% | 0.7 |
| Power Factor 50% | 0.5 |
| Power Factor 75% | 0.6 |
| Power Factor @ 1 % | 63.5 |
| Power Factor @ 50 % | 52 |
| Power Factor @ 75 % | 60 |
| Resilient Base | With |
| Rotation | CW, CCW |
| Service Factor | 1.25 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 4.72% |
| Speed | 1700-1800 RPM , 1715 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Torque | 1.53 lbs.-ft. |
| Voltage | 115/208-230V , 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 27.75 |
| Ship width (cm) | 2.54 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Service Factor | Hp | Frame | No. Of Poles | Synchronous Speed | Mounting | Output Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

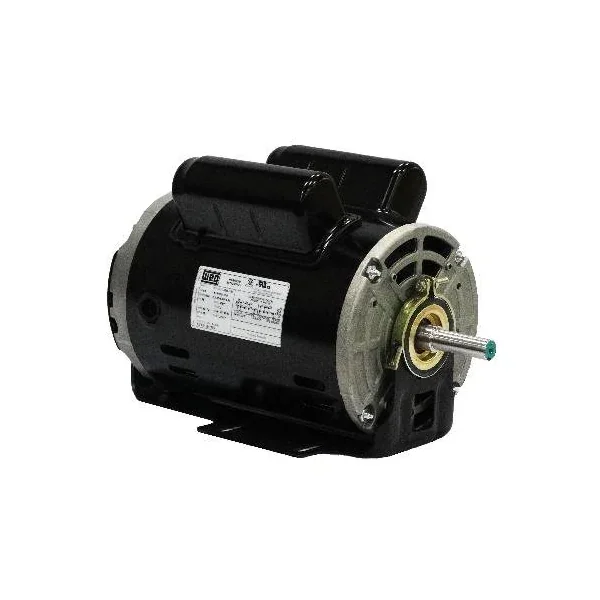

.3318OS1BSPRBOW56-S | 115/208-230V | - | 0.33 hp | W56 | 4 | 1800 RPM | Foot Mounted | 1/3 hp | €343.60 | |
 |
00536OS1CCDW184Y-S | 208-230V AC | 1.15 | 5 hp | W182/4Y | 2 | 3600 RPM | Foot Mounted | 5 hp | €627.56 | |
 |
.3318OS1BSPRBW56-S | 115/208-230V AC | 1.35 | 1/3 hp | W56 | 4 | 1800 RPM | Foot Mounted | 1/3 hp | €329.28 | |
 |
.5018OS1BRBFBOW56-S | 115/208-230V AC | 1.25 | 1/2 hp | W56 | 4 | 1800 RPM | Foot Mounted | 1/2 hp | €387.75 | |
 |
.5018OS1BRBFBW56-S | 115/208-230V AC | 1.25 | 1/2 hp | W56 | 4 | 1800 RPM | Foot Mounted | 1/2 hp | €349.60 | |
 |
.5018OS1BSPOW56-S | 115/208-230V AC | 1.25 | - | W56 | 4 | 1800 RPM | Foot Mounted | 1/2 hp | €307.16 | |
 |
.5018OS1BSPRB48Z-S | 115/208-230V AC | 1.25 | 1/2 hp | - | 4 | 1800 RPM | Foot Mounted | 1/2 hp | €356.73 |
