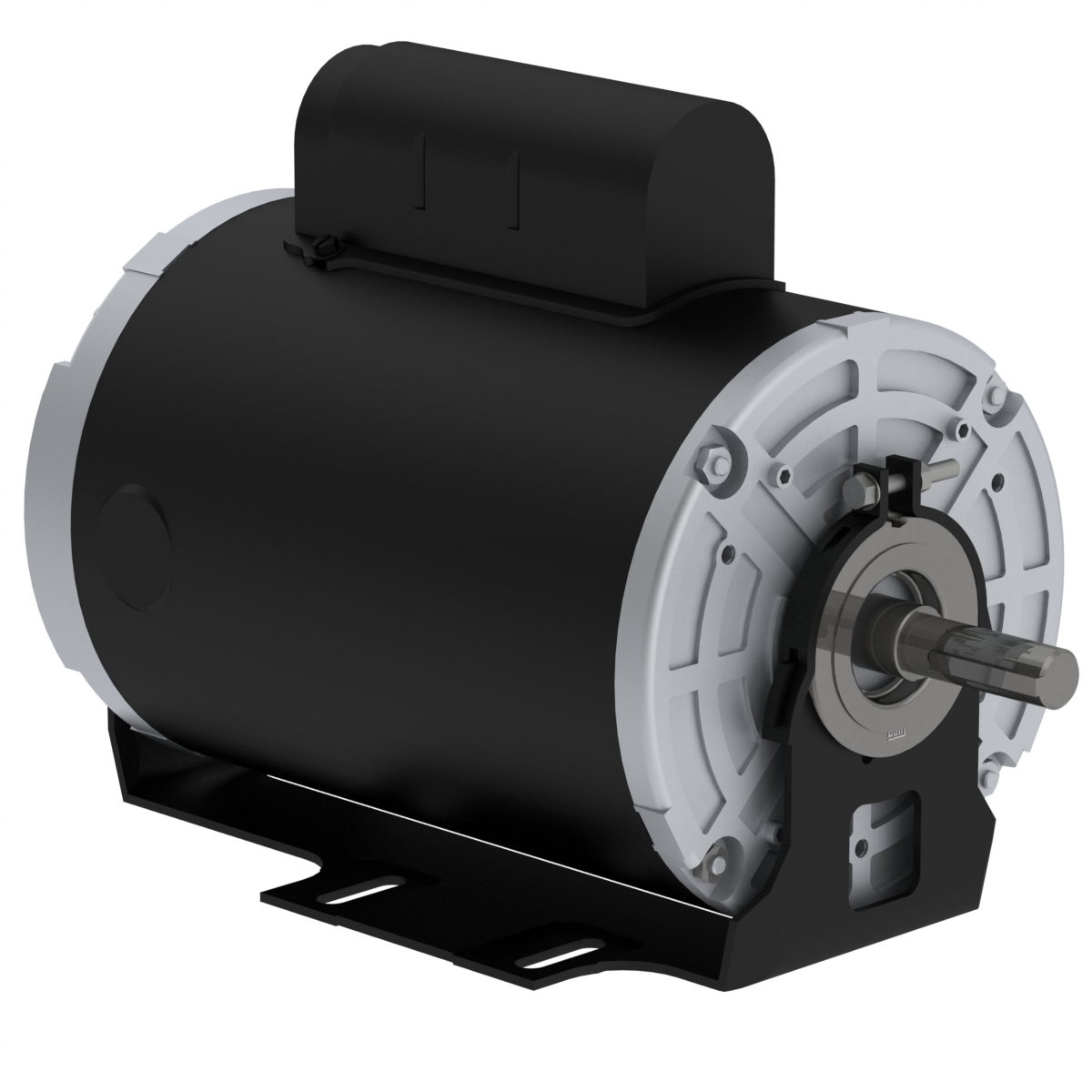

WEG .7518OS1BRBFBOW56-S 14590192 Air Handling Motor, Fan and Blower, 0.75 HP, 0.55 kW, 1800 RPM, 56 Frame, 115/208-230 V, 6.5x(Code M) LRC
Get it by Tuesday, Feb 17
€452.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +50°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break-down Torque | 270% |
| Cold Locked Rotor Time | 18 sec. |
| Design | N |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 66% |
| Efficiency At 50 % | 46% |
| Efficiency At 75 % | 57% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 10 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 68.2/37.8-34.1A |
| Locked Rotor Torque | 280% |
| Lrc | 6.5X(Code M) |
| Moment Of Inertia | 0.0783 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1745 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 8/3.45-4A |
| No. Of Poles | 4 |
| Noise Level | 52 dBA |
| Output | 3/4 hp |
| Output Rating | 3/4 hp |
| Overload Protector | Automatic |
| Painting | Only Primer |
| Phase | 1 |
| Power Factor At 1 % | 69 |
| Power Factor At 50 % | 60 |
| Power Factor At 75 % | 66 |
| Rated Current | 10.5/5.81-5.25A |
| Rated Torque | 2.26 lbs.-ft. |
| Rated Voltage | 115/208-230V AC |
| Resilient Base | With |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.25 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.06% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 14.85 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Frame | Service Factor | Design | Hp | Duty Cycle | Motor Enclosure Design | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00536OS1DCD56H-S | 230V AC | 56H | 1 | L | 5 hp | S1 | - | Rolled Steel | €546.42 | |
 |
.3318OS1BSPRBOW56-S | 115/208-230V | W56 | - | - | - | - | Open Dripproof | - | €343.60 | |
|
00536OS1CCDW184Y-S | 208-230V AC | W182/4Y | 1.15 | L | 5 hp | S1 | Open Dripproof | Rolled Steel | €627.56 | |
 |
.3318OS1BSPRBW56-S | 115/208-230V AC | W56 | 1.35 | N | 1/3 hp | S1 | Open Dripproof | Rolled Steel | €329.28 | |
 |
.5018OS1BRBFBOW56-S | 115/208-230V AC | W56 | 1.25 | N | 1/2 hp | S1 | Open Dripproof | Rolled Steel | €387.75 | |
 |
.5018OS1BRBFBW56-S | 115/208-230V | W56 | 1.25 | N | 1/2 hp | Continuous | Open Dripproof | Rolled Steel | €349.60 | |
 |
.5018OS1BSPOW56-S | 115/208-230V AC | W56 | 1.25 | O | - | S1 | Open Dripproof | Rolled Steel | €307.16 |
