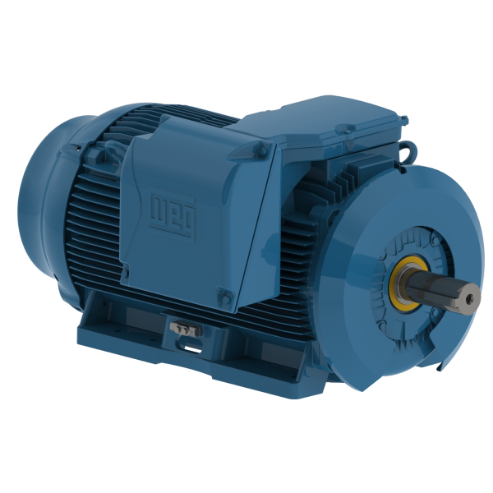

WEG 40009ET3G588/9-W22 14334997 General Purpose Motor, TEFC Cast Iron 588/9T Frame, 400 HP, 894 RPM, 460 V
900 rpm
400 hp
589
Get it by Tuesday, Sep 1
€75,748.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 498A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Cable Press Material | Sem |
| Connection Cables Quantity | 6 |
| De Bearing Seal | Taconite Labyrinth |
| Degree Of Protection | IP55 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency 50% | 62% , 95% |
| Efficiency 75% | 95.6% |
| Efficiency @ 1 % | 79% |
| Efficiency @ 100% | 95.8% |
| Efficiency @ 75 % | 73% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 588/9T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 498A |
| Grade | Grade 1010/20 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hot Locked Rotor Time | 25 sec. |
| Hp | 400 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| Locked Rotor Time (cold) | 45 sec. |
| Locked Rotor Torque | 200% |
| Lrc | 7.2X(Code J) |
| Main Terminal Box Hole | 4" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 537 lbs.-sq. ft. |
| Moment Of Inertia (j) | 537 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 894 RPM |
| Mounting | F-1 , Foot Mounted |
| Nde Bearing Seal | Taconite Labyrinth |
| No Load Amps | 240A |
| No. Of Holes | 2 |
| No. Of Poles | 8 |
| Noise | 75 dBA |
| Output | 400 hp |
| Output Rating | 400 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.79 |
| Power Factor 50% | 0.62 |
| Power Factor 75% | 0.73 |
| Power Factor @ 1 % | 95.8 |
| Power Factor @ 50 % | 95 |
| Power Factor @ 75 % | 95.6 |
| Regreasing System | Extended, At Drive End And Non Drive End , Extended, At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 0.67% |
| Space Heater Voltage | 200-240V , 200-240V AC |
| Speed | 894 RPM , 895 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 900 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 2315 lbs.-ft. , 2350 lbs.-ft. |
| Tropicalized Painting | Without |
Shipping Info:
| Ship weight (kg) | 2357.99 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Frequency | Motor Enclosure Design | Service Factor | Hp | Full Load Amps | Frame | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00109ET3E182T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 hp | 4.6/2.3A | 182T | S1 | €1,106.24 | |
 |
00159ET3E184T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 1/2 hp | 5.4/2.7A | 182/4T | S1 | €1,282.62 | |
|
00209ET3E213T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 2 hp | 6.8/3.4A | 213T | S1 | €2,102.66 | |
|
00309ET3E215T-W22 | 230/460V AC | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 3 hp | 9.1/4.55A | 215T | S1 | €2,583.09 | |
 |
00509ET3E254T-W22 | 208-230/460V | 60 Hz | Totally Enclosed Fan Cooled | 1 | 5 hp | 15.2/7.6A | 254T | Continuous | €3,747.26 | |
 |
01509ES3EOW324T-W22 | 208-230/460V | 60 Hz | Totally Enclosed Fan Cooled | 1 | 15 hp | 43-38.9/19.5A | 324T | Continuous | - | RFQ
|
|
01009ES3EOW286T-W22 | 208-230/460V AC | 60 Hz | Totally Enclosed Fan Cooled | 1 | 10 hp | 30.7-27.8/13.9A | 286T | S1 | - | RFQ
|
