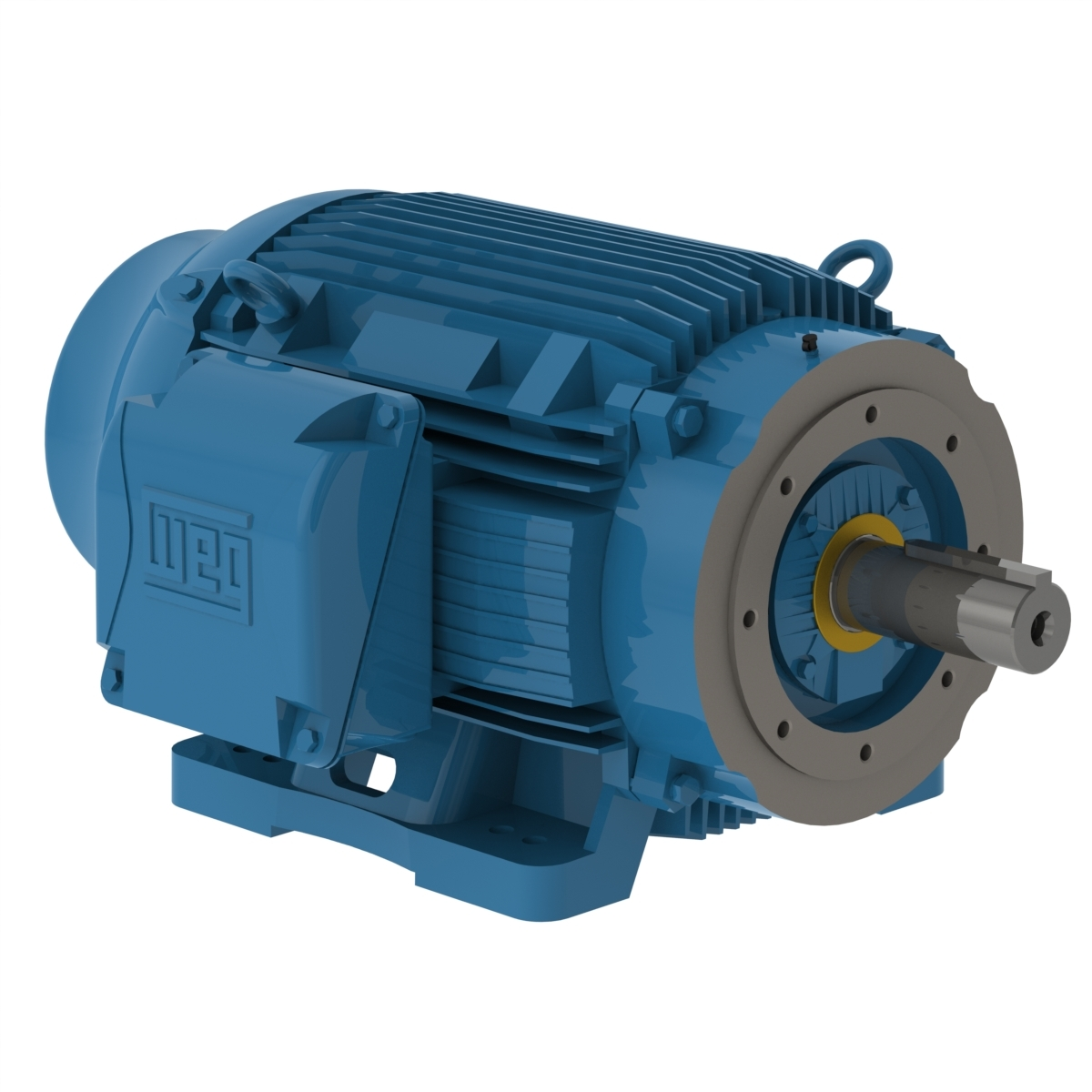

WEG 06012ST3HIE404TC-W22 14369980 Severe Duty Motor, 60 HP, 6 Poles, 404/5TC Frame, 3 Phase, 575 V, 60 Hz, IC411-TEFC, Foot Mounted
1200 rpm
60 hp
404TC
Get it by Tuesday, Apr 14
€13,062.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 229% |
| Breakdown Torque | 229% |
| Cold Locked Rotor Time | 36 sec. |
| Connection Cables Quantity | 3 |
| Design | B |
| Drain | Type T, Threaded |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency @ 100% | 94.5% |
| Efficiency @ 50% | 94.1% |
| Efficiency @ 75% | 94.5% |
| Efficiency At 1 % | 86% |
| Efficiency At 50 % | 74% |
| Efficiency At 75 % | 82% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Conductive Plastic , Plastic |
| Flange | C |
| Flange Type | C |
| Foot Flatness | (0.005 Pol) 0.127 mm , 0.127 mm |
| Frame | 404/5TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 55.6A |
| Grounding Lugs | Double |
| Hot Locked Rotor Time | 20 sec. |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| Joints Seal | Molykote |
| L. R. Amps | 361A |
| L.r. Amperes | 361A |
| Locked Rotor Time (cold) | 36 sec. |
| Locked Rotor Time (hot) | 20 sec. |
| Locked Rotor Torque | 200% |
| Lrc | 6.5X(Code G) |
| Main Terminal Box Hole | 3" |
| Main Terminal Box Hole Size | 3" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 36.9 lbs.-sq. ft. |
| Moment Of Inertia (j) | 36.9 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1185 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 18.4A |
| No. Of Poles | 6 |
| Noise | 68 dBA |
| Noise Level | 68 dBA |
| Output | 60 hp |
| Output Hp | 60 hp |
| Output Rating | 60 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 202E (ISO 12944-C4) |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 50% | 0.74 |
| Power Factor 75% | 0.82 |
| Power Factor At 1 % | 94.5 |
| Power Factor At 50 % | 94.1 |
| Power Factor At 75 % | 94.5 |
| Power Factor_100% | 0.86 |
| Product Datasheet | weg-06012st3hie404tc-w22.pdf |
| Rated Current | 55.6A |
| Rated Speed | 1185 RPM |
| Rated Torque | 266 lbs.-ft. |
| Rated Voltage | 575V , 575V AC |
| Regreasing System | Extended In Stainless Steel, At Drive End And Non-Drive End , Stainless Steel, At Drive End And Non Drive End |
| Rotation | CW/CCW |
| Rpm | 1100-1200 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 1.25% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 263 lbs.-ft. |
| Tropicalized Painting | According To Ieee-841 (96H) |
| Voltage | 575V AC |
Shipping Info:
| Ship weight (kg) | 503.58 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Model | Voltage | Service Factor | Frequency | Motor Enclosure Design | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00112ET3E145T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 1" | 3.5/1.7A | 1160 RPM | Three Phase | €758.54 | |
| 00152ET3E182T-W22 | 230/460/380V | 1.25 | 60 Hz | - | 1 1/2 hp | 5.08/2.54A | 1170 RPM | Three Phase | €914.23 | |
| 00212ET3E184T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 2 hp | 6.44/3.22A | 1170 RPM | Three Phase | €988.08 | |
| 00312ET3E213T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 3 hp | 8.8/4.4A | 1175 RPM | Three Phase | €1,525.74 | |
| 00512ET3E215T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 5 hp | 13.7/6.83A | 1170 RPM | Three Phase | €1,801.89 | |
| 00712ET3E254T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 7 1/2 hp | 19/9.48A | 1175 RPM | Three Phase | €2,634.64 | |
| 01012ET3E256T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 10 hp | 26.6/13.3A | 1175 RPM | Three Phase | €3,044.25 |
