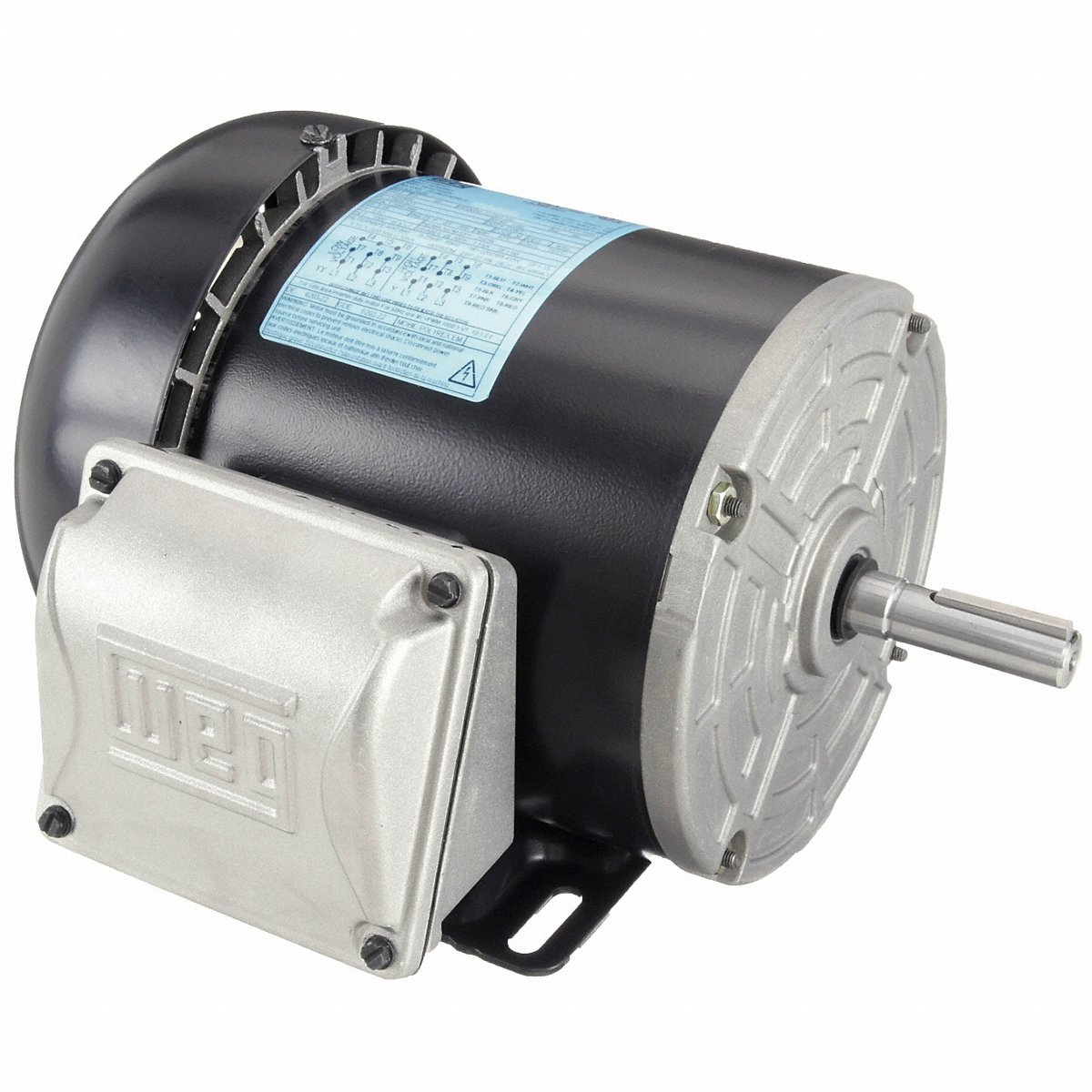

WEG .2518ES3E56-S 14796863 General Purpose Motor, 3 Phase, Tefc 1/4 Hp, 1765 Rpm, 56
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€284.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Bolt Material | Carbon Steel |
| Capacitor Required | No |
| Composition | Steel |
| Duty Cycle | S1 |
| Efficiency | 70% |
| Efficiency Group | Standard |
| Enclosure Type | Tefc |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.04-1.15/0.521A |
| Full Load Amps @ 50hz | 1.08/0.57/1.13/0.564A |
| Green Certification Or Other Recognition | rohs.png |
| Hp | 1/4 hp |
| Hp @ 50hz | 1/4 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 9 1/4" |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1765 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 70% |
| Number Of Poles | 4 |
| Overall Length | 11 1/8" |
| Phase | 3 |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Carbon Steel |
| Ships Factory Direct | No |
| Standards | Csa, Ul |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Warranty | 3 yrs. |
| Weight | 18.4 lbs. |
Shipping Info:
| Ship weight (kg) | 9.77 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 28.26 |
| Ship width (cm) | 31.5 |
| HS code | 8501514040 |
| Country of Origin | US |
Product Variants
| Model | Frequency | Voltage | Service Factor | Full Load Amps | Hp | Nameplate Rpm | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 06018ST3QIE364T-W22 | 60 Hz | 460V | 1 | 68.3A | 60 hp | 1800 RPM | Rigid Base | - | €15,351.09 | |
| 06036ST3QIE364TS-W22 | 60 Hz | 460V AC | 1.25 | 67A | 60 hp | 3600 RPM | Rigid Base | - | €16,499.73 | |
| 07518ST3QIE365T-W22 | 60 Hz | 460V AC | 1.25 | 84.1A | 75 hp | 1800 RPM | Rigid Base | - | €17,138.11 | |
| 07536ST3QIE365TS-W22 | 60 Hz | 460V AC | 1.25 | 81.9A | 75 hp | 3600 RPM | Rigid Base | - | €18,796.23 | |
| 10018ST3QIE405T-W22 | 60 Hz | 460V AC | 1.25 | 111A | 100 hp | 1800 RPM | Rigid Base | - | €23,498.96 | |
| 10018ST3QIERB405T-W2 | 60 Hz | 460V AC | 1.25 | 111A | 100 hp | 1800 RPM | Rigid Base | - | €21,424.16 | |
| 10036ST3QIE405TS-W22 | 60 Hz | 460V AC | 1 | 110A | 100 hp | 3600 RPM | Rigid Base | - | €24,111.79 |
