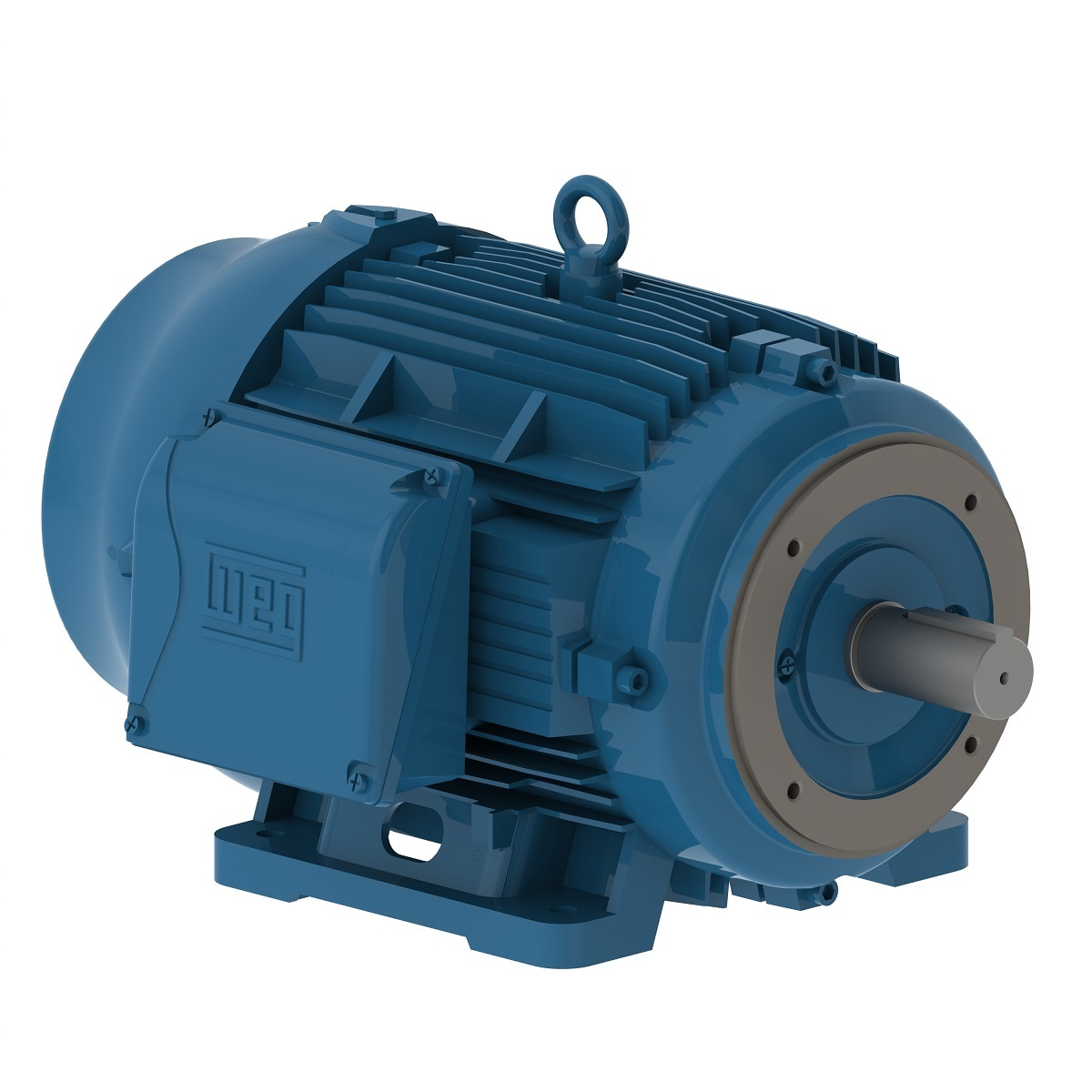

WEG 10018ET3E405TC-W22 12006668 General Purpose Motor, TEFC Cast Iron 404/5TC Frame, 100 HP, 1475 RPM, 415 V
1800 rpm
100 hp
405TC
Get it by Tuesday, Aug 18
€13,951.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 127A |
| Application | General Purpose |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Break Down Torque | 250% |
| Cold Locked Rotor Time | 16 sec. |
| Connection Cables Quantity | 12 |
| Ct Speed Range | 20:1 |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Iec | IP55 |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | C |
| Frame | 404, 5TC , 404/5TC , 405TC |
| Frame Material | Cast Iron |
| Frame Size Nema | NEMA 404/5tc |
| Frequency | 50/60 Hz |
| Full Load Amps | 111A |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| Hp | 100 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | F |
| Inverter Rating | Inverter Duty |
| Kw | 75 kW |
| L. R. Amps | 902A |
| Locked Rotor Time(hot) | 9 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 7.1x(Code H) |
| Main Terminal Box Hole | 3" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 29.9 lbs.-sq. ft. |
| Motor Mounting Type | Foot |
| Mount Arrangement | F1/F2 Capable |
| Mounting | Foot-Mounted, F-1 |
| Nameplate Speed | 1800 RPM |
| Nde Bearing Seal | Yes |
| No Load Amps | 42A |
| No. Of Poles | 4 |
| Noise Level | 64 dBA |
| Output Rating | 75 kW |
| Output Speed | 1780 RPM |
| Overall Length | 39.73 |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Product Datasheet | weg-10018et3e405tc-w22.pdf |
| Rated Speed | 1475 RPM |
| Rated Torque | 356 lbs.-ft. |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 4140 Carbon Steel |
| Slip | 1.67% |
| Speed | 1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Code | 200°C |
| Temp. Rise | 105 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V , 415V |
| Vt Speed Range | 1000:1 |
| Xp Atex Zone | Iic |
Shipping Info:
| Ship weight (kg) | 547.2 |
| Ship length (cm) | 100.91 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
