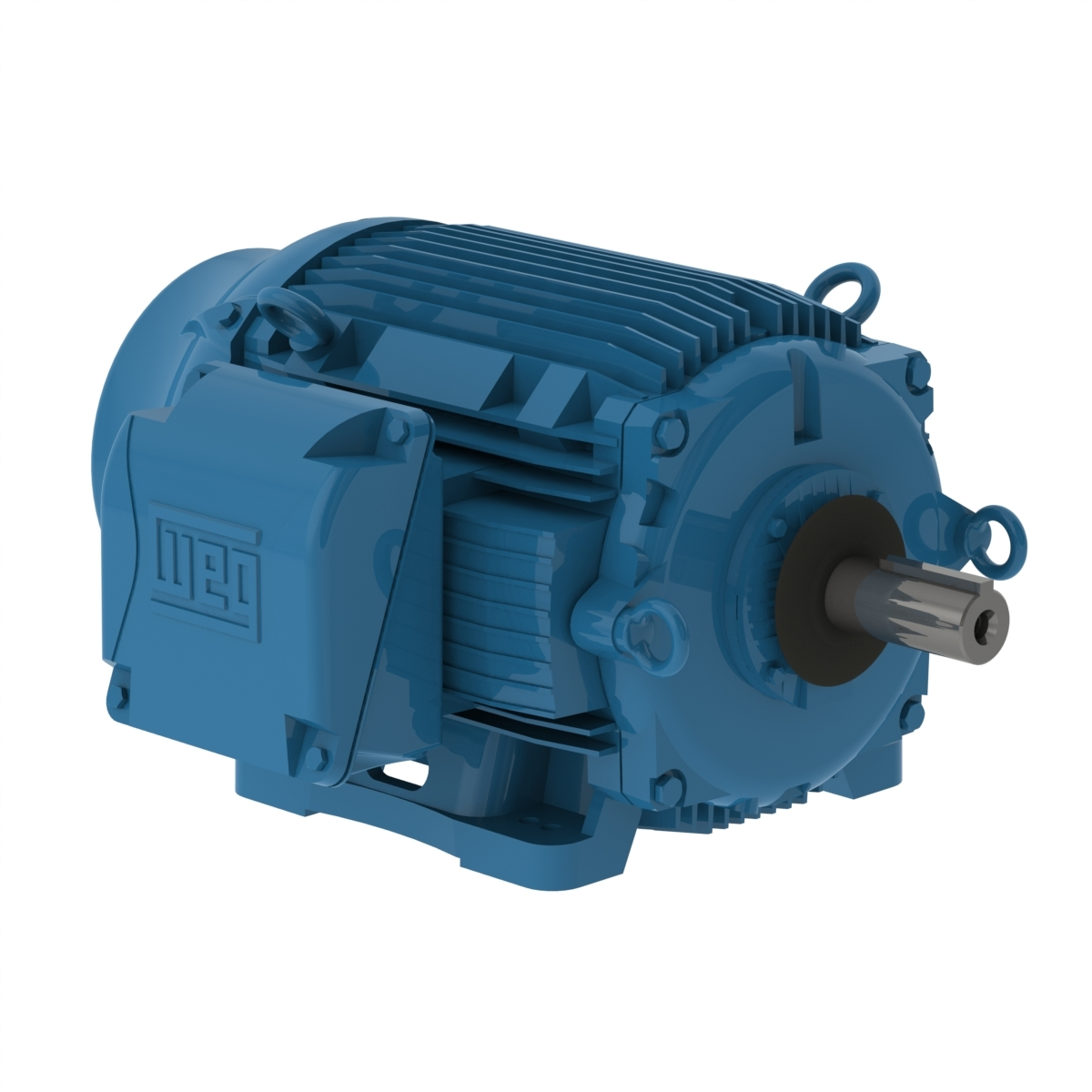

WEG 06018ET3ECT364TF1-W2 14425088 Cooling Tower Motor, 60 HP, 4 Poles, 364/5T Frame, 3 Phase, 230/460 V 60 Hz, IC411-TEFC, Foot Mounted
1800 rpm
60 hp
364TF1
Get it by Tuesday, Aug 18
€9,733.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Tower Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 71.6/143A |
| Application | Cooling Tower |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Body Material | Cast Iron |
| Break Down Torque | 240% |
| Cold Locked Rotor Time | 18 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 12 |
| Ct Speed Range | 20:1 |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 95% |
| Efficiency 50% | 94.1% |
| Efficiency 75% | 94.5% |
| Efficiency @ 100% | 95% |
| Enclosure | IC411 |
| Enclosure Nema Rating | IC411 - TEFC |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 364/5T |
| Frame Material | Cast Iron |
| Frame Size | 364/5T |
| Frequency | 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hp | 60 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| Inverter Rating | Inverter Duty |
| Ip Rating | IP55 |
| Joints Seal | Permatex |
| L. R. Amps | 444/888A , 497A |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time(hot) | 10 sec. , 15 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 6.2x(Code G) |
| Main Terminal Box Hole | 3" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia (j) | 22.4 lbs.-sq. ft. |
| Mounting | F-1 |
| Mounting Arrangement | F1, F2 |
| Mounting Orientation | Horizontal, Vertical |
| Nde Bearing Seal | Yes |
| Nema Mount | With Base |
| No Load Amps | 28/56A |
| No. Of Poles | 4 |
| Noise Level | 67 dBA |
| Output Hp | 60 hp |
| Output Kw | 45 kW |
| Output Rating | 60 hp |
| Output Speed | 1780 RPM |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.83 |
| Power Factor 50% | 0.71 |
| Power Factor 75% | 0.8 |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 1.11% |
| Space Heater Voltage | 110-127/200-240V , 110-127/200-240V AC |
| Speed | 1700-1800 RPM , 1780 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 177 lbs.-ft. |
| Tropicalized Painting | Complete (200H) |
| Voltage | 230/460V , 230/460V AC |
Shipping Info:
| Ship weight (kg) | 454.05 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
