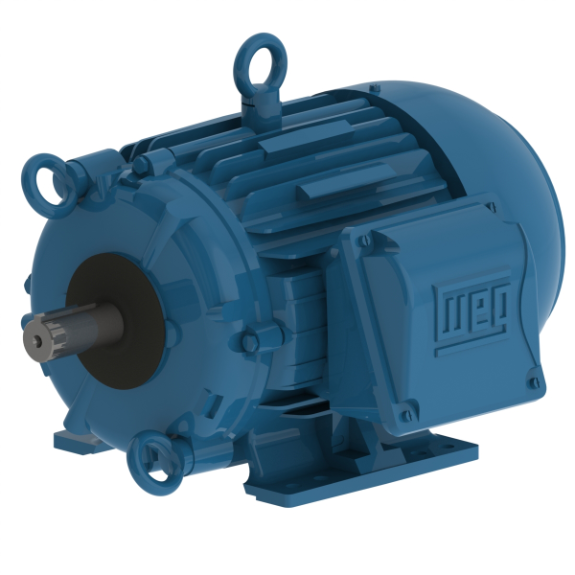

WEG 00312ET3HCT213T-W22 13729966 Cooling Tower Motor, 3 HP, 6 Poles, 213T Frame, 3 Phase, 575 V, 60 Hz, IC411-TEFC, F-2 Foot Mounted
1200 rpm
3 hp
213T
Get it by Wednesday, Aug 26
€1,606.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Tower Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 3.53A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | No |
| Break Down Torque | 270% , 280% |
| Composition | Cast Iron |
| Connection Cables Quantity | 6 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Automatic, Rubber , Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency 50% | 50% |
| Efficiency @ 1 % | 70% |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 213T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 58 sec. |
| Hp | 3 hp |
| Impregnation Method | Double Impregnation Polyester |
| Insulation Class | F |
| Joints Seal | Permatex |
| L. R. Amps | 24.7A |
| Locked Rotor Time(hot) | 58 sec. |
| Locked Rotor Torque | 200% |
| Lrc | 7.0X(Code K) , 7x(Code K) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 1.2 lbs.-sq. ft. |
| Mounting | Foot Mounted , Foot-Mounted, F-2 |
| Nde Bearing Seal | V Ring |
| No Load Amps | 2.04A , 2.2A |
| No. Of Poles | 6 |
| Noise Level | 55 dBA |
| Output Hp | 3 hp |
| Output Power | 2.2 kW |
| Output Rating | 2.2 kW , 3 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL 5009 202E (ISO 12944 - C4) |
| Phase | 3 |
| Power Factor @ 1 % | 89.5 |
| Power Factor @ 50 % | 86.5 |
| Power Factor @ 75 % | 88.5 |
| Rated Voltage | 575V |
| Rotation | CW And CCW , CW, CCW |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Slip | 2.08% |
| Space Heater Voltage | 110-127/200-240V , 110-127/200-240V AC |
| Speed | 1100-1200 RPM , 1175 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Right Position |
| Torque | 13.4 lbs.-ft. |
| Tropicalized Painting | Complete (200H) |
Shipping Info:
| Ship weight (kg) | 68.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00112ET3E145T-W22 | 230/460/380V | 60 Hz | 1.25 | 1" | Totally Enclosed Fan Cooled | 3.5/1.7A | Rigid Base | Three Phase | €758.54 | |
| 00152ET3E182T-W22 | 230/460/380V | 60 Hz | 1.25 | 1 1/2 hp | - | 5.08/2.54A | Rigid Base | Three Phase | €914.23 | |
| 00212ET3E184T-W22 | 230/460/380V | 60 Hz | 1.25 | 2 hp | Totally Enclosed Fan Cooled | 6.44/3.22A | Rigid Base | Three Phase | €988.08 | |
| 00312ET3E213T-W22 | 230/460/380V | 60 Hz | 1.25 | 3 hp | Totally Enclosed Fan Cooled | 8.8/4.4A | Rigid Base | Three Phase | €1,525.74 | |
| 00512ET3E215T-W22 | 230/460/380V | 60 Hz | 1.25 | 5 hp | Totally Enclosed Fan Cooled | 13.7/6.83A | Rigid Base | Three Phase | €1,801.89 | |
| 00712ET3E254T-W22 | 230/460/380V | 60 Hz | 1.25 | 7 1/2 hp | Totally Enclosed Fan Cooled | 19/9.48A | Rigid Base | Three Phase | €2,634.64 | |
| 01012ET3E256T-W22 | 230/460/380V | 60 Hz | 1.25 | 10 hp | Totally Enclosed Fan Cooled | 26.6/13.3A | Rigid Base | Three Phase | €3,044.25 |
