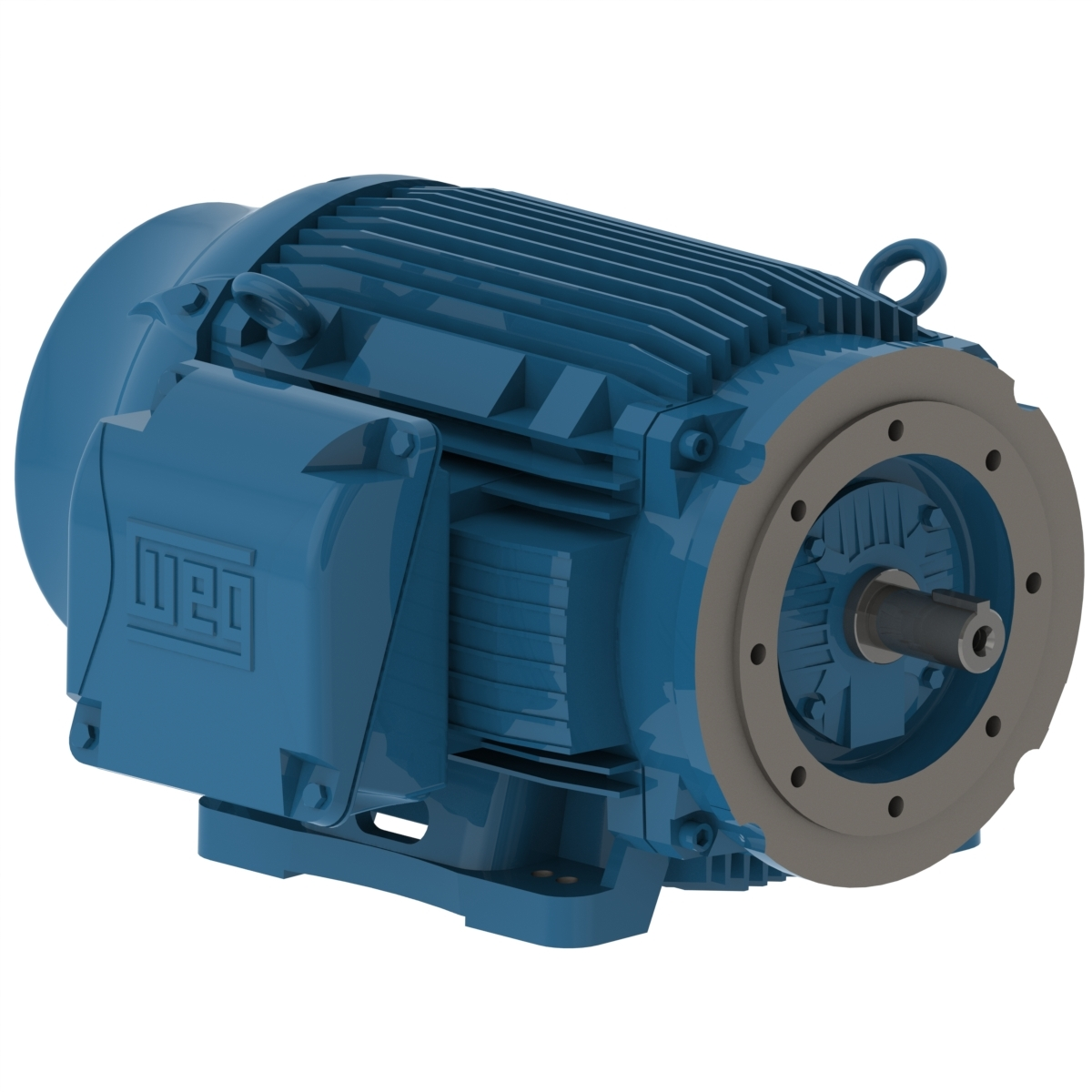

WEG 07518ET3E365TC-W22G 13249041 Pump Motor, 75 HP, 1800 RPM, 208-230/460V, TEFC, 365TC, Footed
1800 rpm
75 hp
365TC
Get it by Wednesday, Aug 26
€11,441.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 174/87.2A , 98.7A |
| Bearing Cap | Yes |
| Break Down Torque | 260% |
| Cold Locked Rotor Time | 18 sec. , 25 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency 50% | 68% |
| Efficiency @ 1 % | 83% |
| Efficiency @ 75 % | 78% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 365T |
| Frame Material | Cast Iron |
| Frequency | 50 Hz , 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hot Locked Rotor Time | 14 sec. |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | F |
| L. R. Amps | 1116/558A , 602A |
| Locked Rotor Time(hot) | 10 sec. |
| Locked Rotor Torque | 240% |
| Lrc | 6.1x(Code G) , 6.4X(Code G) |
| Main Terminal Box Hole Size | 3" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 23.3 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1780 RPM |
| Mounting | F-1 , Foot Mounted |
| Nde Bearing Seal | Yes |
| No Load Amps | 66/33A |
| No. Of Poles | 4 |
| Noise Level | 67 dBA |
| Output | 75 hp |
| Output Rating | 75 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor @ 1 % | 95.4 |
| Power Factor @ 50 % | 94.5 |
| Power Factor @ 75 % | 95 |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW And CCW , CW, CCW |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.11% |
| Speed | 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 105 K , 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 221 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V , 230/460/380V AC , 230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 468.45 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
