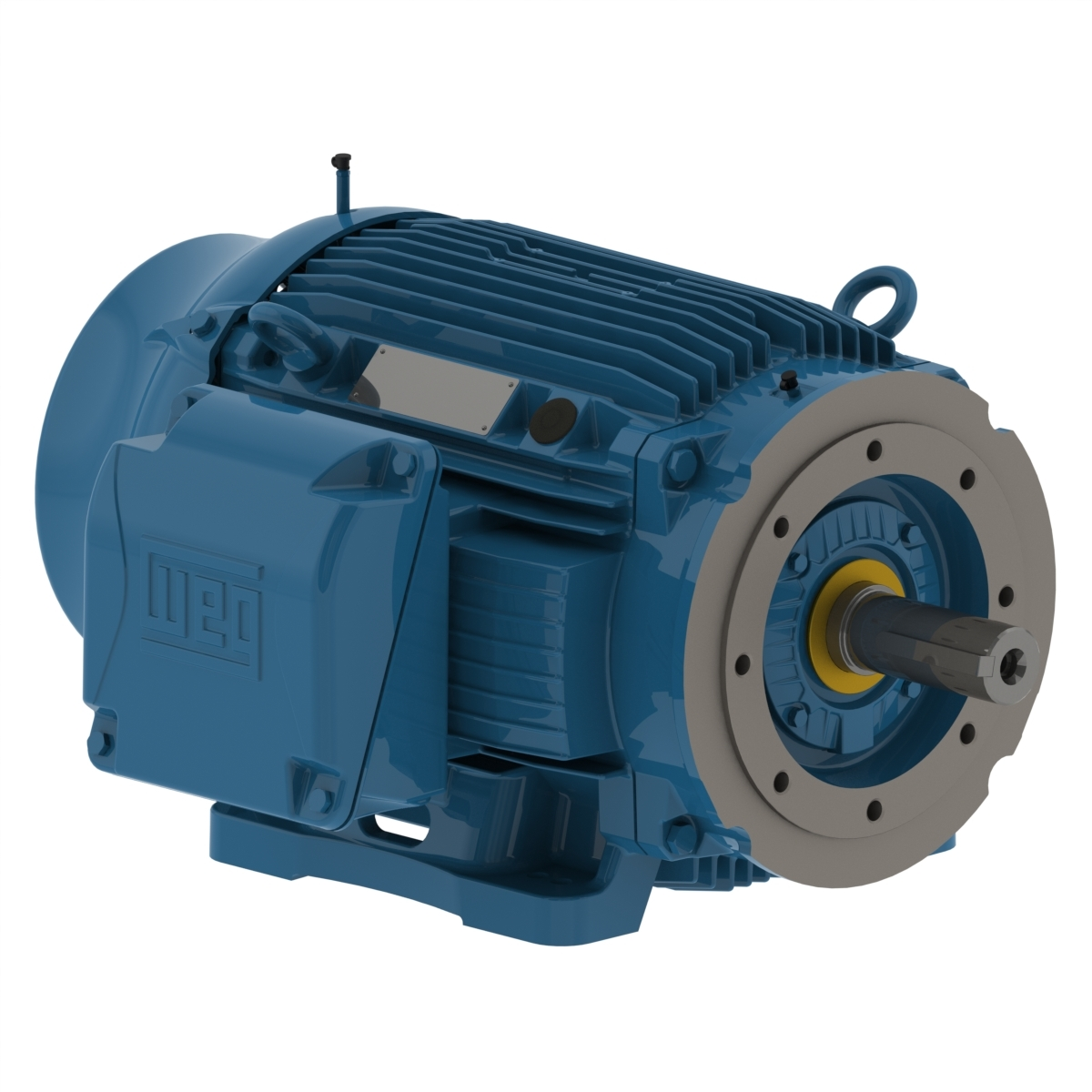

WEG 04012ST3QIE364TC-W22 12679071 Severe Duty Motor, 40 HP, 6 Poles, 364/5TC Frame, 3 Phase, 460 V, 60 Hz, IC411-TEFC, Foot Mounted
1200 rpm
40 hp
365TC
460V
Get it by Friday, Aug 14
€10,322.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 46.5A |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 240% |
| Cold Locked Rotor Time | 32 sec. |
| Connection Cables Quantity | 3 |
| De Bearing Seal | Inpro, Seal |
| Degree Of Protection | IP56 |
| Design | B |
| Drain | Type T, Threaded |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency 50% | 93.6% |
| Efficiency 75% | 93.6% |
| Efficiency @ 100% | 94.1% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Conductive Plastic |
| Flange | C |
| Flange Type | C |
| Foot Flatness | 0.127 mm |
| Frame | 364/5TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 46.5A |
| Grade | Grade 1010/20 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hp | 40 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| Joints Seal | Molykote |
| L. R. Amps | 298A |
| Locked Rotor Time (cold) | 37 sec. |
| Locked Rotor Time(hot) | 18 sec. , 21 sec. |
| Locked Rotor Torque | 200% |
| Lrc | 6x(Code G) |
| Main Terminal Box Hole | 3" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia (j) | 29 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | F-1 , Foot Mounted |
| Nde Bearing Seal | Inpro, Seal |
| No Load Amps | 16.5A |
| No. Of Poles | 6 |
| Noise | 66 dBA |
| Noise Level | 66 dBA |
| Output Rating | 40 hp |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.86 |
| Power Factor 50% | 0.73 |
| Power Factor 75% | 0.82 |
| Product Datasheet | weg-04012st3qie364tc-w22.pdf |
| Regreasing System | Extended In Stainless Steel, At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 1.42% |
| Speed | 1100-1200 RPM , 1183 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 176 lbs.-ft. |
| Tropicalized Painting | According To IEEE-841 (96H) |
| Voltage | 460V , 460V AC |
Shipping Info:
| Ship weight (kg) | 464.4 |
| Ship height (cm) | 48.26 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 45.72 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Voltage | Frequency | Service Factor | Full Load Amps | Hp | Frame | Duty Cycle | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ST3QIE143TC-W22 | 460V AC | 60 Hz | 1.25 | 1.41A | 1 hp | 143TC | S1 | 40°C | €1,883.18 | |
| 00112ST3QIE145TC-W22 | 460V AC | 60 Hz | 1.25 | 1.73A | 1 hp | 145TC | S1 | 40°C | €2,082.04 | |
| 00158ST3QIE145TC-W22 | 460V AC | 60 Hz | 1.25 | 2.02A | 1 1/2 hp | 145TC | S1 | 40°C | €1,846.14 | |
| 00152ST3QIE182TC-W22 | 460V | 60 Hz | 1 | 2.54A | 1 1/2 hp | 182TC | Continuous | 40°C | €2,618.85 | |
| 00218ST3QIE145TC-W22 | 460V AC | 60 Hz | 1.25 | 2.61A | 2 hp | 145TC | S1 | 40°C | €1,921.47 | |
| 00212ST3QIE184TC-W22 | 460V AC | 60 Hz | 1.25 | 3.22A | 2 hp | 184TC | S1 | 40°C | €2,842.63 | |
| 00318ST3QIE182TC-W22 | 460V AC | 60 Hz | 1.25 | 3.91A | 3 hp | 182TC | S1 | 40°C | €2,421.19 |
