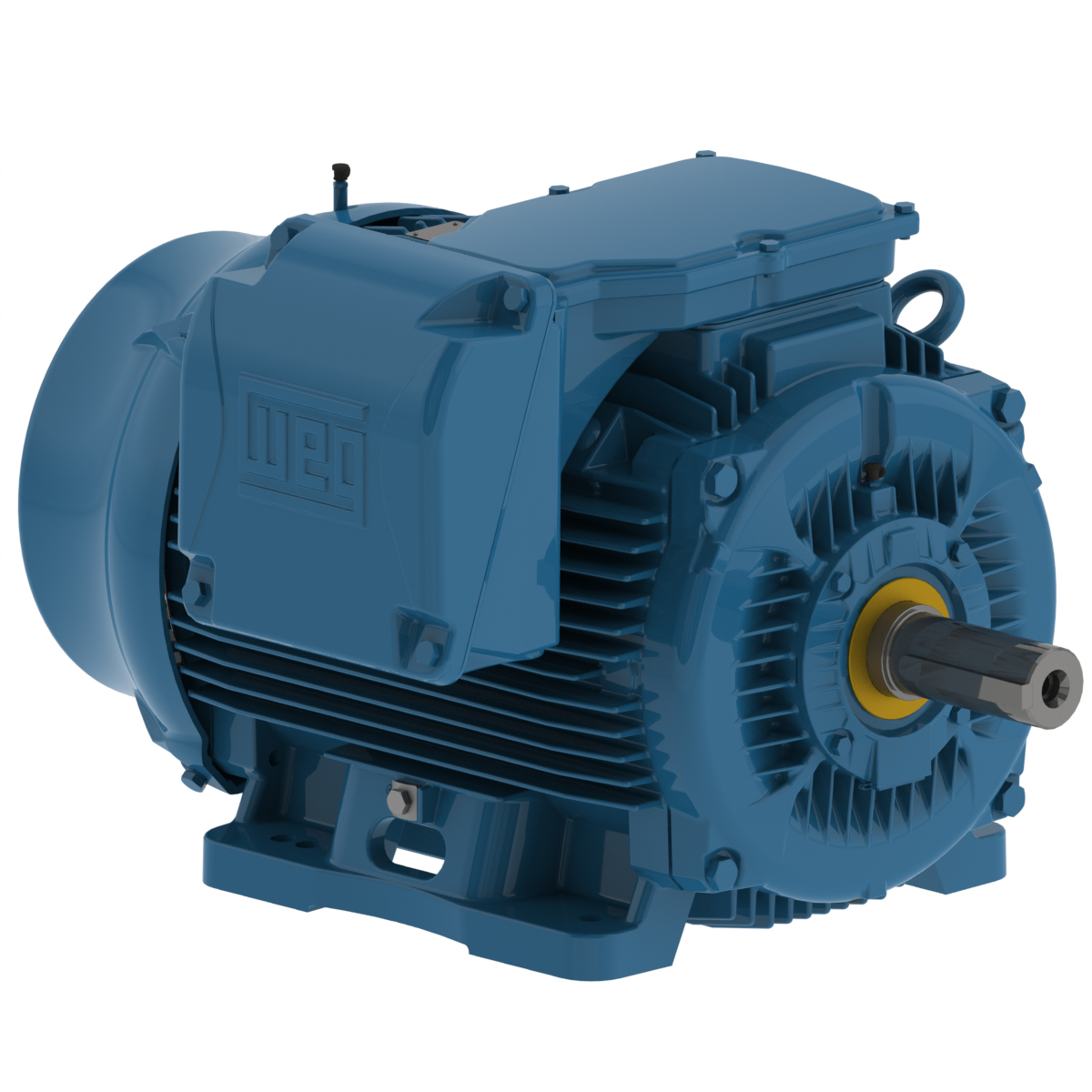

WEG 15009ST3QIERB447T-W2 Electric Motor, 150Hp, 60Hz, 900 Rpm | BB7GRY

WEG 15009ST3QIERB447T-W2 13337942 Electric Motor, 150Hp, 60Hz, 900 Rpm

Item: BB7GRYModel: 15009ST3QIERB447T-W2Cross Ref: 13337942
Check Availability
In Stock

Get it by Tuesday, Feb 24

€39,814.34 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 210%
Cold Locked Rotor Time 27 sec.
Connection Cables Quantity 3
Design B
Drain Type T, Threaded
Drip Cover Without
Duty Cycle S1
Efficiency At 1 % 79%
Efficiency At 50 % 64%
Efficiency At 75 % 74%
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange Type Without
Foot Flatness (0.005 Pol) 0.127 mm
Frame 445/7T
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Double
Hot Locked Rotor Time 15 sec.
Impregnation Method Constant Resin Flow
Insulation Class Class F
Joints Seal Molykote
L. R. Amps 1110A
Locked Rotor Torque 190%
Lrc 6.0X(Code G)
Main Terminal Box Hole Type NPT
Moment Of Inertia 125 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 890 RPM
Mounting Foot Mounted
No Load Amps 75A
No. Of Holes 2
No. Of Poles 8
Noise Level 63 dBA
Output 150 hp
Output Rating 150 hp
Overload Protector Without Overload Protector
Painting RAL5009 202E (ISO 12944-C4)
Phase 3
Power Factor At 1 % 94.5
Power Factor At 50 % 94.5
Power Factor At 75 % 94.5
Rated Torque 885 lbs.-ft.
Rated Voltage 460V
Regreasing System Stainless Steel, At Drive End And Non Drive End
Rotation CW/CCW
Rpm 900 RPM
Service Factor 1.15
Shaft Locking Device With
Shaft Material Carbon Steel
Shaft Material Grade Grade 4140
Slip 1.11%
Starting Method Direct On Line
Synchronous Speed 900 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting According To Ieee-841 (96H)
Voltage 460V AC

Shipping Info:

Ship weight (kg) 1077.08
Ship height (cm)2.54
Ship length (cm)123.7
Ship width (cm)2.54

Product Variants

ProductModelService FactorFrequencyVoltageFull Load AmpsHpNameplate RpmRpmFramePrice
WEG 00118ST3QIE143TC-W22 Motor, 3 Phase 1 Hp, 1760 460v 143tc Eff 85.5 | AA4JEB 12N928 00118ST3QIE143TC-W221.2560 Hz460V AC1.41A1 hp1760 RPM1760 RPM143TC€1,883.18
WEG 00112ST3QIE145TC-W22 Motor, 3 Phase 1 Hp, 1150 460v 145tc Eff 82.5 | AA4JEC 12N929 00112ST3QIE145TC-W221.2560 Hz460V AC1.73A1 hp1160 RPM1100-1200 RPM145TC€2,082.04
WEG 00158ST3QIE145TC-W22 Motor, 3 Phase 1.5 Hp, 1755 460v 145tc Eff 86.5 | AA4JED 12N930 00158ST3QIE145TC-W221.2560 Hz460V AC2.02A1 1/2 hp1755 RPM1755 RPM145TC€1,846.14
WEG 00152ST3QIE182TC-W22 Motor, 3 Phase 1.5 Hp, 1165 460v 182tc Eff 87.5 | AA4JEE 12N931 00152ST3QIE182TC-W22160 Hz460V2.54A1 1/2 hp1170 RPM1100-1200 RPM182TC€2,618.85
WEG 00218ST3QIE145TC-W22 Motor, 3 Phase 2 Hp, 1750 460v 145tc Eff 86.5 | AA4JEF 12N932 00218ST3QIE145TC-W221.2560 Hz460V AC2.61A2 hp1755 RPM1750 RPM145TC€1,921.47
WEG 00212ST3QIE184TC-W22 Motor, 3 Phase 2 Hp, 1165 460v 184tc Eff 88.5 | AA4JEG 12N933 00212ST3QIE184TC-W221.25-460V AC3.22A2 hp1170 RPM1100-1200 RPM184TC€2,842.63
WEG 00318ST3QIE182TC-W22 Motor, 3 Phase 3 Hp, 1760 460v 182tc Eff 89.5 | AA4JEH 12N934 00318ST3QIE182TC-W221.2560 Hz460V AC3.91A3 hp1760 RPM1760 RPM182TC€2,421.19
