WEG IEEE 841 General Purpose Three Phase Motors, TEFC
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X| Style | Model | Voltage | Frequency | Service Factor | Full Load Amps | Hp | Frame | Amps | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

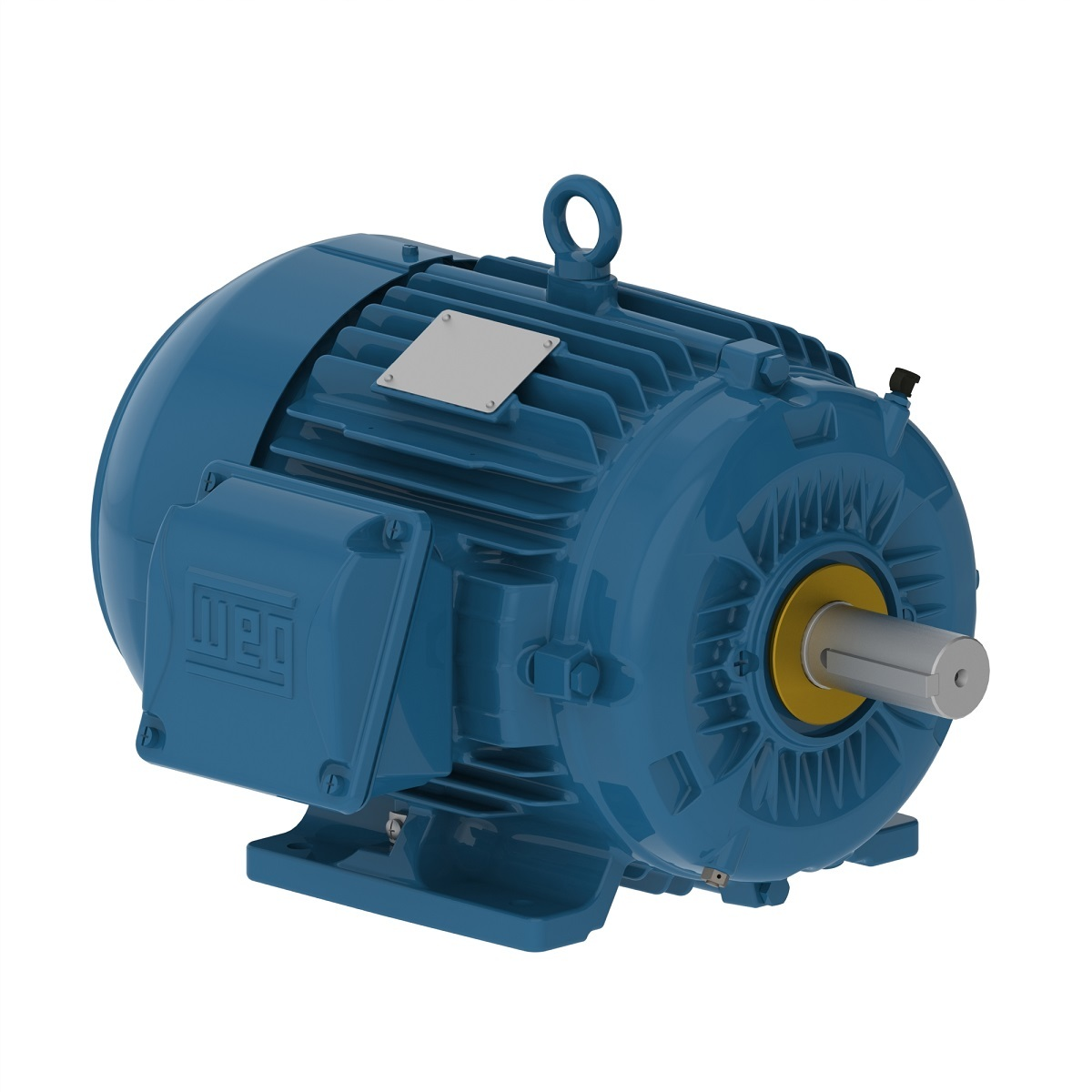

| A | 01018ST3HIE215T-W22 | - | - | - | - | 10 hp | 215T | 10A | - | €2,034.61 | |
| A | 00152ST3HIE182T-W22 | - | - | - | - | - | 184T | 23A | - | €1,534.30 | |

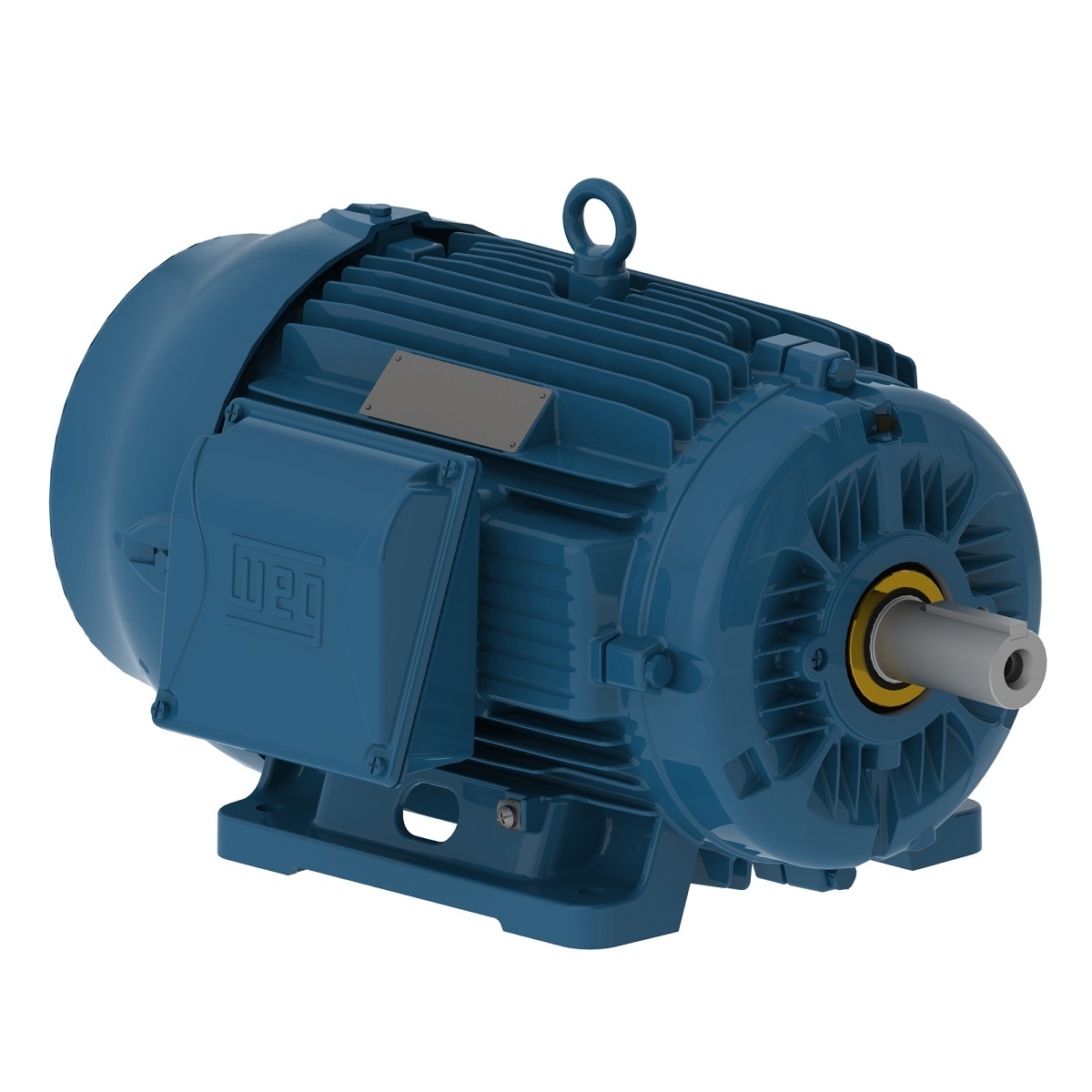

| B | 01509ST3QIE286T-W22 | 415V | - | - | - | 15 hp | 286T | 22.4A | - | €7,723.45 | |

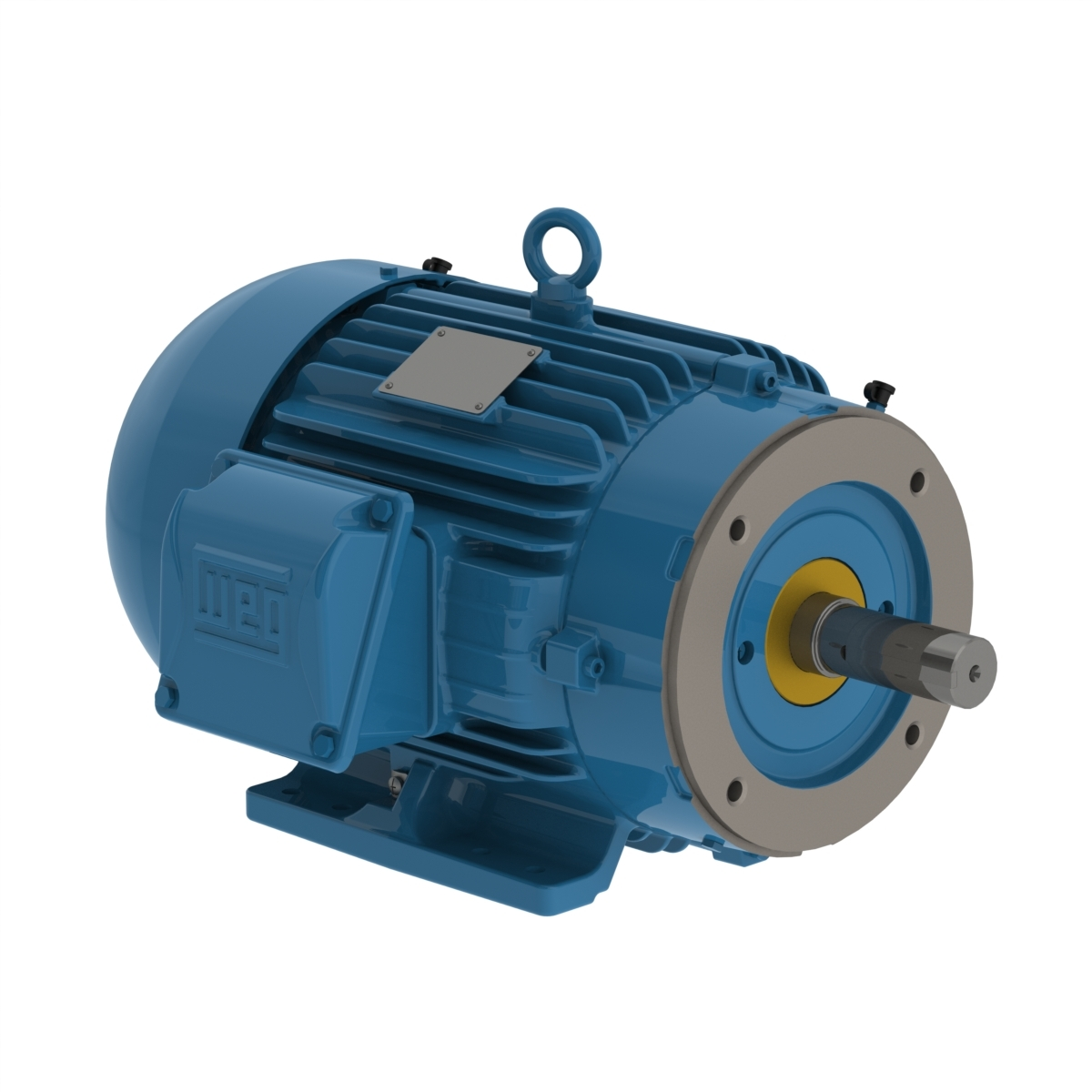

| C | 00309ST3QIE215TC-W22 | 415V | - | - | - | 3 hp | 215TC | 5.13A | - | €3,425.30 | |
| D | 00318ST3QIER182TC-W2 | 415V | - | - | - | - | 184TC | 4.43A | - | €1,582.02 | |
| E | 00152ST3QIE182TC-W22 | 460V | 60 Hz | 1 | 2.54A | 1 1/2 hp | 182TC | 2.64A | 40°C | €2,618.85 | |
| F | 04018ST3QIE324T-W22 | 460V | 60 Hz | 1 | 47.1A | 40 hp | 324T | 52.8A | 40°C | €8,166.22 | |
| G | 30012ST3QIERB449T-W2 | 460V | 60 Hz | - | - | 300 hp | 447T | - | - | €33,949.74 | |
| H | 45018ST3QIE449T-W22 | 460V | - | - | - | - | 449T | - | - | €39,349.23 | |
| I | 00336ST3QIE182T-W22 | 460V | 60 Hz | 1.25 | 3.6A | 3 hp | 182T | 3.63A | 40°C | €2,402.10 | |
| H | 00318ST3QIE182T-W22 | 460V | 60 Hz | 1.25 | 3.9A | 3 hp | 182T | 3.91A | 40°C | €2,194.50 | |
| J | 02018ST3QIE256TC-W22 | 460V | 60 Hz | 1.25 | 24.1A | 20 hp | 256TC | 24.1A | 40°C | €4,995.02 | |
| F | 01018ST3QIE215T-W22 | 460V | 60 Hz | 1 | 12.4A | 10 hp | 215T | 14.1A | 40°C | €3,287.28 | |
| F | 01012ST3QIE256T-W22 | 460V | 60 Hz | 1 | 12.9A | 10 hp | 256T | 14.4A | 40°C | €5,836.86 | |
| G | 35012ST3QIERB449T-W2 | 460V | 60 Hz | - | - | 350 hp | 449T | - | - | €40,022.20 | |
| K | 01536ST3QIE254T-W22 | 460V | 60 Hz | 1 | 17.2A | 15 hp | 254T | 19.3A | 40°C | €4,213.06 | |
| F | 05018ST3QIE326T-W22 | 460V | 60 Hz | 1 | 59.2A | 50 hp | 326T | 66.3A | 40°C | €8,633.75 | |
| F | 06018ST3QIE364T-W22 | 460V | 60 Hz | 1 | 68.3A | 60 hp | 364/5T | 80.2A | 40°C | €15,351.09 | |
| J | 03012ST3QIE326TC-W22 | 460V | 60 Hz | 1 | 35.8A | 30 hp | 326TC | 40.7A | 40°C | €9,790.18 | |
| F | 02036ST3QIE256T-W22 | 460V | 60 Hz | 1 | 23.2A | 20 hp | 256T | 26A | 40°C | €4,971.75 | |
| L | 00518ST3QIER184TC-W2 | 460V | 60 Hz | 1.25 | - | - | 184TC | 6.49A | -20°C to +40°C | €1,763.36 | |
| M | 35012ST3QIE449T-W22 | 460V AC | 60 Hz | 1.15 | - | - | L447/9T | 415A | -20°C to +40°C | €55,829.63 | |
| N | 02536ST3QIE284TSC-W2 | 460V AC | 60 Hz | 1.25 | 28.5A | 25 hp | 284/6TSC | 29.1A | -20°C to +40°C | €4,124.70 | |
| O | 07512ST3QIE405T-W22 | 460V AC | 60 Hz | 1.25 | 84.9A | 75 hp | 404/5T | 84.9A | -20°C to +40°C | €14,738.92 | |
| P | 25012ST3QIE449T-W22 | 460V AC | 60 Hz | 1.15 | 292A | 250 hp | 447/9T | 292A | -20°C to +40°C | €45,152.70 | |
| O | 10009ST3QIERB445T-W2 | 460V AC | 60 Hz | 1.25 | - | - | 444/5T | 127A | -20°C to +40°C | €28,273.85 | |
| L | 00718ST3QIER213TC-W2 | 460V AC | 60 Hz | 1.25 | - | - | - | 9.18A | -20°C to +40°C | €2,053.10 | |
| F | 05036ST3QIE326TS-W22 | 460V AC | 60 Hz | 1.25 | 56.1A | 50 hp | 326TS | 56.7A | 40°C | €10,969.84 | |
| N | 02009ST3QIE324TC-W22 | 460V AC | 60 Hz | 1.25 | - | - | 324/6TC | 28.3A | -20°C to +40°C | €9,730.48 | |
| J | 00509ST3QIE254TC-W22 | 460V AC | 60 Hz | 1.25 | - | - | 254/6TC | 7.69A | -20°C to +40°C | €5,075.24 | |
| Q | 00159ST3QIE184TC-W22 | 460V AC | 60 Hz | 1.25 | 2.7A | 1 1/2 hp | 182/4TC | 2.7A | -20°C to +40°C | €2,420.72 | |

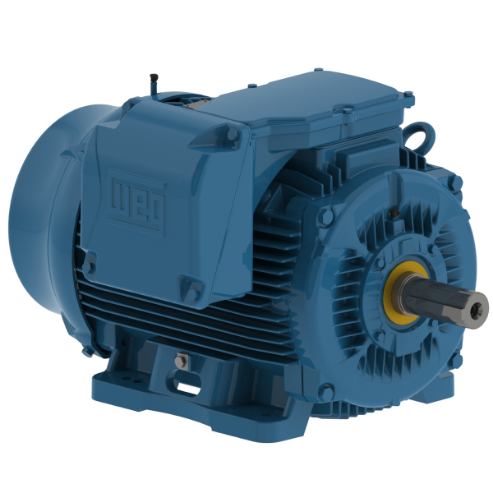

| R | 20012ST3QIE449T-W22 | 460V AC | 60 Hz | 1 | 237A | 200 hp | 447/9T | 237A | -20°C to +40°C | €31,568.52 | |
| O | 05012ST3QIE365T-W22 | 460V AC | 60 Hz | 1.25 | 57.4A | 50 hp | 364/5T | 57.4A | 40°C | €17,801.70 | |
| S | 15012ST3QIE447T-W22 | 460V AC | 60 Hz | 1 | 176A | 150 hp | 445/7T | 196A | -20°C to +40°C | €26,555.49 | |
| T | 00118ST3QIER143TC-W2 | 460V AC | 60 Hz | 1.25 | - | - | 143TC | 1.47A | -20°C to +40°C | €1,193.08 | |
| O | 04009ST3QIE365T-W22 | 460V AC | 60 Hz | 1 | 50A | 40 hp | 364/5T | 58.1A | -20°C to +40°C | €17,079.32 | |
| J | 05036ST3QIE326TSC-W2 | 460V AC | 60 Hz | 1.25 | - | - | 324/6TSC | 56.7A | -20°C to +40°C | €7,096.82 | |
| Q | 01036ST3QIE215TC-W22 | 460V AC | 60 Hz | 1 | 11.6A | 10 hp | 213/5T | 13.4A | -20°C to +40°C | €2,312.05 | |
| N | 02509ST3QIE326TC-W22 | 460V AC | 60 Hz | 1 | 35.9A | 25 hp | 324/6T | 41.1A | -20°C to +40°C | €9,613.26 | |
| E | 01518ST3QIE254TC-W22 | 460V AC | 60 Hz | 1.25 | 18A | 15 hp | 254TC | 18A | 40°C | €4,367.04 | |
| N | 01509ST3QIE286TC-W22 | 460V AC | 60 Hz | 1 | 19.4A | 15 hp | 284/6T | 19.6A | -20°C to +40°C | €7,952.56 | |
| J | 01536ST3QIE254TC-W22 | 460V AC | 60 Hz | 1.25 | 17.2A | - | 254/6TC | 17.2A | -20°C to +40°C | €2,945.55 | |
| Q | 00736ST3QIE213TC-W22 | 460V AC | 60 Hz | 1.25 | 8.76A | - | 213/5TC | 8.87A | -20°C to +40°C | €2,129.92 | |
| O | 07512ST3QIERB405T-W2 | 460V AC | 60 Hz | 1.25 | - | - | 404/5T | 84.9A | -20°C to +40°C | €14,738.92 | |
| U | 05012ST3QIE365TC-W22 | 460V AC | 60 Hz | 1.25 | 57.4A | 50 hp | 364/5TC | 57.4A | -20°C to +40°C | €11,162.45 | |
| J | 04018ST3QIE324TC-W22 | 460V AC | 60 Hz | 1.25 | 48.2A | 40 hp | 324/6TC | 47.1A | -20°C to +40°C | €5,632.77 | |
| U | 05009ST3QIE404TC-W22 | 460V AC | 60 Hz | 1.25 | 60A | 50 hp | 404/5TC | 60.2A | -20°C to +40°C | €21,061.55 | |
| O | 12512ST3QIE445T-W22 | 460V AC | 60 Hz | 1.15 | 143A | 125 hp | 444/5T | 143A | -20°C to +40°C | €23,092.43 | |
| I | 00109ST3QIE182T-W22 | 460V AC | 60 Hz | 1.25 | - | - | 182/4T | 2.3A | -20°C to +40°C | €2,333.49 | |
| U | 03009ST3QIE364TC-W22 | 460V AC | 60 Hz | 1.25 | 37A | 30 hp | 364/5TC | 38.1A | -20°C to +40°C | €15,492.71 | |
| V | 04012ST3QIE364TC-W22 | 460V AC | 60 Hz | 1.25 | 46.5A | 40 hp | 364/5TC | 46.5A | -20°C to +40°C | €10,322.74 | |
| W | 15009ST3QIERB447T-W2 | 460V AC | 60 Hz | 1.15 | - | - | 445/7T | 185A | -20°C to +40°C | €39,814.34 | |
| O | 03009ST3QIE364T-W22 | 460V AC | 60 Hz | 1.25 | 37A | - | 364/5T | 38.1A | -20°C to +40°C | €15,063.12 | |
| O | 07509ST3QIE444T-W22 | 460V AC | 60 Hz | 1.25 | 93A | 75 hp | 444/5T | 93.4A | -20°C to +40°C | €26,871.67 | |
| I | 00309ST3QIE215T-W22 | 460V AC | 60 Hz | 1.25 | 4.56A | - | 213/5T | 4.61A | -20°C to +40°C | €3,332.81 | |
| S | 12509ST3QIERB447T-W2 | 460V AC | 60 Hz | 1.15 | - | - | 445/7T | 151A | -20°C to +40°C | €34,061.28 | |
| P | 20009ST3QIE449T-W22 | 460V AC | 60 Hz | 1.15 | 242A | 200 hp | L447/9T | 242A | -20°C to +40°C | €65,748.93 | |
| Q | 00536ST3QIE184TC-W22 | 460V AC | 60 Hz | 1.25 | 5.9A | - | 182/4TC | 5.9A | -20°C to +40°C | €1,782.46 | |
| X | 00236ST3QIE145TC-W22 | 460V AC | 60 Hz | 1.25 | 2.56A | - | 143/5TC | 2.56A | -20°C to +40°C | €1,280.17 | |
| X | 00156ST3QIE143TC-W22 | 460V AC | 60 Hz | 1.25 | 1.96A | - | 143/5TC | 1.96A | -20°C to +40°C | €1,230.07 | |
| J | 02036ST3QIE256TC-W22 | 460V AC | 60 Hz | 1.25 | 23.2A | - | 254/6TC | 23.2A | -20°C to +40°C | €3,557.10 |
