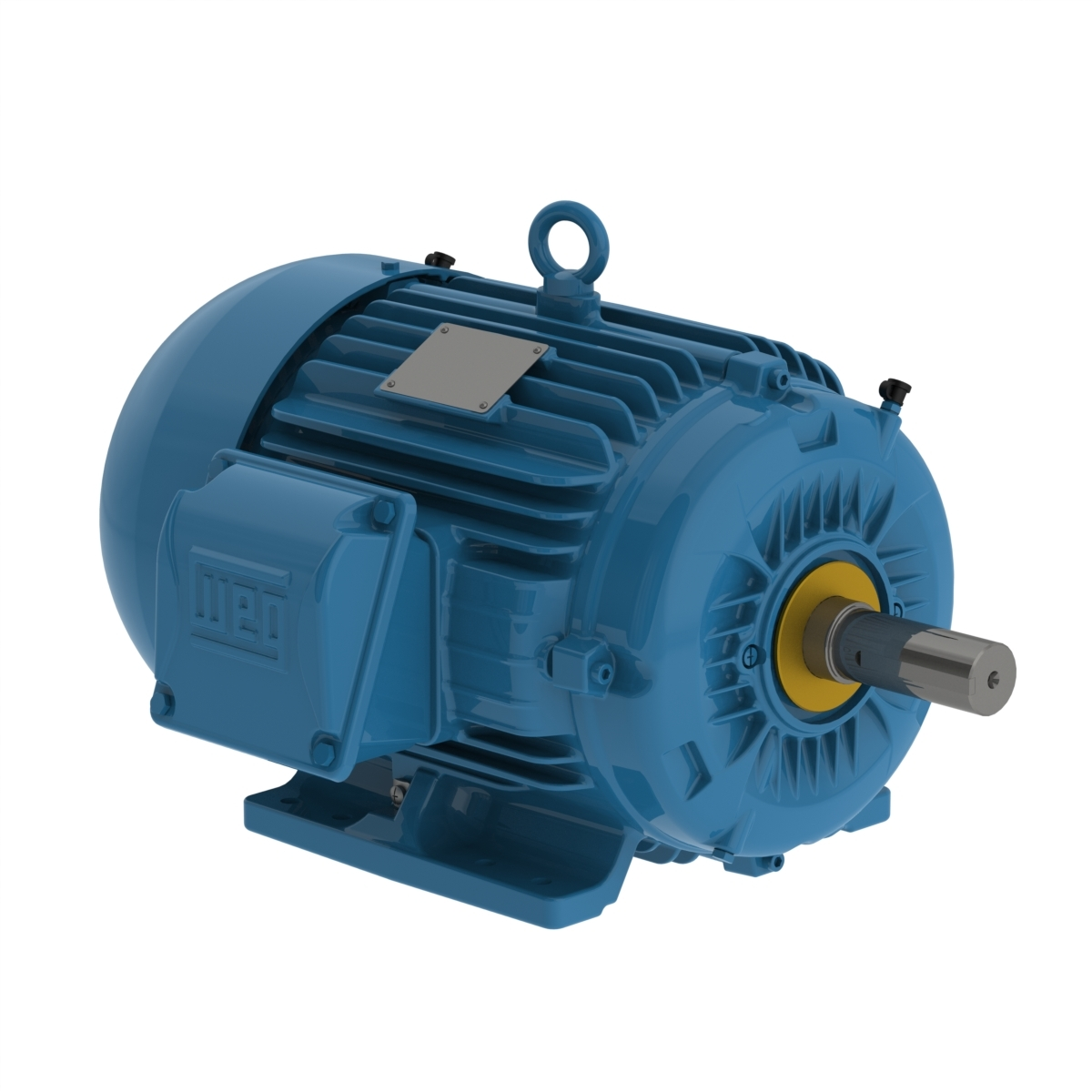

WEG 00209ST3QIE213T-W22 Electric Motor, 2Hp, 60Hz, 870 Rpm | BB7AZJ

WEG 00209ST3QIE213T-W22 14325587 Severe Duty Motor, 2 HP, 8 Poles, 213/5T Frame, 3 Phase, 460 V, 60 Hz, IC411-TEFC, Foot Mounted

Item: BB7AZJModel: 00209ST3QIE213T-W22Cross Ref: 14325587
Check Availability
In Stock

Get it by Monday, Mar 2

€3,141.93 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 290%
Cold Locked Rotor Time 70 sec.
Connection Cables Quantity 3
Design B
Drain Type T, Threaded
Drip Cover Without
Duty Cycle S1
Efficiency 50%
Efficiency At 1 % 65%
Efficiency At 50 % 45%
Efficiency At 75 % 55%
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange Type Without
Foot Flatness (0.005 Pol) 0.127 mm
Frame 213/5T
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Double
Hot Locked Rotor Time 39 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
Joints Seal Molykote
L. R. Amps 23.4A
Locked Rotor Torque 220%
Lrc 6.9X(Code L)
Main Terminal Box Hole Size 1"
Main Terminal Box Hole Type NPT
Moment Of Inertia 1.79 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 875 RPM
Mounting Foot Mounted
No Load Amps 2.3A
No. Of Poles 8
Noise Level 52 dBA
Output 2 hp
Output Hp 2 hp
Output Rating 2 hp
Overload Protector Without Overload Protector
Painting RAL5009 202E (ISO 12944-C4)
Phase 3
Power Factor At 1 % 85.5
Power Factor At 50 % 82.5
Power Factor At 75 % 84
Product Datasheet weg-00209st3qie213t-w22.pdf
Rated Current 3.39A
Rated Torque 12 lbs.-ft.
Rated Voltage 460V
Regreasing System Stainless Steel, At Drive End And Non Drive End
Rotation CW/CCW
Service Factor 1.25
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.78%
Starting Method Direct On Line
Synchronous Speed 900 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 11.9 lbs.-ft.
Tropicalized Painting According To Ieee-841 (96H)
Voltage 460V AC

Shipping Info:

Ship weight (kg) 82.4
Ship height (cm)2.54
Ship length (cm)49.58
Ship width (cm)2.54
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelService FactorFrequencyVoltageFull Load AmpsHpNameplate RpmRpmFramePrice
WEG 00118ST3QIE143TC-W22 Motor, 3 Phase 1 Hp, 1760 460v 143tc Eff 85.5 | AA4JEB 12N928 00118ST3QIE143TC-W221.2560 Hz460V AC1.41A1 hp1760 RPM1760 RPM143TC€1,883.18
WEG 00112ST3QIE145TC-W22 Motor, 3 Phase 1 Hp, 1150 460v 145tc Eff 82.5 | AA4JEC 12N929 00112ST3QIE145TC-W221.2560 Hz460V AC1.73A1 hp1160 RPM1100-1200 RPM145TC€2,082.04
WEG 00158ST3QIE145TC-W22 Motor, 3 Phase 1.5 Hp, 1755 460v 145tc Eff 86.5 | AA4JED 12N930 00158ST3QIE145TC-W221.2560 Hz460V AC2.02A1 1/2 hp1755 RPM1755 RPM145TC€1,846.14
WEG 00152ST3QIE182TC-W22 Motor, 3 Phase 1.5 Hp, 1165 460v 182tc Eff 87.5 | AA4JEE 12N931 00152ST3QIE182TC-W22160 Hz460V2.54A1 1/2 hp1170 RPM1100-1200 RPM182TC€2,618.85
WEG 00218ST3QIE145TC-W22 Motor, 3 Phase 2 Hp, 1750 460v 145tc Eff 86.5 | AA4JEF 12N932 00218ST3QIE145TC-W221.2560 Hz460V AC2.61A2 hp1755 RPM1750 RPM145TC€1,921.47
WEG 00212ST3QIE184TC-W22 Motor, 3 Phase 2 Hp, 1165 460v 184tc Eff 88.5 | AA4JEG 12N933 00212ST3QIE184TC-W221.25-460V AC3.22A2 hp1170 RPM1100-1200 RPM184TC€2,842.63
WEG 00318ST3QIE182TC-W22 Motor, 3 Phase 3 Hp, 1760 460v 182tc Eff 89.5 | AA4JEH 12N934 00318ST3QIE182TC-W221.2560 Hz460V AC3.91A3 hp1760 RPM1760 RPM182TC€2,421.19
