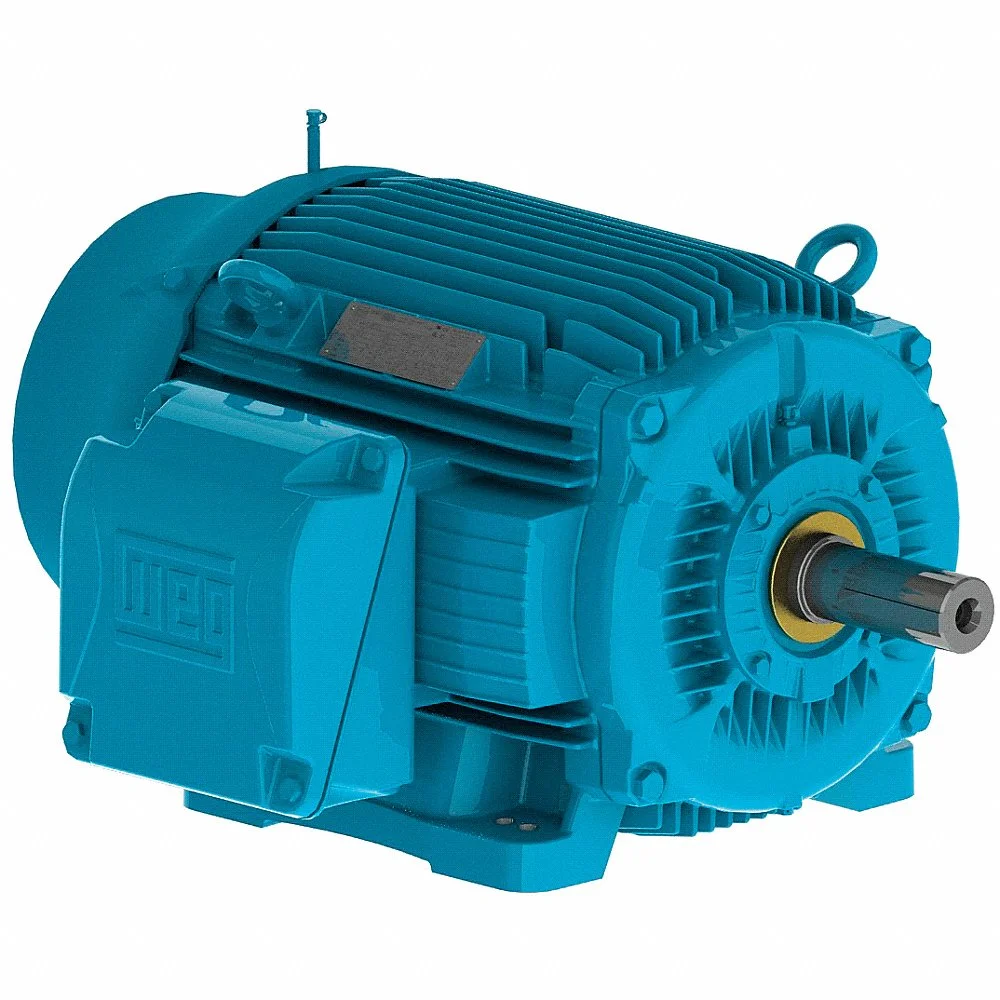

WEG 03036ST3QIE286TS-W22 11431928 Motor, 3 Phase, 30 Hp, 3535 460V, 286ts Eff 91.7
3600 rpm
30 hp
286TS
460V
Get it by Friday, Aug 14
5.00% off
€6,470.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C , 40°C |
| Amps | 34.6A |
| Balancing Method | 1/2 Key |
| Base Type | Rigid Base |
| Bearing Cap | Yes |
| Bearing Type | Ball |
| Bolt Material | Carbon Steel |
| Break Down Torque | 250% |
| Cable Press Material | Sem |
| Cc Number | CC029A |
| Cold Locked Rotor Time | 21 sec. |
| Connection Cables Quantity | 3 |
| De Bearing Seal | Inpro/Seal |
| Degree Of Protection | IP56 |
| Design | B |
| Drain | Type T, Threaded |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency 50% | 91.7% |
| Efficiency 75% | 91.7% |
| Efficiency @ 100% | 91.7% |
| Efficiency Group | Premium |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Conductive Plastic |
| Flange | Without |
| Foot Flatness | 0.127 mm |
| Frame | 284/6TS , 286TS |
| Frame Material | Cast Iron |
| Frequency | 50 Hz , 60 Hz |
| Frequency | 60 Hz |
| Full Load Amps | 33.8A |
| Full Load Amps @ 50 Hz | 31.3/32.5/34.2/37.8/39.6/42A |
| Grade | Grade 1010/20 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hp | 30 hp |
| Hp @ 50 Hz | 25 hp, 30 hp |
| Impregnation Method | Dip and Bake Polyester |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Joints Seal | Molykote |
| L. R. Amps | 218A , 237A |
| Length Less Shaft | 23 5/16" |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time(hot) | 12 sec. , 15 sec. |
| Locked Rotor Torque | 240% |
| Lrc | 6.2x(Code G) |
| Main Terminal Box Hole | 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Max. Ambient Temp. | 104°F |
| Moment Of Inertia (j) | 3.37 lbs.-sq. ft. |
| Motor Application | IEEE Motor |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | F-1 |
| Mounting Type | Rigid Base |
| Nameplate Speed | 3535 RPM |
| Nde Bearing Seal | Inpro/Seal |
| Nema Design | NEMA B |
| No Load Amps | 9.9A |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Noise | 72 dBA |
| Noise Level | 72 dBA |
| Nominal Efficiency | 91.7% |
| Number | Cc029A |
| Output Rating | 22 kW |
| Overall Length | 26 9/16" |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.87 |
| Power Factor 50% | 0.77 |
| Power Factor 75% | 0.85 |
| Product Datasheet | weg-03036st3qie286ts-w22.pdf |
| Regreasing System | Stainless Steel, At Drive End And Non-Drive End |
| Removable Base | Regreasable Bearings |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 3 1/4" |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 1.42% |
| Speed | 3001-3600 RPM , 3400-3600 RPM , 3549 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Thermal Protection | None |
| Torque | 44 lbs.-ft. , 53.5 lbs.-ft. |
| Tropicalized Painting | According To IEEE-841 (96H) |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V , 460V AC |
Shipping Info:
| Ship weight (kg) | 176.85 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 67.47 |
| Ship width (cm) | 55.88 |
| HS code | 8501528040 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Voltage | Frequency | Service Factor | Full Load Amps | Hp | Frame | Duty Cycle | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ST3QIE143TC-W22 | 460V AC | 60 Hz | 1.25 | 1.41A | 1 hp | 143TC | S1 | 40°C | €1,883.18 | |
| 00112ST3QIE145TC-W22 | 460V AC | 60 Hz | 1.25 | 1.73A | 1 hp | 145TC | S1 | 40°C | €2,082.04 | |
| 00158ST3QIE145TC-W22 | 460V AC | 60 Hz | 1.25 | 2.02A | 1 1/2 hp | 145TC | S1 | 40°C | €1,846.14 | |
| 00152ST3QIE182TC-W22 | 460V | 60 Hz | 1 | 2.54A | 1 1/2 hp | 182TC | Continuous | 40°C | €2,618.85 | |
| 00218ST3QIE145TC-W22 | 460V AC | 60 Hz | 1.25 | 2.61A | 2 hp | 145TC | S1 | 40°C | €1,921.47 | |
| 00212ST3QIE184TC-W22 | 460V AC | 60 Hz | 1.25 | 3.22A | 2 hp | 184TC | S1 | 40°C | €2,842.63 | |
| 00318ST3QIE182TC-W22 | 460V AC | 60 Hz | 1.25 | 3.91A | 3 hp | 182TC | S1 | 40°C | €2,421.19 |
