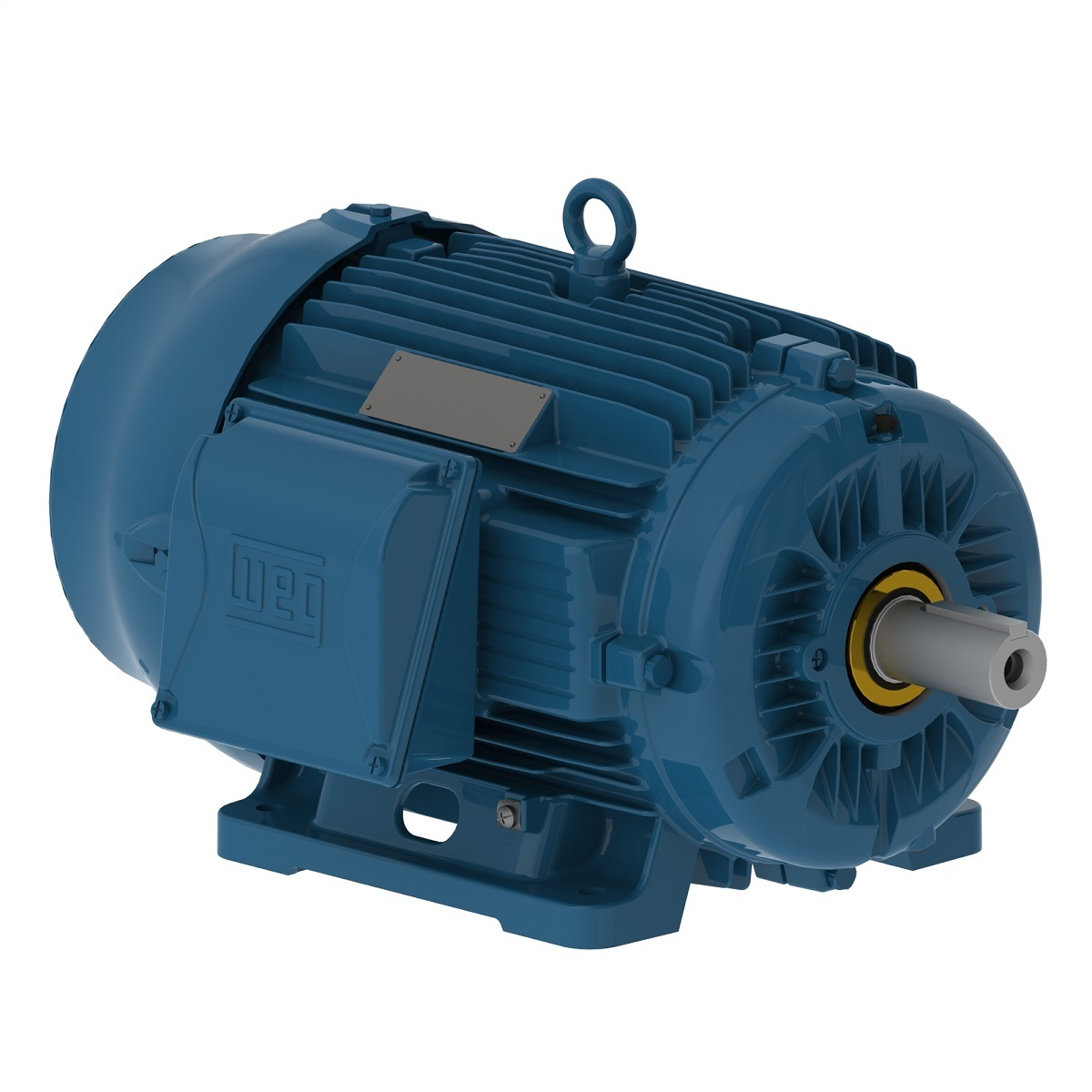

WEG 03036ST3HIE286TS-W22 13906220 Severe Duty Motor, 30 HP, 2 Poles, 284/6TS Frame, 3 Phase, 575 V, 60 Hz, IC411-TEFC, Foot Mounted
3600 rpm
30 hp
286TS
575V
Get it by Monday, Aug 31
€4,391.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 27.7A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Connection Cables Quantity | 3 |
| De Bearing Seal | Inpro, Seal |
| Degree Of Protection | IP56 |
| Design | B |
| Drain | Type T, Threaded |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency 50% | 77% , 91.7% |
| Efficiency 75% | 91.7% |
| Efficiency @ 1 % | 87% |
| Efficiency @ 100% | 91.7% |
| Efficiency @ 75 % | 85% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Conductive Plastic , Plastic |
| Flange | Without |
| Flange Type | Without |
| Foot Flatness | (0.005 Pol) 0.127 mm , 0.127 mm |
| Frame | 284/6TS |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 27A |
| Grade | Grade 1010/20 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hot Locked Rotor Time | 15 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Joints Seal | Molykote |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Torque | 240% |
| Lrc | 6.3X(Code G) |
| Main Terminal Box Hole | 1 1/2" |
| Main Terminal Box Hole Size | 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 3.37 lbs.-sq. ft. |
| Moment Of Inertia (j) | 3.37 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3540 RPM |
| Mounting | F-1 , Foot Mounted |
| Nde Bearing Seal | Inpro, Seal |
| No Load Amps | 7.92A |
| No. Of Poles | 2 |
| Noise | 72 dBA |
| Noise Level | 72 dBA |
| Output | 30 hp |
| Output Hp | 30 hp |
| Output Rating | 30 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 202E (ISO 12944-C4) |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.87 |
| Power Factor 50% | 0.77 |
| Power Factor 75% | 0.85 |
| Power Factor @ 1 % | 91.7 |
| Power Factor @ 50 % | 91.7 |
| Power Factor @ 75 % | 91.7 |
| Product Datasheet | weg-03036st3hie286ts-w22.pdf |
| Regreasing System | Stainless Steel, At Drive End And Non Drive End , Stainless Steel, At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.42% , 1.67% |
| Speed | 3400-3600 RPM , 3549 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 44 lbs.-ft. , 44.5 lbs.-ft. |
| Tropicalized Painting | According To Ieee-841 (96H) |
Shipping Info:
| Ship weight (kg) | 194.85 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 115.06 |
| Ship width (cm) | 85.09 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Voltage | Frequency | Service Factor | Full Load Amps | Hp | Frame | Duty Cycle | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ST3QIE143TC-W22 | 460V AC | 60 Hz | 1.25 | 1.41A | 1 hp | 143TC | S1 | 40°C | €1,883.18 | |
| 00112ST3QIE145TC-W22 | 460V AC | 60 Hz | 1.25 | 1.73A | 1 hp | 145TC | S1 | 40°C | €2,082.04 | |
| 00158ST3QIE145TC-W22 | 460V AC | 60 Hz | 1.25 | 2.02A | 1 1/2 hp | 145TC | S1 | 40°C | €1,846.14 | |
| 00152ST3QIE182TC-W22 | 460V | 60 Hz | 1 | 2.54A | 1 1/2 hp | 182TC | Continuous | 40°C | €2,618.85 | |
| 00218ST3QIE145TC-W22 | 460V AC | 60 Hz | 1.25 | 2.61A | 2 hp | 145TC | S1 | 40°C | €1,921.47 | |
| 00212ST3QIE184TC-W22 | 460V AC | 60 Hz | 1.25 | 3.22A | 2 hp | 184TC | S1 | 40°C | €2,842.63 | |
| 00318ST3QIE182TC-W22 | 460V AC | 60 Hz | 1.25 | 3.91A | 3 hp | 182TC | S1 | 40°C | €2,421.19 |
