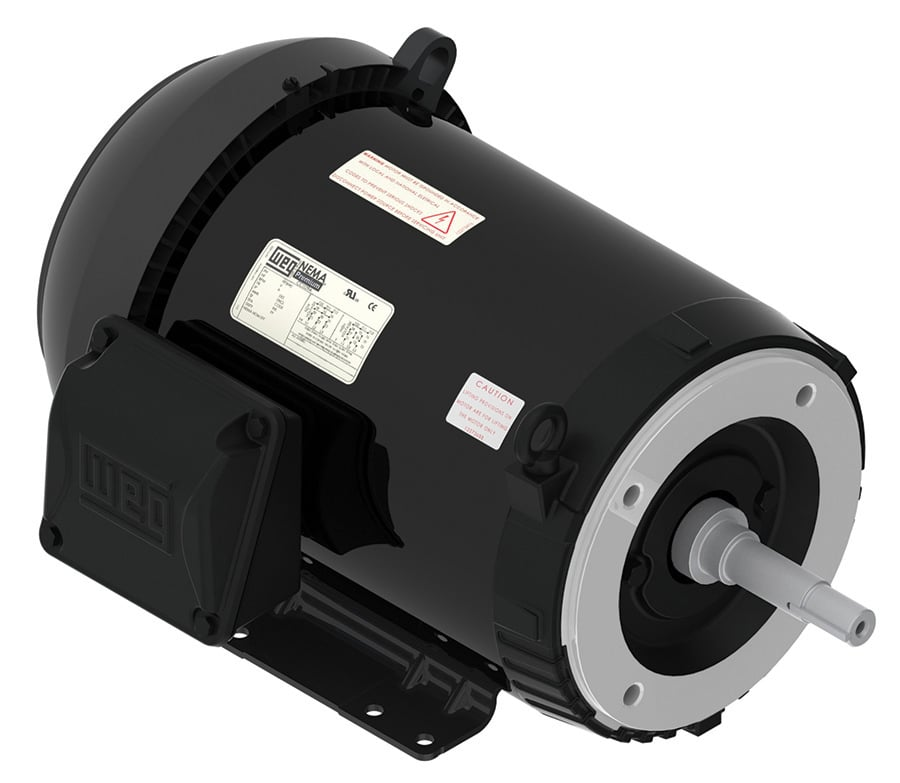

WEG 02018ET3E256JP-S 13507670 Pump Motor, 20 HP, 1800 RPM, 208/230/460 V, 3 Phase, TEFC, 254/6JP Frame, Footed, Close Coupled Pump
1800 rpm
20 hp
208/230/460V
256JP
Get it by Friday, Apr 3
€3,361.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Application | Closed Coupled |
| Body Design | Rolled Steel |
| Ct Speed Range | 4:1 |
| Efficiency | 93% |
| Enclosure Iec | IP55 |
| Enclosure Type | Tefc |
| Frame | 254JP |
| Frame Size | 256JP |
| Frequency | 50/60 Hz |
| Horsepower | 20 hp |
| Hz | 60 Hz |
| Inverter Rating | Inverter Ready |
| Mounting Arrangement | F1 |
| Nema Frame | NEMA 254-6JP |
| Nema Mount | C Face With Base |
| Output Hp | 20 hp, 15 hp |
| Output Kw | 15/11 kW |
| Output Rpm | 1765/1470 RPM |
| Phase | 3 |
| Product Datasheet | weg-02018et3e256jp-s.pdf |
| Replaces | 02018EP3E256JP-S |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Temp Code | T3 = 200°C |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 121.95 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 70.41 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Product | Model | Voltage | Frame | Service Factor | Hp | Efficiency | Output Hp | Synchronous Speed | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

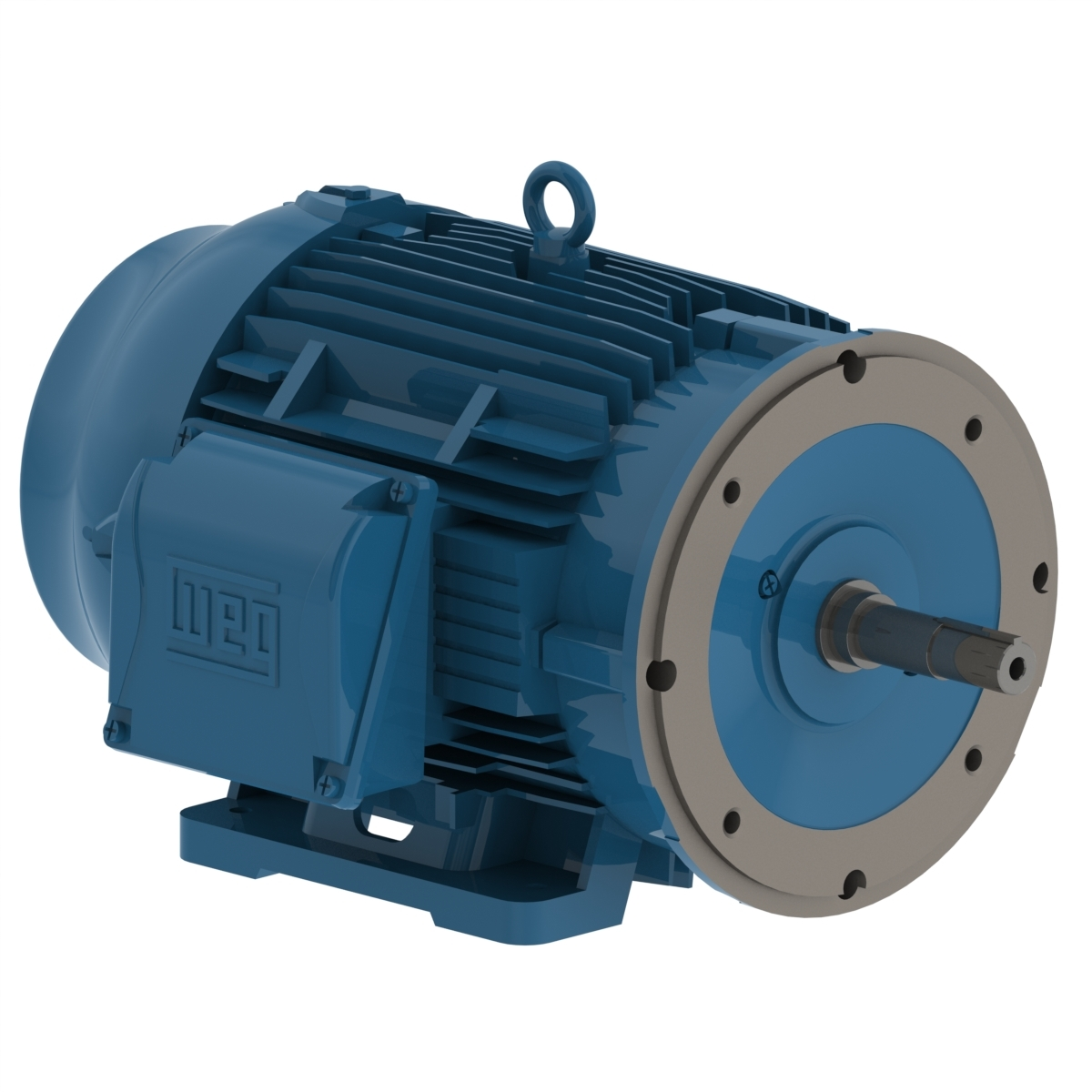

02512ET3E324JM-W22 | 230/460/380V AC | 326JM | 1.25 | 25 hp | 50% | 25 hp, 20 hp | 1200 RPM | 14/28A | €6,353.33 | |
|
01536EP3E254JM-W22 | 208/230/460V AC | 254JM | 1.25 | 15 hp | 50% | - | 3600 RPM | 4.6/9.2A | €2,345.57 | |
 |

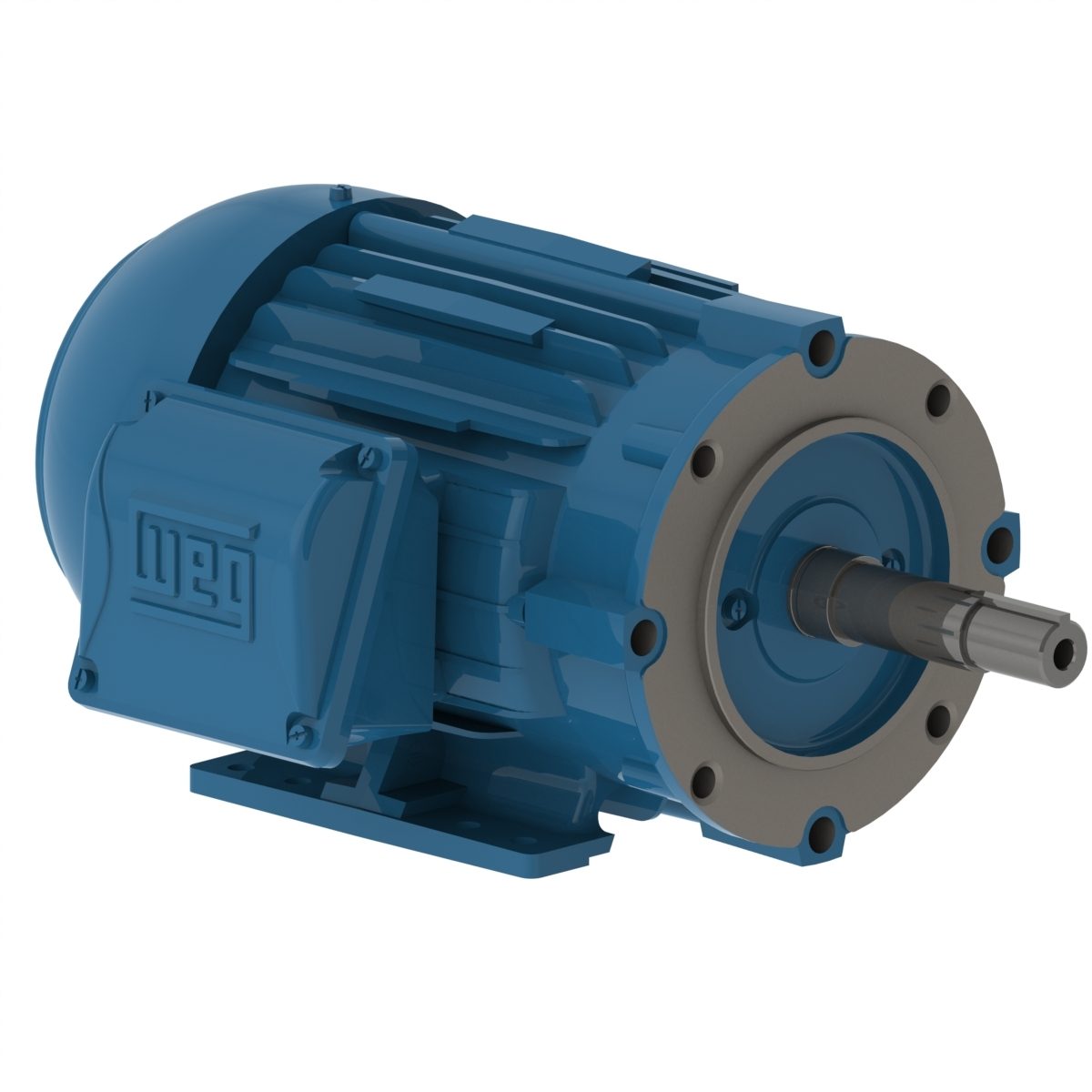

00236ET3E145JM-W22 | 208/230/460V AC | 143JM | 1 | 2 hp | 50% | 2 hp | 3600 RPM | 0.99/1.98A | €814.87 | |
 |
01518ET3E254JM-S | 230/460/190-220/380-415V AC | 254JM | 1.15 | 15 hp | 92.4% | 15 hp | 1800 RPM | 8.65/17.3A | €3,016.06 | |
 |
02012ET3E286JP-W22 | 208-230/460/380V AC | 284JP | 1 | - | 50% | 20 hp | 1200 RPM | 9.5/16.4-19A | €5,745.04 | |
|
02012ET3E286JM-W22 | 230/460/380V AC | 284JM | 1.25 | - | 50% | 20 hp | 1200 RPM | 9.5/19A | €5,659.13 | |
|
01512ET3E284JM-W22 | 230/460/380V AC | 286JM | 1.25 | - | 50% | 15 hp | 1200 RPM | 7/14A | €4,522.38 |
