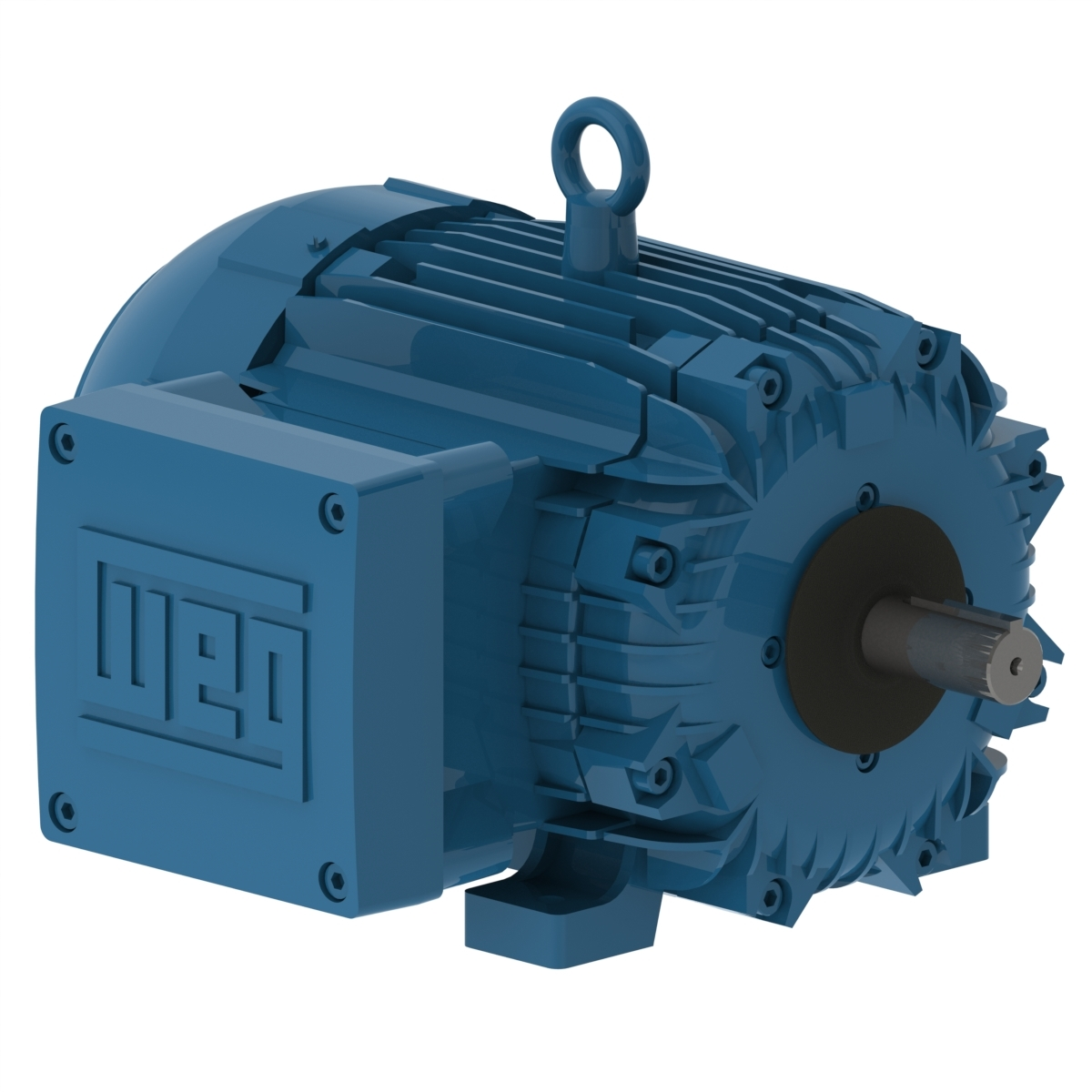

WEG 01018XT3H215T Electric Motor, 10Hp, 60Hz, 1765 Rpm | BB3AVD

WEG 01018XT3H215T 14485092 Electric Motor, 10Hp, 60Hz, 1765 Rpm

Item: BB3AVDModel: 01018XT3H215TCross Ref: 14485092
Check Availability
In Stock

Get it by Friday, Dec 19

€2,308.59 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Hazardous Location Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 270%
Cold Locked Rotor Time 27 sec.
Connection Cables Quantity 6
Cooling IC411
Design B
Drip Cover Without
Duty Cycle S1
Efficiency 50%
Efficiency @ 100% 91.7%
Efficiency @ 50% 90.2%
Efficiency At 1 % 81%
Efficiency At 50 % 62%
Efficiency At 75 % 75%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Without
Frame L215T
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Single
Horsepower 10 hp
Hot Locked Rotor Time 15 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 66A
Locked Rotor Torque 210%
Lrc 6.5X(Code H)
Main Terminal Box Hole Size 1"
Main Terminal Box Hole Type NPT
Moment Of Inertia 1.34 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Shaft Rotation Clockwise/Counter Clockwise
Mounting Type Foot Mounted
Nameplate Rpm 1765 RPM
No Load Amps 4.4A
No. Of Poles 4
Noise Level 58 dBA
Output 10 hp
Output Rating 7.5 kW
Overload Protector Without Overload Protector
Painting RAL 5009 202P (ISO 12944 - C4)
Phase 3
Power Factor At 1 % 91.7
Power Factor At 50 % 90.2
Power Factor At 75 % 91
Rated Current 10.2A
Rated Torque 29.8 lbs.-ft.
Rated Voltage 575V AC
Rotation CW/CCW
Rpm 1765 RPM
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 1.94%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 575V AC
Winding Thermal Protection Thermostat - 2 wires 1 per phase 155°C

Shipping Info:

Ship weight (kg) 95.85
Ship height (cm)31.5
Ship length (cm)46.99
Ship width (cm)37.34
Country of OriginUS

Product Variants

ProductModelVoltageFrameNameplate RpmHpMotor ApplicationHazardous Location ClassSynchronous SpeedFlangePrice
WEG 00118XT3E143T Hazardous Location Motor, 3 Phase, Tefc 1 Hp, T4 | AE2NMW 4YPR7 00118XT3E143T230/460/380V143T1765 RPM1 hpHazardous Location1 C, D / 2 F, G1800 RPMWithout€1,315.11
WEG 00156XT3E143T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMX 4YPR9 00156XT3E143T230/460/380V143T3500 RPM1 1/2 hpHazardous Location1 C, D / 2 F, G3600 RPMWithout€1,328.90
WEG 00158XT3E145T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMY 4YPT1 00158XT3E145T230/460/380V145T1760 RPM1 1/2 hpHazardous Location1 C, D / 2 F, G1800 RPMWithout€1,363.94
WEG 00152XT3E182T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMZ 4YPT2 00152XT3E182T230/460/380V182T1165 RPM1 1/2 hpHazardous Location1 C, D / 2 F, G1200 RPMWithout€1,706.85
WEG 00236XT3E145T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNA 4YPT3 00236XT3E145T230/460/380V145T3480 RPM2 hpHazardous Location1 C, D / 2 F, G3600 RPMWithout€1,362.00
WEG 00218XT3E145T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNB 4YPT4 00218XT3E145T230/460/380V145T1750 RPM2 hpHazardous Location1 C, D / 2 F, G1800 RPMWithout€1,404.90
WEG 00212XT3E184T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNC 4YPT5 00212XT3E184T230/460/380V184T1165 RPM2 hpHazardous Location1 C, D / 2 F, G1200 RPMWithout€1,719.18
