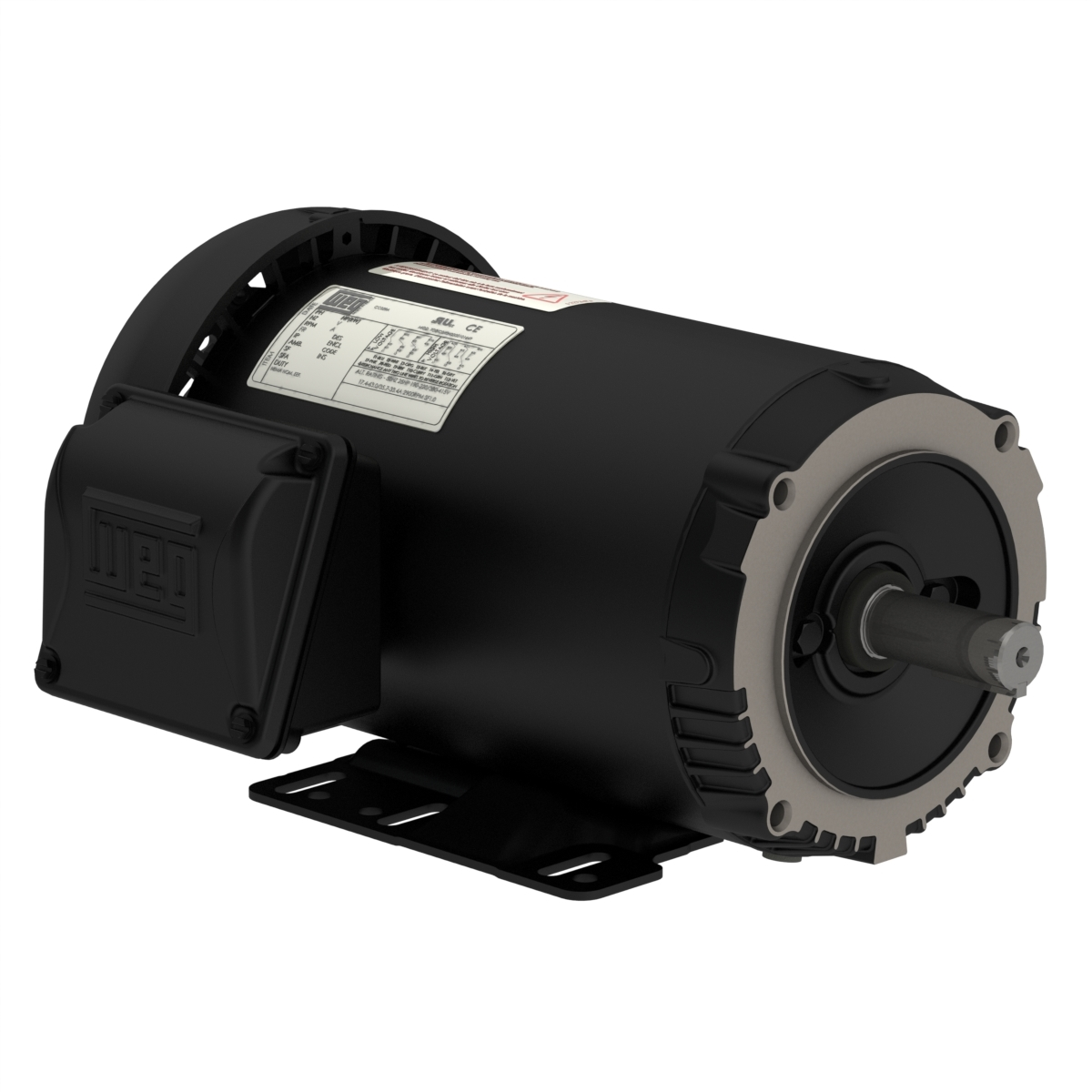

WEG 01018ET3J215T-S 14015788 General Purpose Motor, 10 HP, 4 Poles, 213/5T Frame, 3 Phase, 380 V, 60 Hz, IC411-TEFC, Foot Mounted
€1,430.49 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 14.8A |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% |
| Cold Locked Rotor Time | 27 sec. |
| Connection Cables Quantity | 6 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 67% , 91% |
| Efficiency 75% | 91% |
| Efficiency @ 1 % | 84% |
| Efficiency @ 100% | 91.7% |
| Efficiency @ 75 % | 78% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 213/5T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 15 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 103A |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time(hot) | 15 sec. |
| Locked Rotor Torque | 250% |
| Lrc | 7.0X(Code H) |
| Main Terminal Box Hole | 1.377" |
| Main Terminal Box Hole Size | 1.377" |
| Moment Of Inertia | 1.07 lbs.-sq. ft. |
| Moment Of Inertia (j) | 1.07 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1760 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 6.71A |
| No. Of Poles | 4 |
| Noise Level | 60 dBA |
| Output | 10 hp |
| Output Rating | 10 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.84 |
| Power Factor 50% | 0.67 |
| Power Factor 75% | 0.78 |
| Power Factor @ 1 % | 91.7 |
| Power Factor @ 50 % | 91 |
| Power Factor @ 75 % | 91 |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.22% |
| Speed | 1700-1800 RPM , 1760 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 29.8 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 380V , 380V AC |
Product Variants
| Product | Model | Voltage | Frame | Ambient Temp. | Frame Material | No Load Amps | Mounting | Output Rating | Grounding Lugs | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35018EP3G449T-W22 | 460V AC | 447/9T | -20°C to +40°C | Cast Iron | 98A | Foot Mounted | 350 hp | Double | €41,626.63 | |
 |
.7518ET3J56-S | 380/660V AC | 56 | -20°C to +50°C | Rolled Steel | 0.995/0.573A | Foot Mounted | 3/4 hp | Single | €470.06 | RFQ
|
|
00118ET3J56-S | 380/660V AC | 56 | -20°C to +50°C | Rolled Steel | 1.08/0.62A | Foot Mounted | 1 hp | Single | €489.16 | RFQ
|
 |
00158ET3J56-S | 380/660V AC | 56H | -20°C to +50°C | Rolled Steel | 1.31/0.754A | Foot Mounted | 1 1/2 hp | Single | €560.75 | RFQ
|
 |
00218ET3J145T-S | 380/660V AC | 143/5T | -20°C to +50°C | Rolled Steel | 1.69/0.974A | Foot Mounted | 2 hp | Single | €687.22 | RFQ
|
|
00318ET3J182T-S | 380V | 182/4T | -20°C to +40°C | Rolled Steel | 2.42A | Foot Mounted | 3 hp | Single | €744.48 | RFQ
|
|
00518ET3J184T-S | 380V | 182/4T | -20°C to +40°C | Rolled Steel | 4.17A | Foot Mounted | 5 hp | Single | €866.18 | RFQ
|
