WEG 00518ET3J184T-S Electric Motor, 5Hp, 60Hz, 1800 Rpm | BC3HLM

WEG 00518ET3J184T-S 14015655 General Purpose Motor, 5 HP, 4 Poles, 182/4T Frame, 3 Phase, 380 V, 60 Hz, IC411-TEFC, Foot Mounted

Item: BC3HLMModel: 00518ET3J184T-SCross Ref: 14015655
Check Availability
In Stock
€866.18 /unit
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap No
Bolt Material Carbon Steel
Break-down Torque 300%
Cold Locked Rotor Time 28 sec.
Connection Cables Quantity 6
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency At 1 % 80%
Efficiency At 50 % 60%
Efficiency At 75 % 73%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type Without
Frame 182/4T
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 16 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 55A
Locked Rotor Torque 220%
Lrc 7.0X(Code J)
Main Terminal Box Hole Size 1.118"
Moment Of Inertia 0.308 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1750 RPM
Mounting Foot Mounted
No Load Amps 4.17A
No. Of Poles 4
Noise Level 56 dBA
Output 5 hp
Output Rating 5 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor At 1 % 89.5
Power Factor At 50 % 88.5
Power Factor At 75 % 89.5
Rated Current 7.86A
Rated Torque 15 lbs.-ft.
Rated Voltage 380V AC
Resilient Base Without
Rotation CW/CCW
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.78%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 380V AC

Product Variants

ProductModelVoltageFrameAmbient Temp.Frame MaterialNo Load AmpsMountingOutput RatingGrounding LugsPrice
WEG 35018EP3G449T-W22 Electric Motor, 350Hp, 60Hz, 1780 Rpm | BB6APN 35018EP3G449T-W22460V AC447/9T-20°C to +40°CCast Iron98AFoot Mounted350 hpDouble€41,626.63

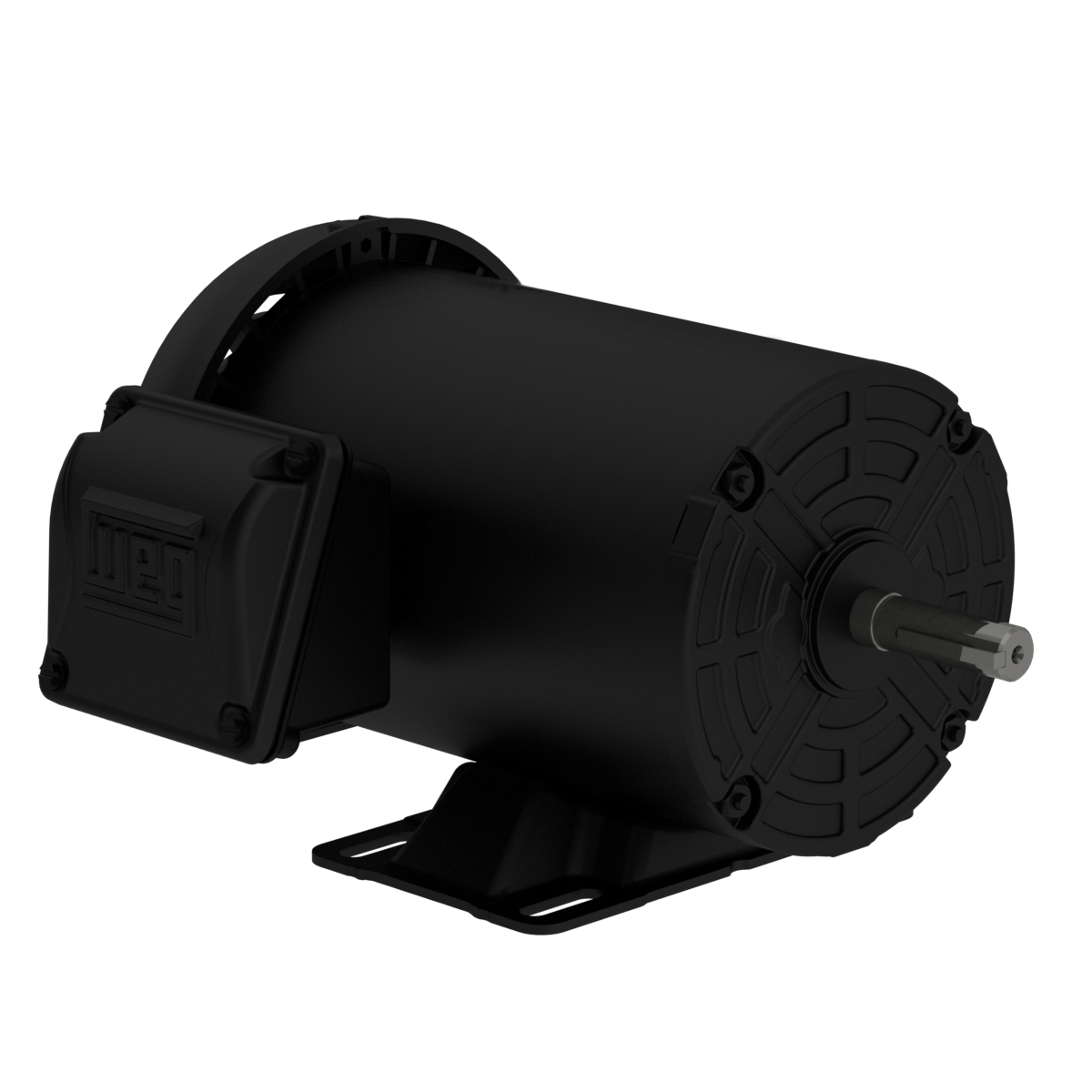

WEG .7518ET3J56-S Electric Motor, 0.75Hp, 60Hz, 1800 Rpm | BC3FGF .7518ET3J56-S380/660V AC56-20°C to +50°CRolled Steel0.995/0.573AFoot Mounted3/4 hpSingle€470.06
RFQ
WEG 00118ET3J56-S Electric Motor, 1Hp, 60Hz, 1800 Rpm | BC3GXR 00118ET3J56-S380/660V AC56-20°C to +50°CRolled Steel1.08/0.62AFoot Mounted1 hpSingle€489.16
RFQ

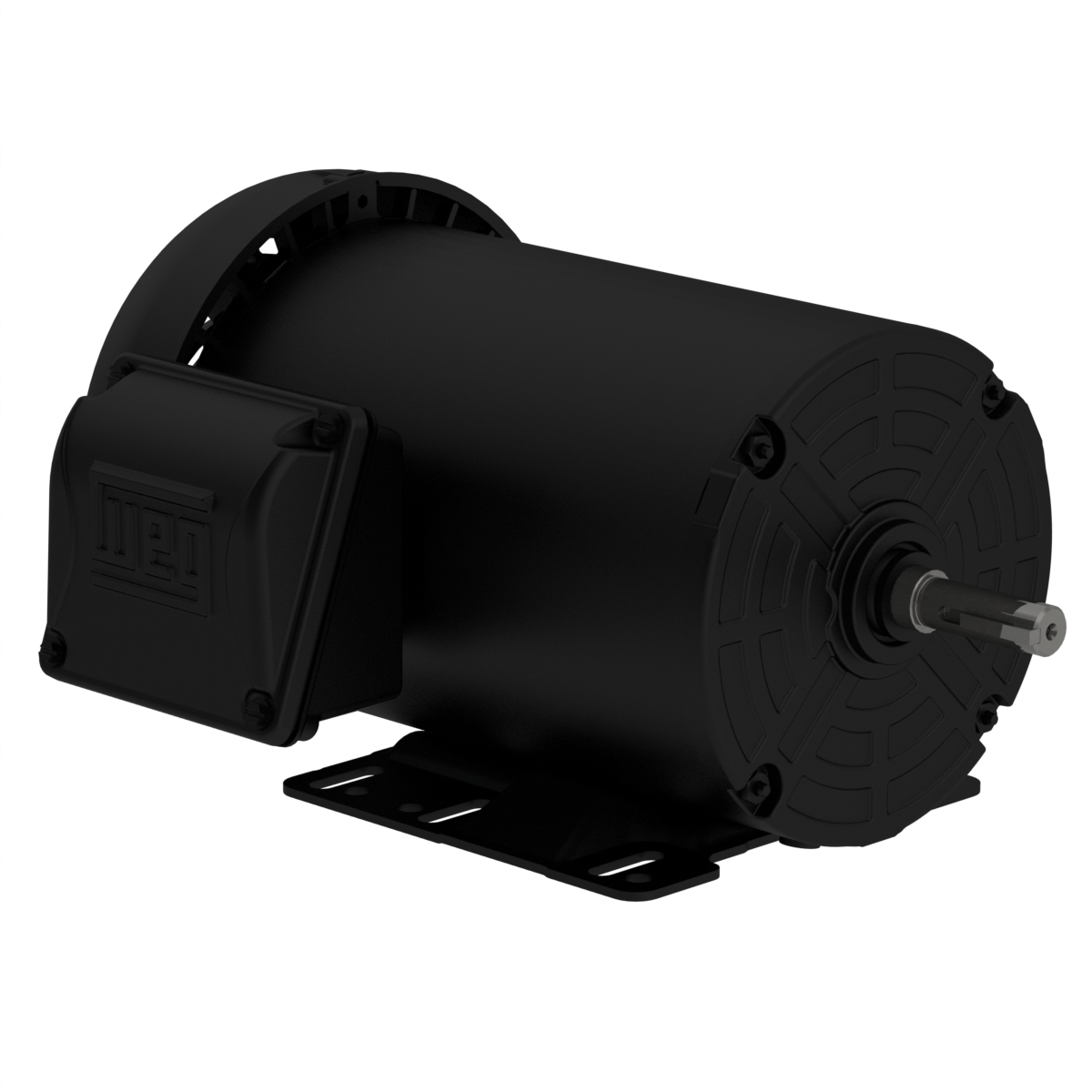

WEG 00158ET3J56-S Electric Motor, 1.5Hp, 60Hz, 1800 Rpm | BC3HBY 00158ET3J56-S380/660V AC56H-20°C to +50°CRolled Steel1.31/0.754AFoot Mounted1 1/2 hpSingle€560.75
RFQ

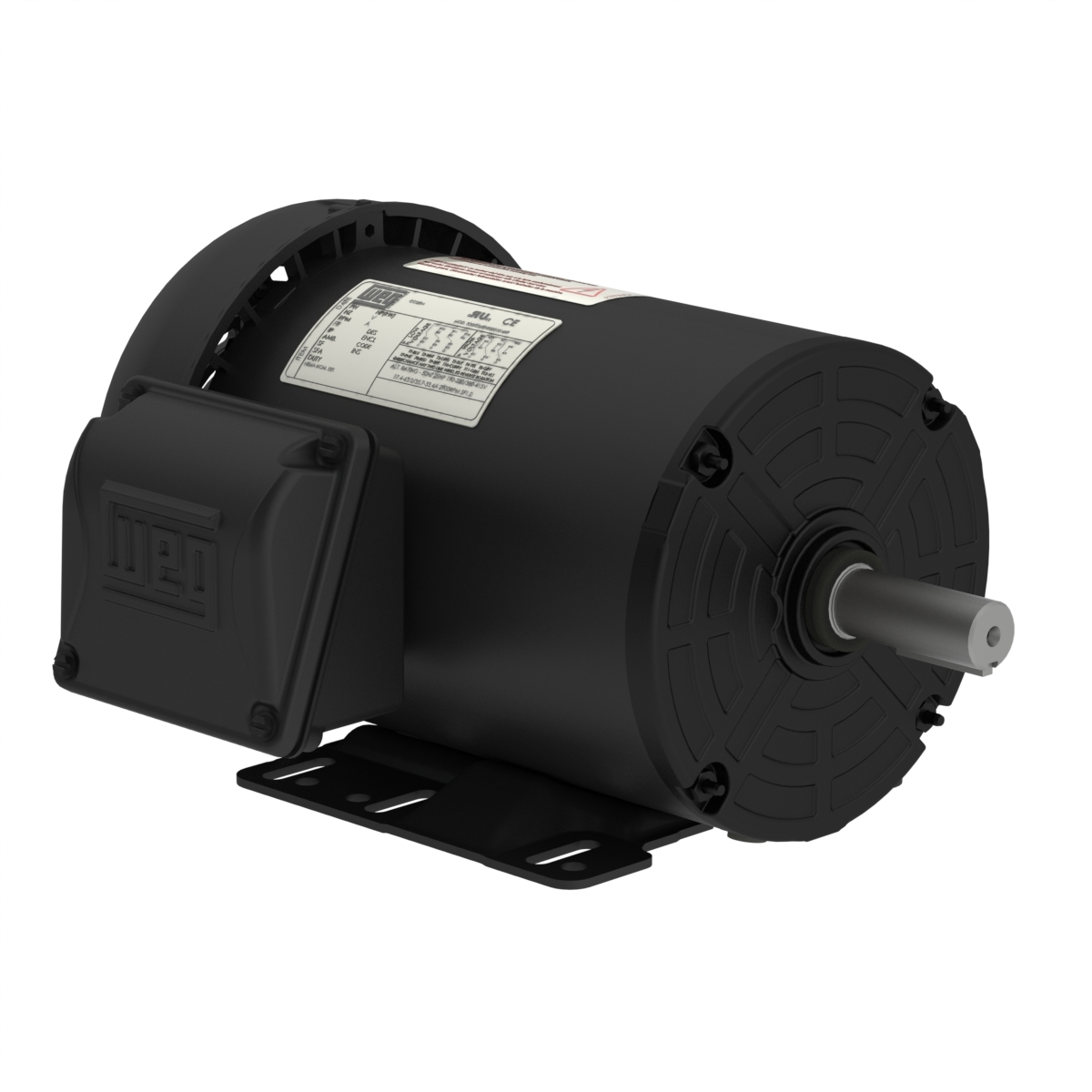

WEG 00218ET3J145T-S Electric Motor, 2Hp, 60Hz, 1800 Rpm | BC3HCY 00218ET3J145T-S380/660V AC143/5T-20°C to +50°CRolled Steel1.69/0.974AFoot Mounted2 hpSingle€687.22
RFQ
WEG 00318ET3J182T-S Electric Motor, 3Hp, 60Hz, 1800 Rpm | BC3HGT 00318ET3J182T-S380V AC182/4T-20°C to +40°CRolled Steel2.42AFoot Mounted3 hpSingle€744.48
RFQ

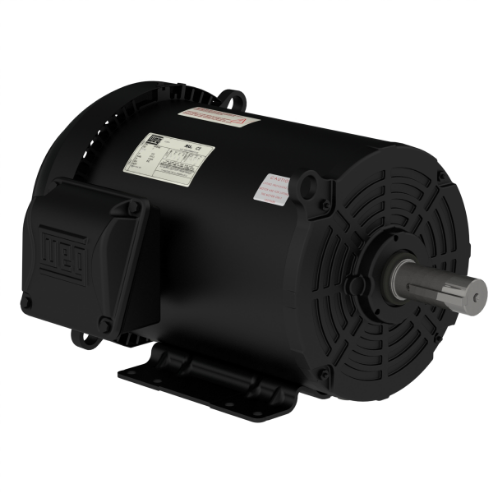

WEG 00718ET3J213T-S Electric Motor, 7.5Hp, 60Hz, 1800 Rpm | BC3HPP 00718ET3J213T-S380V AC213/5T-20°C to +40°CRolled Steel5.33AFoot Mounted7 1/2 hpSingle€1,221.70
RFQ
