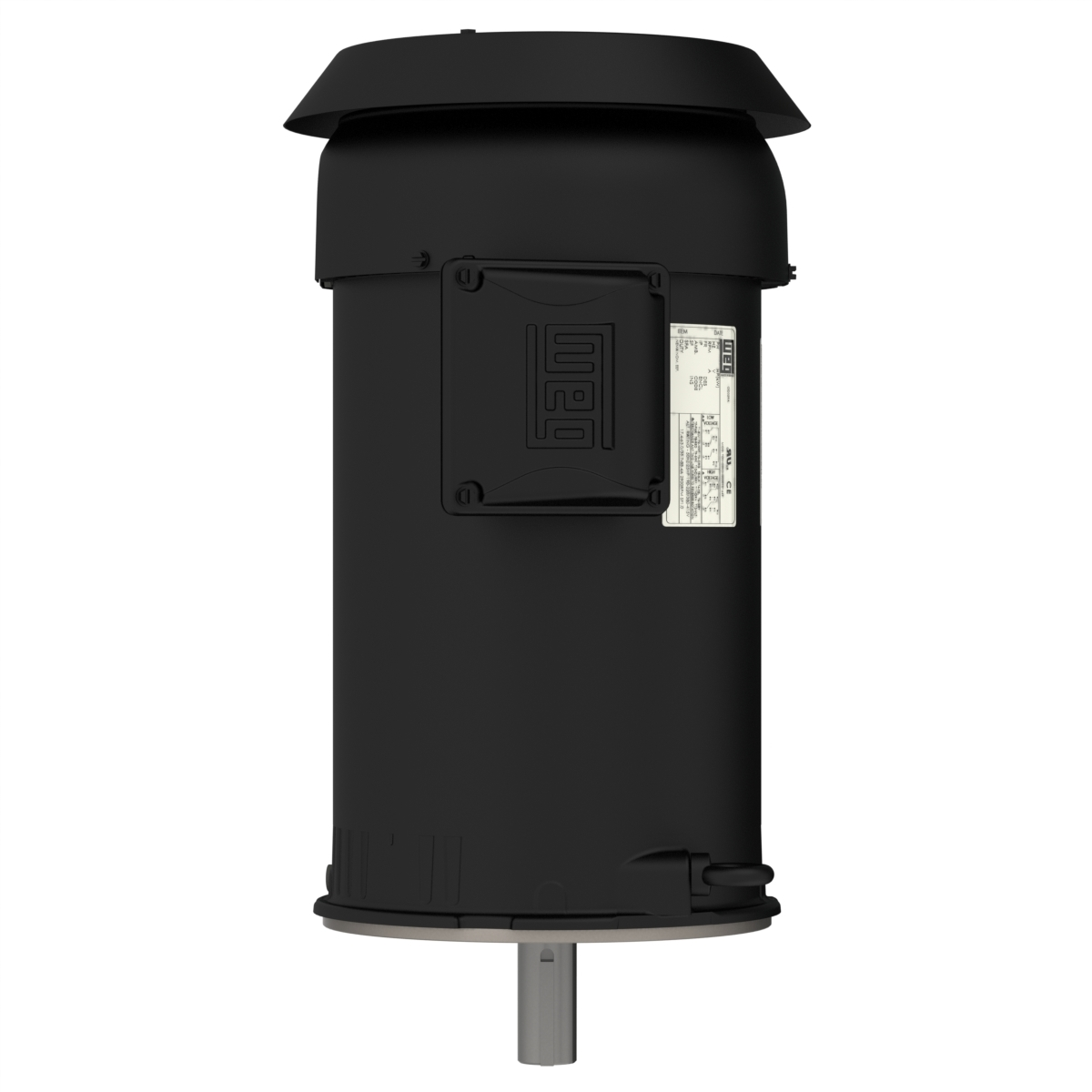

WEG 00536ET3E184JMV-S 13173988 Pump Motor, 5 HP, 3600 RPM, 208-230/460 V, 3 Phase, TEFC, 184JMV Frame, Footless, Close Coupled Pump, Vertical
5 hp
184JMV
3600 rpm
Get it by Friday, Aug 28
€1,487.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Application | Closed Coupled |
| Body Design | Rolled Steel |
| Composition | Steel |
| Ct Speed Range | 2:1 |
| Efficiency | 88.5% |
| Enclosure | IC411 |
| Enclosure Iec | IP55 |
| Enclosure Type | Tefc |
| Flange | C |
| Frame | 184JMV |
| Frame Size | 184JM |
| Frequency | 50/60 Hz |
| Hp | 5 hp |
| Inverter Rating | Inverter Ready |
| Mounting | W-6 |
| Mounting Arrangement | W6 |
| Mounting Orientation | Vertical |
| Nema Frame | NEMA 182-4JM |
| Nema Mount | C Face No Base |
| No. Of Poles | 2 |
| Output Hp | 5 hp |
| Output Kw | 3.7 kW |
| Output Rating | 5 hp |
| Output Speed | 3500/2860 RPM |
| Phase | 3 |
| Service Factor | 1.15 |
| Speed | 3400-3600 RPM |
| Synchronous Speed | 3600 RPM |
| Temp. Code | T3 = 200°C |
| Terminal Box | Left Position |
| Voltage | 190-220/230/380-415/460V , 208-230/460V |
Shipping Info:
| Ship weight (kg) | 38.7 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Hp | Frequency | Service Factor | Full Load Amps | Frame | No. Of Poles | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ET3ERSR143TC | 208-230/460V | 1 hp | - | - | - | 143TC | - | - | - | RFQ
|
| 00518EP3ERSR184TC | 230/460V | 5 hp | 60 Hz | 1 | 6.9/13.8A | 182TC | 4 | Class F | - | RFQ
|
| 00118ES3HD56CFL | 575V | 1 hp | - | - | - | 56CFL | - | - | - | RFQ
|
| 02036EP3ERSR256TC | 230/460V | - | 60 Hz | 1 | 23.7/47.4A | 254TC | 2 | Class F | - | RFQ
|
| 00218ET3ERSR145TC | 208-230/460V | 2 hp | - | - | - | 143TC | - | - | - | RFQ
|
| 00212EP3ERSR184TC | 230/460V | - | 60 Hz | 1 | 3.2/6.4A | 182TC | 6 | Class F | €478.24 | |
| 01036EP3ERSR215TC | 230/460V | 10 hp | 60 Hz | 1 | 11.8/23.6A | 215TC | 2 | Class F | - | RFQ
|
