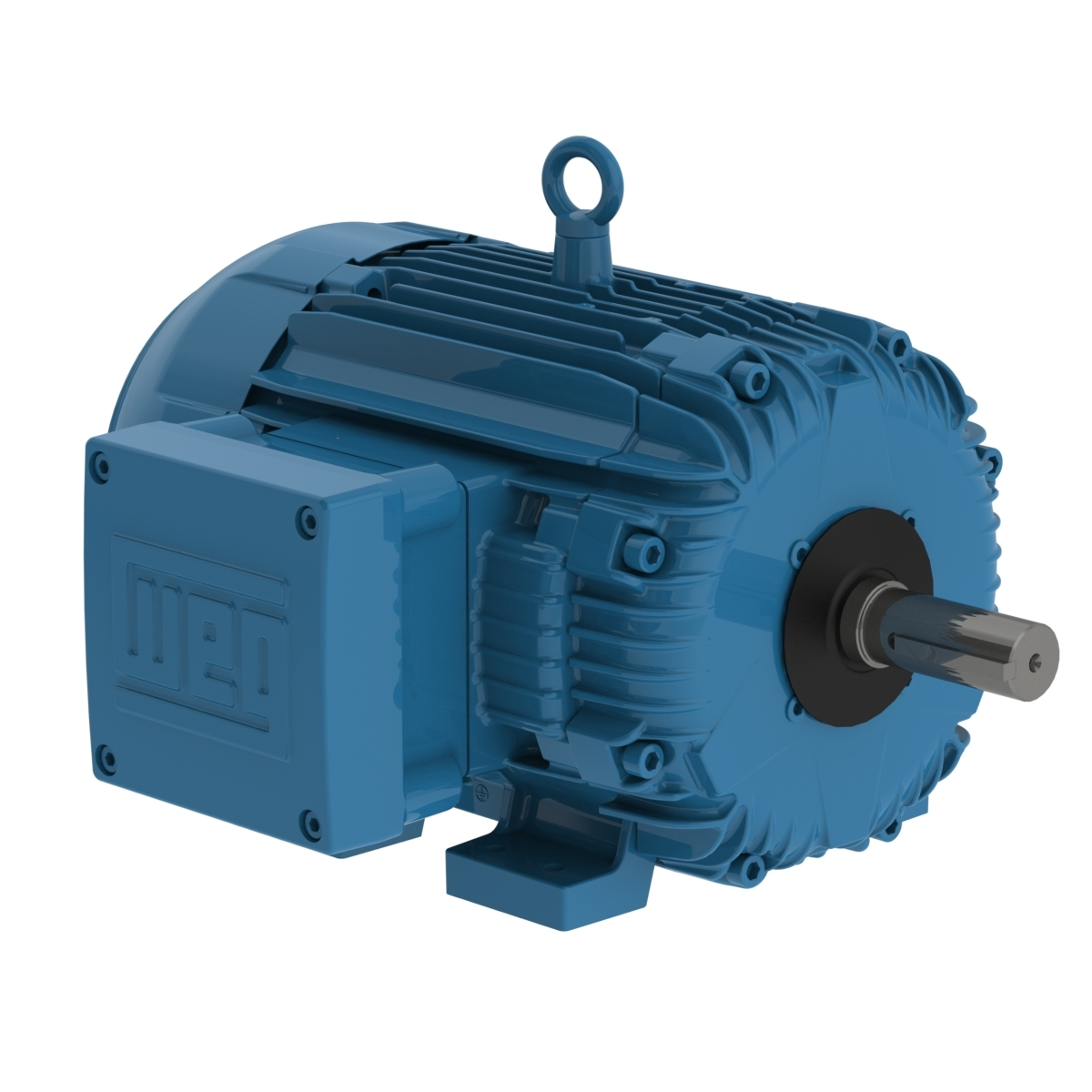

WEG 00512XT3H215T 14309726 Explosion Proof Motor, 5 HP, 6 Poles, 213/5T Frame, 3 Phase, 575V, 60 Hz, Foot-mounted
1200 rpm
5 hp
575V
Get it by Thursday, Jul 2
€2,195.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 5.46A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 260% |
| Cold Locked Rotor Time | 102 sec. |
| Connection Cables Quantity | 6 |
| Cooling | IC411 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency 50% | 58% , 88.5% |
| Efficiency 75% | 89.5% |
| Efficiency @ 1 % | 76% |
| Efficiency @ 100% | 89.5% |
| Efficiency @ 75 % | 70% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 213/5T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 5.46A |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 57 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 37.2A |
| Locked Rotor Time (cold) | 102 sec. |
| Locked Rotor Time(hot) | 57 sec. |
| Locked Rotor Torque | 170% |
| Lrc | 6.8X(Code J) |
| Main Terminal Box Hole | 1" |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 1.47 lbs.-sq. ft. |
| Moment Of Inertia (j) | 1.47 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | CW, CCW |
| Mounting | F-1 |
| Mounting Type | Foot Mounted |
| Nameplate Speed | 1170 RPM |
| No Load Amps | 2.76A |
| No. Of Poles | 6 |
| Noise | 55 dBA |
| Noise Level | 55 dBA |
| Output | 5 hp |
| Output Hp | 5 hp |
| Output Rating | 3.7 kW |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL 5009 202P (ISO 12944 - C4) |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.76 |
| Power Factor 50% | 0.58 |
| Power Factor 75% | 0.7 |
| Power Factor @ 1 % | 89.5 |
| Power Factor @ 50 % | 88.5 |
| Power Factor @ 75 % | 89.5 |
| Product Datasheet | weg-00512xt3h215t.pdf |
| Rotation | CW, CCW |
| Screw Cap | Stainless Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.5% |
| Speed | 1170 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 22.1 lbs.-ft. , 22.4 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 575V , 575V AC |
| Winding Thermal Protection | Thermostat - 2 wires 1 per phase 155°C |
Shipping Info:
| Ship weight (kg) | 95.85 |
| Ship height (cm) | 31.5 |
| Ship length (cm) | 46.99 |
| Ship width (cm) | 37.34 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Voltage | Frame | Hp | Motor Application | Hazardous Location Class | No. Of Poles | Synchronous Speed | Flange | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118XT3E143T | 230/460/380V | 143T | 1 hp | Hazardous Location | 1 C, D / 2 F, G | 4 | 1800 RPM | Without | €1,315.11 | |
| 00156XT3E143T | 230/460/380V | 143T | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | 2 | 3600 RPM | Without | €1,328.90 | |
| 00158XT3E145T | 230/460/380V | 145T | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | 4 | 1800 RPM | Without | €1,363.94 | |
| 00152XT3E182T | 230/460/380V | 182T | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | 6 | 1200 RPM | Without | €1,706.85 | |
| 00236XT3E145T | 230/460/380V | 145T | 2 hp | Hazardous Location | 1 C, D / 2 F, G | 2 | 3600 RPM | Without | €1,362.00 | |
| 00218XT3E145T | 230/460/380V | 145T | 2 hp | Hazardous Location | 1 C, D / 2 F, G | 4 | 1800 RPM | Without | €1,404.90 | |
| 00212XT3E184T | 230/460/380V | 184T | 2 hp | Hazardous Location | 1 C, D / 2 F, G | 6 | 1200 RPM | Without | €1,719.18 |
