WEG 00236XT3H145T Electric Motor, 2Hp, 60Hz, 3495 Rpm | BB9GLD

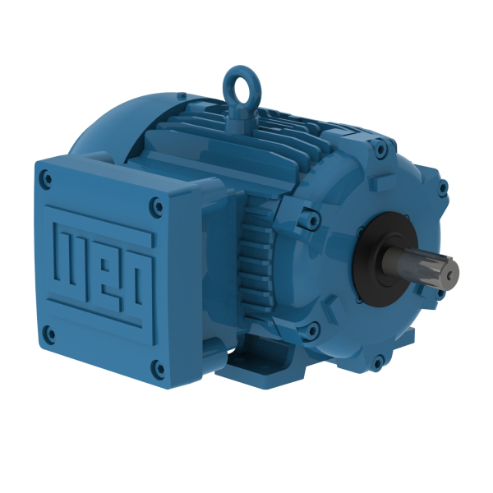

WEG 00236XT3H145T 14591686 Explosion Proof Motor, 2 HP, 3600 RPM, 575 V, 3 Phase, XPFC, 145T Frame, Footed

Item: BB9GLDModel: 00236XT3H145TCross Ref: 14591686
Check Availability
In Stock

Get it by Thursday, Jul 2

€1,115.53 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Hazardous Location Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 2.15A
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 420%
Cold Locked Rotor Time 27 sec.
Connection Cables Quantity 6
Cooling IC411
Design B
Drip Cover Without
Duty Cycle Continuous
Efficiency 50%
Efficiency 50% 64%
Efficiency @ 1 % 82%
Efficiency @ 100% 85.5%
Efficiency @ 75 % 76%
Enclosure Type XP
Fan Cover Material Steel
Fan Material Plastic
Flange Without
Frame 143/5T
Frame Material Cast Iron
Frame Size 145T
Frequency 60 Hz
Full Load Amps 2.15A
Grounding Lugs Single
Hot Locked Rotor Time 15 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 19.8A
Locked Rotor Torque 370%
Lrc 9.2XA
Main Terminal Box Hole Size 3/4"
Main Terminal Box Hole Type NPT
Moment Of Inertia 0.0551 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Shaft Rotation CW, CCW
Mounting Type Foot Mounted
Nameplate Speed 3495 RPM
No Load Amps 0.96A , 1.04A
No. Of Poles 2
Noise 68 dBA
Noise Level 68 dBA
Output 2 hp
Output Hp 2 hp
Output Rating 1.5 kW
Overload Protector Without Overload Protector
Painting RAL 5009 202P (ISO 12944 - C4)
Phase 3
Power Factor 75%
Power Factor 100% 0.82
Power Factor @ 1 % 85.5
Power Factor @ 50 % 80
Power Factor @ 75 % 84
Product Datasheet weg-00236xt3h145t.pdf
Service Factor 1
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.92%
Speed 3400-3600 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 2.96 lbs.-ft. , 3.01 lbs.-ft.
Tropicalized Painting Without
Voltage 575V , 575V AC
Winding Thermal Protection Thermostat - 2 wires 1 per phase 155°C

Shipping Info:

Ship weight (kg) 35.1
Ship height (cm)31.5
Ship length (cm)34.93
Ship width (cm)37.34
Country of OriginBR

Documentation:

Datasheet

Product Variants

ProductModelVoltageFrameHpMotor ApplicationHazardous Location ClassNo. Of PolesSynchronous SpeedFlangePrice
WEG 00118XT3E143T Hazardous Location Motor, 3 Phase, Tefc 1 Hp, T4 | AE2NMW 4YPR7 00118XT3E143T230/460/380V143T1 hpHazardous Location1 C, D / 2 F, G41800 RPMWithout€1,315.11
WEG 00156XT3E143T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMX 4YPR9 00156XT3E143T230/460/380V143T1 1/2 hpHazardous Location1 C, D / 2 F, G23600 RPMWithout€1,328.90
WEG 00158XT3E145T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMY 4YPT1 00158XT3E145T230/460/380V145T1 1/2 hpHazardous Location1 C, D / 2 F, G41800 RPMWithout€1,363.94
WEG 00152XT3E182T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMZ 4YPT2 00152XT3E182T230/460/380V182T1 1/2 hpHazardous Location1 C, D / 2 F, G61200 RPMWithout€1,706.85
WEG 00236XT3E145T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNA 4YPT3 00236XT3E145T230/460/380V145T2 hpHazardous Location1 C, D / 2 F, G23600 RPMWithout€1,362.00
WEG 00218XT3E145T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNB 4YPT4 00218XT3E145T230/460/380V145T2 hpHazardous Location1 C, D / 2 F, G41800 RPMWithout€1,404.90
WEG 00212XT3E184T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNC 4YPT5 00212XT3E184T230/460/380V184T2 hpHazardous Location1 C, D / 2 F, G61200 RPMWithout€1,719.18
