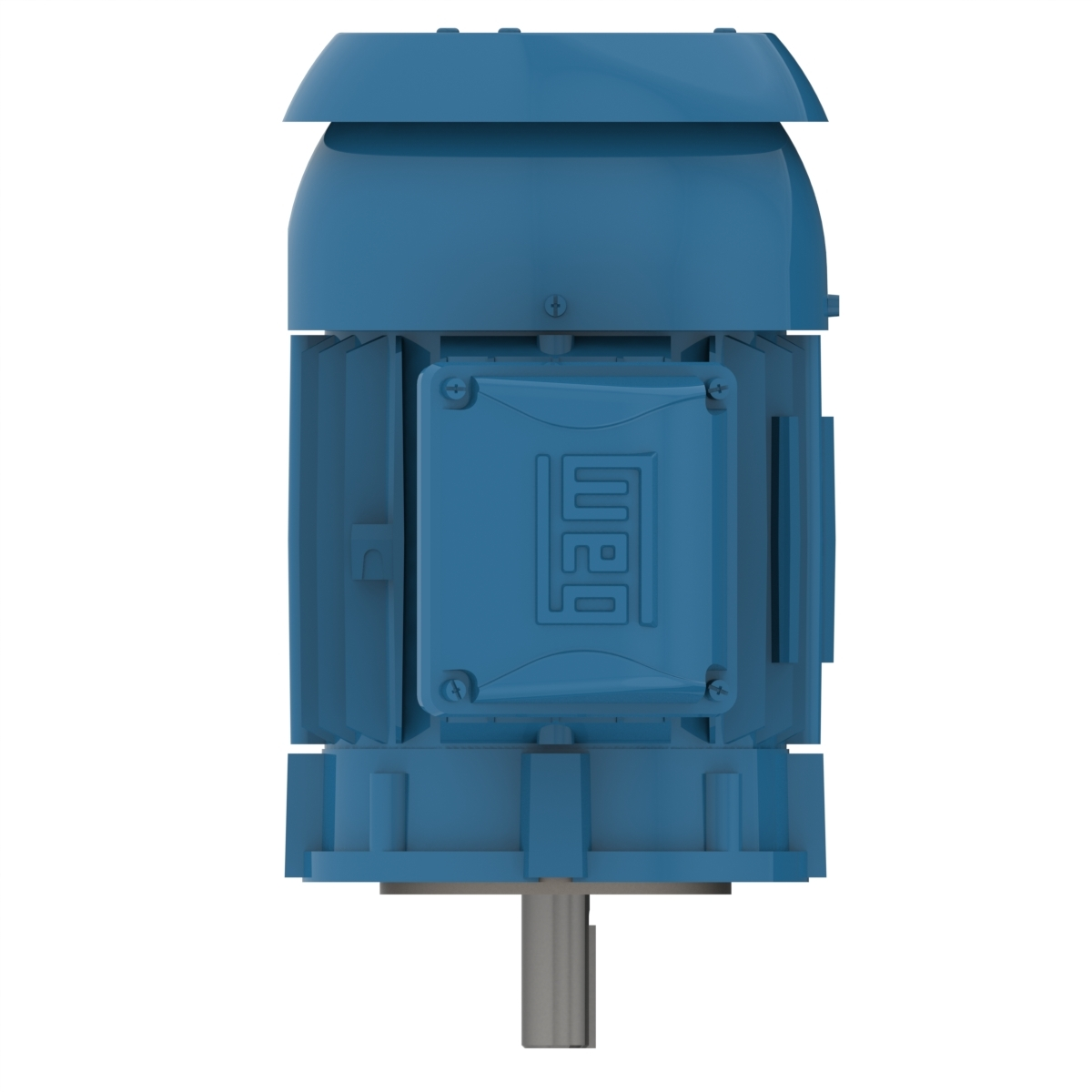

WEG 00158ST3QIER145TC-W2 13270588 Severe Duty Motor, 1.5 HP, 4 Poles, 145TC Frame, 3 Phase, 460 V, 60 Hz, IC411-TEFC, Footless
1800 rpm
1.5 hp
145TC
460V
Get it by Tuesday, Sep 1
€1,265.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 2.02A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Cable Press Material | Sem |
| Connection Cables Quantity | 3 |
| De Bearing Seal | Inpro, Seal |
| Degree Of Protection | IP56 |
| Design | B |
| Drain | Type T, Threaded |
| Drip Cover | With |
| Duty Cycle | S1 |
| Efficiency 50% | 60% , 82.5% |
| Efficiency 75% | 85.5% |
| Efficiency @ 1 % | 79% |
| Efficiency @ 100% | 86.5% |
| Efficiency @ 75 % | 70% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Conductive Plastic , Plastic |
| Feet | No |
| Flange | C |
| Flange Type | C |
| Frame | 145TC |
| Frame Material | Cast Iron |
| Frame Size | 145TC |
| Frequency | 50 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hot Locked Rotor Time | 14 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Joints Seal | Molykote |
| L. R. Amps | 17.9A , 17A |
| Locked Rotor Time (cold) | 25 sec. |
| Locked Rotor Torque | 290% |
| Lrc | 7.5x(Code K) , 8.4X(Code L) |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Hole Size | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.1431 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.1431 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1755 RPM |
| Mounting | Footless , W-6 |
| Nde Bearing Seal | Inpro, Seal |
| No Load Amps | 1.1A |
| No. Of Poles | 4 |
| Noise Level | 51 dBA |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 202E (ISO 12944-C4) |
| Phase | 3 |
| Power Factor 100% | 0.79 |
| Power Factor 50% | 0.6 |
| Power Factor 75% | 0.7 |
| Power Factor @ 1 % | 86.5 |
| Power Factor @ 50 % | 82.5 |
| Power Factor @ 75 % | 85.5 |
| Regreasing System | Stainless Steel, At Drive End And Non Drive End , Stainless Steel, At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.5% |
| Speed | 1755 RPM , 1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 4.49 lbs.-ft. |
| Tropicalized Painting | According To Ieee-841 (96H) |
Shipping Info:
| Ship weight (kg) | 27.9 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Frequency | Service Factor | Full Load Amps | Hp | Frame | Ambient Temp. | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ST3QIE143TC-W22 | 460V AC | 50 Hz | 1.25 | 1.41A | 1 hp | 143TC | 40°C | Class F | €1,883.18 | |
| 00112ST3QIE145TC-W22 | 460V AC | 50 Hz | 1.25 | 1.73A | 1 hp | 145TC | 40°C | Class F | €2,082.04 | |
| 00158ST3QIE145TC-W22 | 460V AC | 50 Hz | 1.25 | 2.02A | 1 1/2 hp | 145TC | 40°C | Class F | €1,846.14 | |
| 00152ST3QIE182TC-W22 | 415V | 50 Hz | 1 | 2.54A | 1 1/2 hp | 182TC | 40°C | Class F | €2,618.85 | |
| 00218ST3QIE145TC-W22 | 460V AC | 60 Hz | 1.25 | 2.61A | 2 hp | 145TC | 40°C | Class F | €1,921.47 | |
| 00212ST3QIE184TC-W22 | 460V AC | 60 Hz | 1.25 | 3.23A | 2 hp | 184TC | 40°C | Class F | €2,842.63 | |
| 00318ST3QIE182TC-W22 | 460V AC | 60 Hz | 1.25 | 3.88A | 3 hp | 182TC | 40°C | Class F | €2,421.19 |
