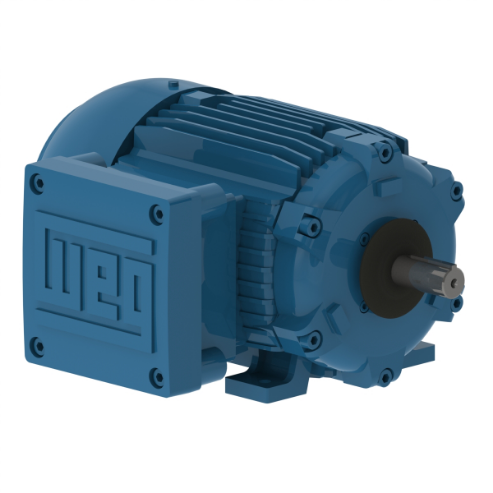

WEG 00156XT3H143T Electric Motor, 1.5Hp, 60Hz, 3500 Rpm | BB7RZR

WEG 00156XT3H143T 14495395 Electric Motor, 1.5Hp, 60Hz, 3500 Rpm

Item: BB7RZRModel: 00156XT3H143TCross Ref: 14495395
Check Availability
In Stock

Get it by Tuesday, Dec 23

€1,092.86 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Hazardous Location Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 440%
Cold Locked Rotor Time 36 sec.
Connection Cables Quantity 6
Cooling IC411
Design B
Drip Cover Without
Duty Cycle S1
Efficiency 50%
Efficiency At 1 % 80%
Efficiency At 50 % 62%
Efficiency At 75 % 73%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Without
Frame 143/5T
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 20 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 15.1A
Locked Rotor Torque 340%
Lrc 9.2X(Code M)
Main Terminal Box Hole Size 3/4"
Main Terminal Box Hole Type NPT
Moment Of Inertia 0.0413 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Shaft Rotation Clockwise/Counter Clockwise
Mounting Type F-1
Nameplate Rpm 3500 RPM
No Load Amps 0.8A
No. Of Poles 2
Noise Level 68 dBA
Output 1 1/2 hp
Output Rating 1.1 kW
Overload Protector Without Overload Protector
Painting RAL 5009 202P (ISO 12944 - C4)
Phase 3
Power Factor At 1 % 84
Power Factor At 50 % 78.5
Power Factor At 75 % 82.5
Rated Current 1.64A
Rated Torque 2.25 lbs.-ft.
Rated Voltage 575V AC
Rotation CW/CCW
Rpm 3500 RPM
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.78%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 575V AC
Winding Thermal Protection Thermostat - 2 wires 1 per phase 155°C

Shipping Info:

Ship weight (kg) 28.8
Ship height (cm)31.5
Ship length (cm)32.41
Ship width (cm)37.34
Country of OriginBR

Product Variants

ProductModelVoltageFrameNameplate RpmHpMotor ApplicationHazardous Location ClassSynchronous SpeedFlangePrice
WEG 00118XT3E143T Hazardous Location Motor, 3 Phase, Tefc 1 Hp, T4 | AE2NMW 4YPR7 00118XT3E143T230/460/380V143T1765 RPM1 hpHazardous Location1 C, D / 2 F, G1800 RPMWithout€1,315.11
WEG 00156XT3E143T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMX 4YPR9 00156XT3E143T230/460/380V143T3500 RPM1 1/2 hpHazardous Location1 C, D / 2 F, G3600 RPMWithout€1,328.90
WEG 00158XT3E145T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMY 4YPT1 00158XT3E145T230/460/380V145T1760 RPM1 1/2 hpHazardous Location1 C, D / 2 F, G1800 RPMWithout€1,363.94
WEG 00152XT3E182T Hazardous Location Motor, 3 Phase, Tefc 1-1/2 Hp, T4 | AE2NMZ 4YPT2 00152XT3E182T230/460/380V182T1165 RPM1 1/2 hpHazardous Location1 C, D / 2 F, G1200 RPMWithout€1,706.85
WEG 00236XT3E145T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNA 4YPT3 00236XT3E145T230/460/380V145T3480 RPM2 hpHazardous Location1 C, D / 2 F, G3600 RPMWithout€1,362.00
WEG 00218XT3E145T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNB 4YPT4 00218XT3E145T230/460/380V145T1750 RPM2 hpHazardous Location1 C, D / 2 F, G1800 RPMWithout€1,404.90
WEG 00212XT3E184T Hazardous Location Motor, 3 Phase, Tefc 2 Hp, T4 | AE2NNC 4YPT5 00212XT3E184T230/460/380V184T1165 RPM2 hpHazardous Location1 C, D / 2 F, G1200 RPMWithout€1,719.18
