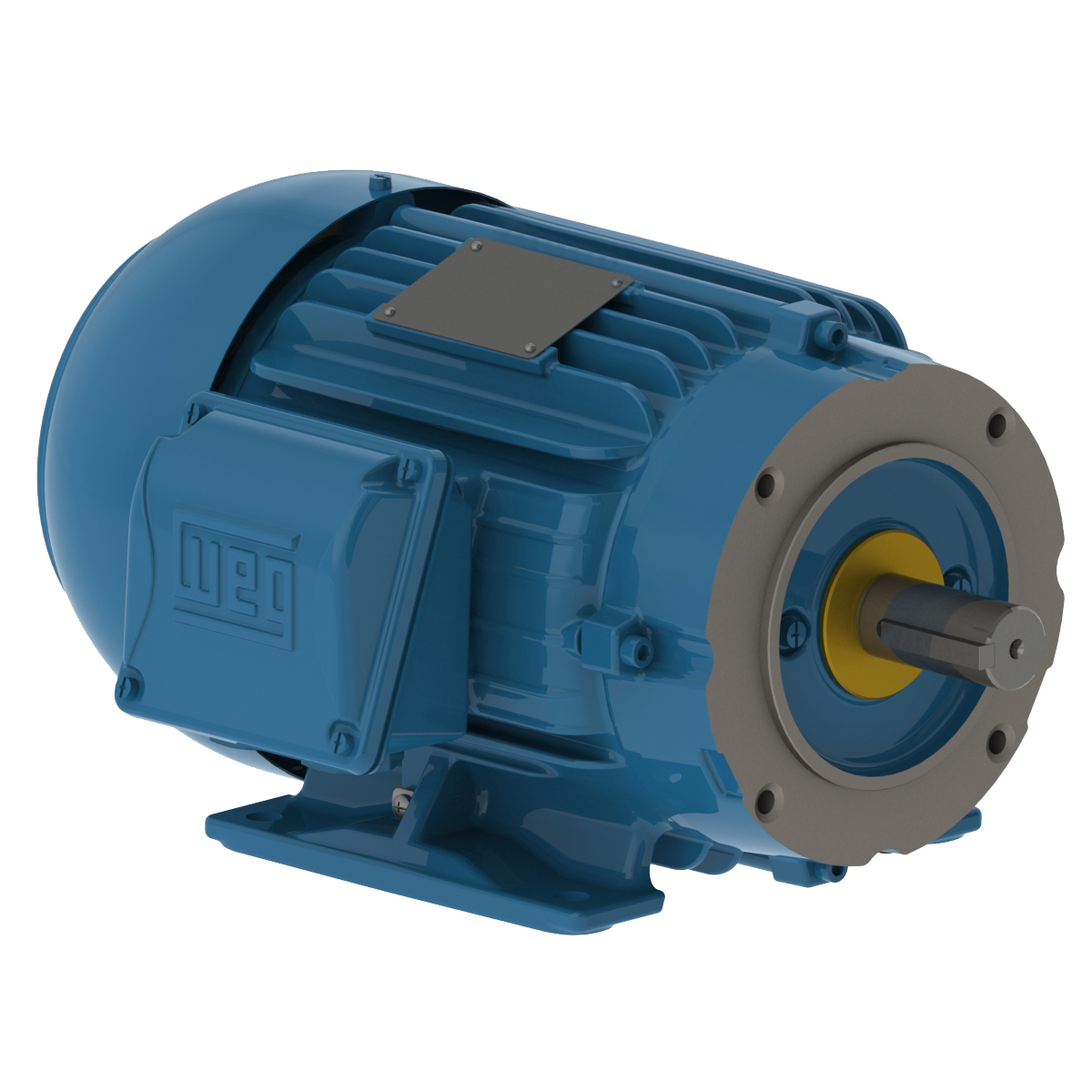

WEG 00156ST3QIE143TC-W22 Electric Motor, 1.5Hp, 60Hz, 3490 Rpm | BB7AKA

WEG 00156ST3QIE143TC-W22 12373691 Electric Motor, 1.5Hp, 60Hz, 3490 Rpm

Item: BB7AKAModel: 00156ST3QIE143TC-W22Cross Ref: 12373691
Check Availability
In Stock

Get it by Friday, Dec 19

€1,230.07 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 370%
Cold Locked Rotor Time 37 sec.
Connection Cables Quantity 3
Design B
Drain Type T, Threaded
Drip Cover Without
Duty Cycle S1
Efficiency 50%
Efficiency At 1 % 84%
Efficiency At 50 % 68%
Efficiency At 75 % 78%
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange Type C
Foot Flatness (0.005 Pol) 0.127 mm
Frame 143/5TC
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Double
Hot Locked Rotor Time 21 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
Joints Seal Molykote
L. R. Amps 17.4A
Locked Rotor Torque 310%
Lrc 8.9X(Code L)
Main Terminal Box Hole Size 3/4"
Main Terminal Box Hole Type NPT
Moment Of Inertia 0.047 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3480 RPM
Mounting Foot Mounted
No Load Amps 0.83A
No. Of Poles 2
Noise Level 68 dBA
Output 1 1/2 hp
Output Rating 1 1/2 hp
Overload Protector Without Overload Protector
Painting RAL5009 202E (ISO 12944-C4)
Phase 3
Power Factor At 1 % 84
Power Factor At 50 % 81.5
Power Factor At 75 % 84
Rated Current 1.96A
Rated Torque 2.26 lbs.-ft.
Rated Voltage 460V
Regreasing System Stainless Steel, At Drive End And Non Drive End
Rotation CW/CCW
Rpm 3400-3600 RPM
Service Factor 1.25
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 3.33%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting According To Ieee-841 (96H)
Voltage 460V AC

Shipping Info:

Ship weight (kg) 25.65
Ship height (cm)48.26
Ship length (cm)48.26
Ship width (cm)45.72
Country of OriginUS

Product Variants

ProductModelVoltageFrequencyService FactorFull Load AmpsHpNameplate RpmMotor TypeMounting TypePrice
WEG 00118ET3H143TC-W22 General Purpose Motor, 3-phase Tefc 1 Hp, 1765 Rpm 143tc | AA4JCW 12N884 00118ET3H143TC-W22575V AC60 Hz1.251.18A1 hp1760 RPMThree PhaseRigid Base€772.12
WEG 00156ET3H143TC-W22 General Purpose Motor, 3-phase Tefc 1-1/2 Hp, 3495 Rpm 143tc | AA4JCX 12N885 00156ET3H143TC-W22575V AC60 Hz1.251.57A1 1/2 hp3480 RPMThree PhaseRigid Base€840.81
WEG 00158ET3H145TC-W22 General Purpose Motor, 3-phase Tefc 1-1/2 Hp, 1760 Rpm 145tc | AA4JCY 12N886 00158ET3H145TC-W22575V AC60 Hz1.251.62A1 1/2 hp1755 RPMThree PhaseRigid Base€768.36
WEG 00236ET3H145TC-W22 General Purpose Motor, 3-phase Tefc 2 Hp, 3490 Rpm 145tc | AA4JCZ 12N887 00236ET3H145TC-W22575V AC60 Hz1.252.05A2 hp3475 RPMThree PhaseRigid Base€853.67
WEG 00218ET3H145TC-W22 General Purpose Motor, 3-Phase, TEFC, 2 hp, 1755 rpm | AA4JDA 12N888 00218ET3H145TC-W22575V AC60 Hz1.252.21A2 hp1755 RPMThree PhaseRigid Base€841.96
WEG 00336ET3H182TC-W22 General Purpose Motor, 3-phase Tefc 3 Hp, 3510 Rpm 182tc | AA4JDB 12N889 00336ET3H182TC-W22575V60 Hz12.9A3 hp3515 RPMThree PhaseRigid Base€1,055.20
WEG 00318ET3H182TC-W22 General Purpose Motor, 3-phase Tefc 3 Hp, 1760 Rpm 182tc | AA4JDC 12N890 00318ET3H182TC-W22575V AC60 Hz1.253.1A3 hp1760 RPMThree PhaseRigid Base€954.68
