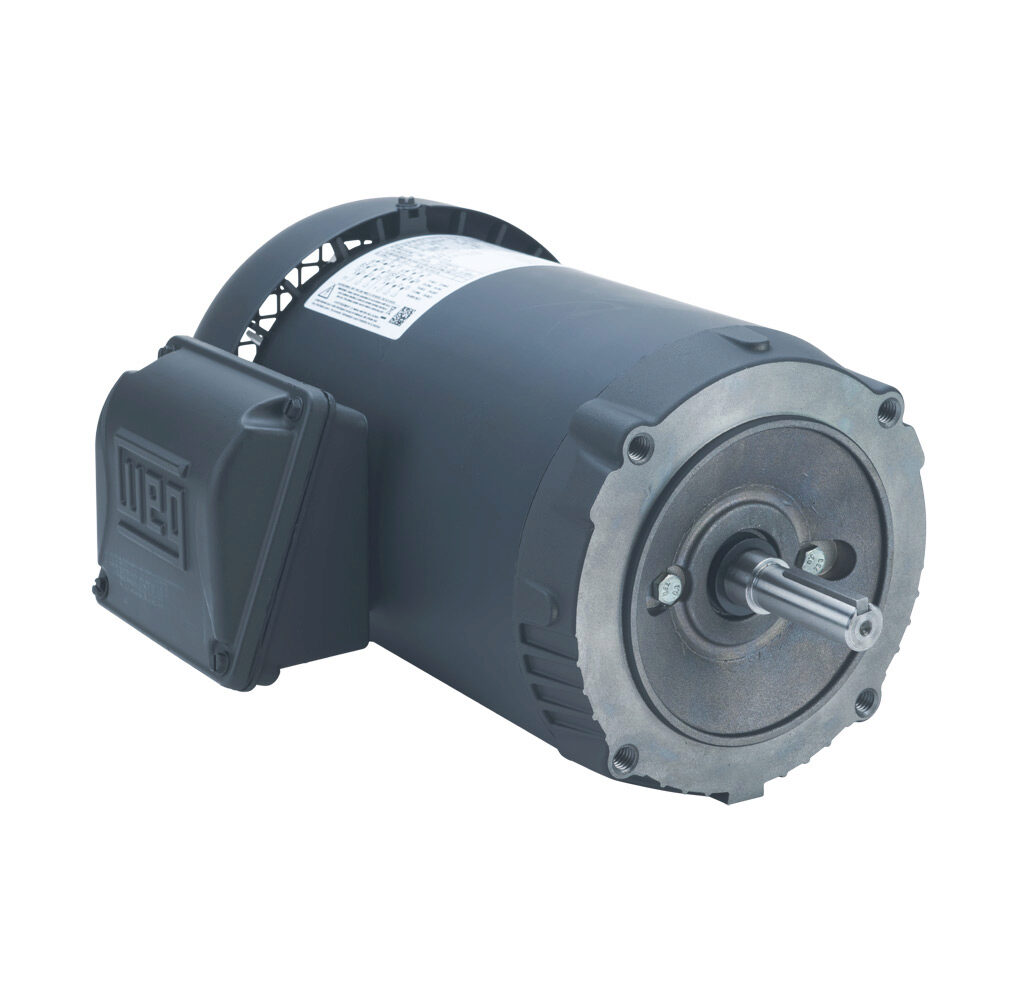

WEG 00156ET3E56CFL-S 14786563 Fractional Motor, 1.5 HP, 3600 RPM, 208-230/460 V, 3 Phase, TEFC, 56CFL Frame, Footless
3600 rpm
1.5 hp
56CFL
Get it by Tuesday, Apr 7
€752.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Breakdown Torque | 300% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 30 sec. |
| Connection Cables Quantity | 9 |
| Constant Torque Rating | 5:1 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 84% |
| Efficiency @ 100% | 84% |
| Efficiency @ 50% | 80% |
| Efficiency @ 75% | 82.5% |
| Efficiency At 1 % | 88% |
| Efficiency At 50 % | 71% |
| Efficiency At 75 % | 82% |
| Efficiency Group | Premium Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer , Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frame Size | 56C |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 17 sec. |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Integrated Brake | No |
| Ip Rating | IP55 |
| L. R. Amps | 34/17A |
| L.r. Amperes | 17/34A |
| Locked Rotor Time (cold) | 30 sec. |
| Locked Rotor Time (hot) | 17 sec. |
| Locked Rotor Torque | 229% |
| Lrc | 9.1X(Code L) |
| Main Terminal Box Hole | 0.881" |
| Main Terminal Box Hole Size | 0.881" |
| Moment Of Inertia | 0.1023 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.1023 lbs.-sq. ft. |
| Motor Application | General Purpose And Inverter Rated |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56C |
| Motor Speed | 3520 RPM |
| Motor Type | Induction |
| Mounting | F-1 , Footless |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Rpm | 3520 RPM |
| Nema Design | Design B |
| No Load Amps | 0.859/1.72A , 1.72/0.859A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Number Of Phases | 3 |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.71 |
| Power Factor 75% | 0.82 |
| Power Factor At 1 % | 84 |
| Power Factor At 50 % | 80 |
| Power Factor At 75 % | 82.5 |
| Power Factor_100% | 0.88 |
| Product Datasheet | weg-00156et3e56cfl-s.pdf |
| Rated Current | 1.87/3.74A , 3.74/1.87A |
| Rated Speed | 3520 RPM |
| Rated Torque | 2.24 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Diameter | 5/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 2.22% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Variable Torque Rating | 1000:1 |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC |
| Voltage Rating | 208-230/460V AC |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 33.3 |
| Ship width (cm) | 85.09 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Nameplate Rpm | Full Load Amps | Duty Cycle | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00218ET3ER145TC-W22 | 230/460/380V AC | 50/60 Hz | 1.25 | - | - | - | S1 | Cast Iron | €786.23 | |
 |
01518ET3ER254TC-W22 | 230/460/380V AC | 50/60 Hz | 1.25 | - | - | - | S1 | Cast Iron | €2,283.15 | |
 |
01018ET3ER215TC-W22 | 230/460/380V AC | 50/60 Hz | 1.25 | - | - | - | S1 | Cast Iron | €1,650.91 | |
|
00318ET3ER182TC-W22 | 230/460/380V AC | 50/60 Hz | 1.25 | - | - | - | Continuous | Cast Iron | €860.21 | |
|
00518ET3ER184TC-W22 | 230/460/380V AC | 60 Hz | 1.25 | - | - | 6.45/12.9-14.3A | S1 | Cast Iron | €995.02 | |
|
00512ET3ER215TC-W22 | 230/460/380V AC | 60 Hz | 1.25 | - | - | 6.83/13.7-15.1A | S1 | Cast Iron | €1,658.80 | |
 |
00236ET3E56CFL-S | 230/460/190-220/380-415V AC | 50/60 Hz | 1.15 | - | 3520 RPM | - | S1 | Rolled Steel | €844.20 |
