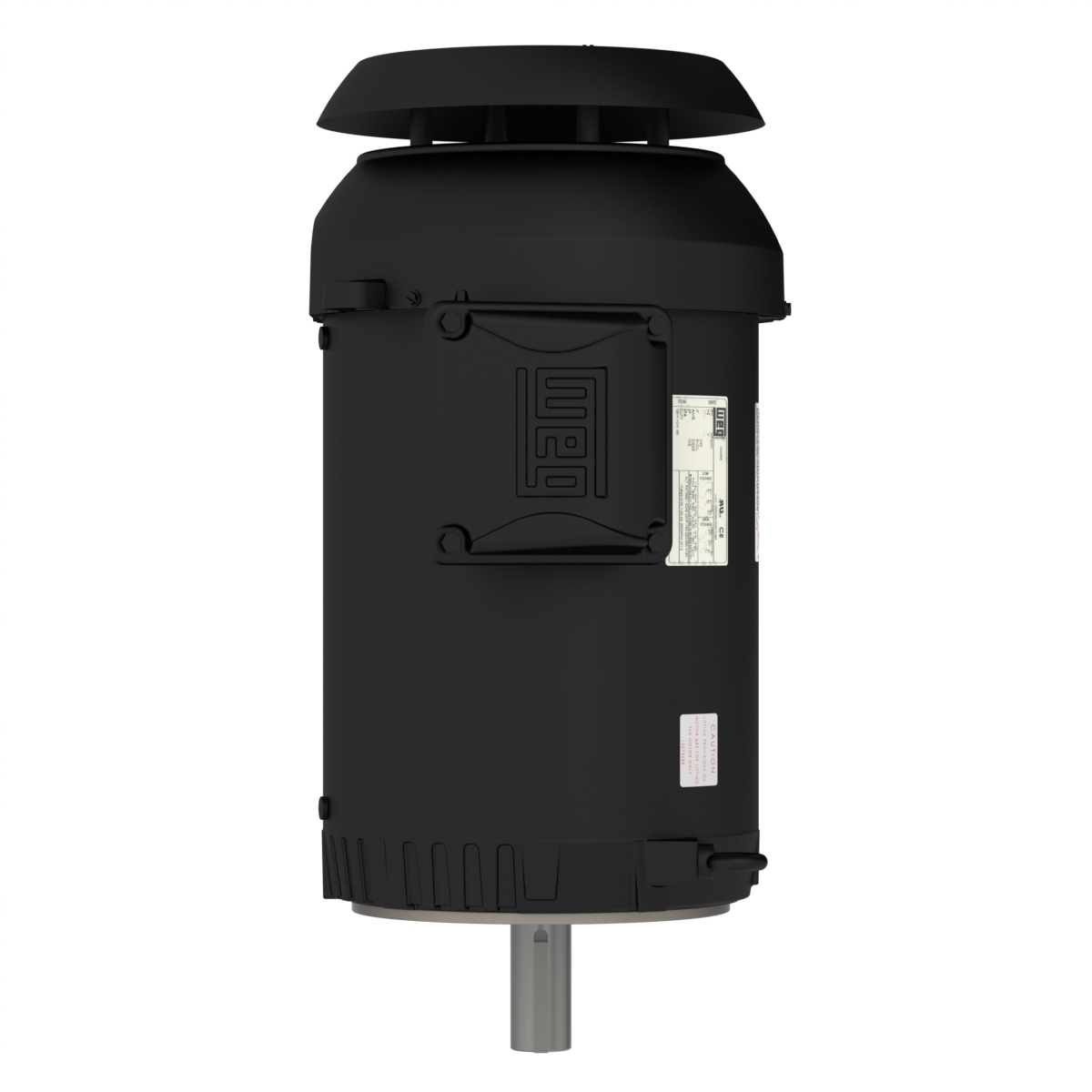

WEG 01012ET3ER256TC-S 13472062 General Purpose Motor, 10 HP, 1200 RPM, 208-230/460 V, 3 Phase, TEFC, 256TC Frame, Footless
1200 rpm
10 hp
256TC
Get it by Tuesday, Aug 25
€2,483.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 13.8/27.6A , 27.6/13.8A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 229% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 54 sec. |
| Composition | Steel |
| Connection Cables Quantity | 12 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | With |
| Duty Cycle | S1 |
| Efficiency 50% | 57% , 90.2% |
| Efficiency 75% | 91% |
| Efficiency @ 1 % | 75% |
| Efficiency @ 100% | 91% |
| Efficiency @ 75 % | 69% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 254/6TC |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz , 60 Hz |
| Grounding Lugs | Superior |
| Hot Locked Rotor Time | 30 sec. |
| Hp | 10 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 149/74.5A , 74.5/149A |
| Locked Rotor Time (cold) | 54 sec. |
| Locked Rotor Time(hot) | 30 sec. |
| Locked Rotor Torque | 210% |
| Lrc | 5.4X(Code G) |
| Main Terminal Box Hole | 1.732" |
| Main Terminal Box Hole Size | 1.732" |
| Moment Of Inertia | 2.83 lbs.-sq. ft. |
| Moment Of Inertia (j) | 2.83 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1175 RPM |
| Mounting | Footless , W-6 |
| No Load Amps | 14.2/7.12A , 7.12/14.2A |
| No. Of Poles | 6 |
| Noise Level | 59 dBA |
| Output | 10 hp |
| Output Rating | 10 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.75 |
| Power Factor 50% | 0.57 |
| Power Factor 75% | 0.69 |
| Power Factor @ 1 % | 91 |
| Power Factor @ 50 % | 90.2 |
| Power Factor @ 75 % | 91 |
| Product Datasheet | weg-01012et3er256tc-s.pdf |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.08% |
| Speed | 1100-1200 RPM , 1175 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 44.7 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC , 230/460V AC |
Shipping Info:
| Ship weight (kg) | 130.05 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Duty Cycle | Frame Material | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00218ET3ER145TC-W22 | 230/460V AC | 50 Hz | 1.25 | - | - | S1 | Cast Iron | 4 | €786.23 | |
 |
01518ET3ER254TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | - | S1 | Cast Iron | 4 | €2,283.15 | |
 |
01018ET3ER215TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | - | S1 | Cast Iron | 4 | €1,650.91 | |
|
00318ET3ER182TC-W22 | 230/460V AC | 50 Hz | 1.25 | - | - | Continuous | Cast Iron | 4 | €860.21 | |
|
00518ET3ER184TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | 6.45/12.9-14.3A | S1 | Cast Iron | 4 | €995.02 | |
|
00512ET3ER215TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | 6.83/13.7-15.1A | S1 | Cast Iron | 6 | €1,658.80 | |
 |
00236ET3E56CFL-S | 208-230/460V AC | 60 Hz | 1.15 | - | - | S1 | Rolled Steel | 2 | €844.20 |
