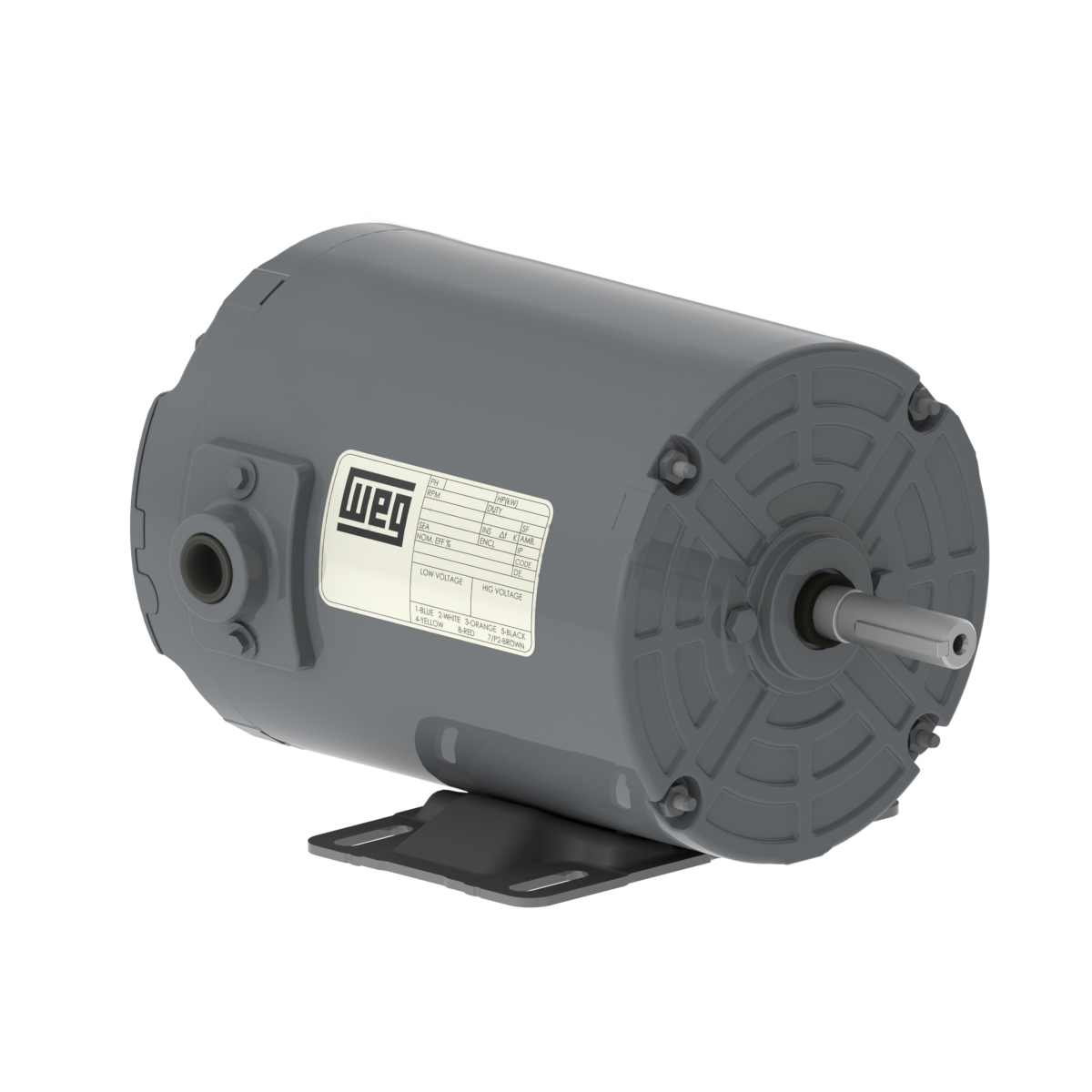

WEG 00136AS3EAF56Z-S 13248479 Farm Duty Motor, Aeration Fan, 1 HP, 2 Poles, 56Z Frame, 3 Phase, 208-230/460V, 60 Hz, Foot-mounted
Get it by Wednesday, Feb 18
€518.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 290% |
| Cold Locked Rotor Time | 43 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 84% |
| Efficiency At 50 % | 68% |
| Efficiency At 75 % | 79% |
| Enclosure Type | Teao |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 56Z |
| Frame Material | Rolled Steel |
| Frame Size | 56Z |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 24 sec. |
| Hp | 1 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 24-21.8/10.9A |
| Locked Rotor Torque | 240% |
| Lrc | 7.2X(Code K) |
| Main Terminal Box Hole Size | 1/2" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 0.0641 lbs.-sq. ft. |
| Motor Speed | 3480 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 0-1.2/0.6A |
| No. Of Poles | 2 |
| Output | 1 hp |
| Output Rating | 1 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL7031 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 74 |
| Power Factor At 50 % | 66 |
| Power Factor At 75 % | 72 |
| Rated Current | 3.34-3.03/1.51A |
| Rated Torque | 1.51 lbs.-ft. |
| Rated Voltage | 208-230/460V AC |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.25 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.33% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Hp | Service Factor | Frequency | Rpm | Frame | Frame Material | Duty Cycle | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00736AP3FGD184TZ-S | - | 1 | 60 Hz | 3400-3600 RPM | 182/4TZ | Rolled Steel | S1 | 2 | €1,042.08 | |
 |
00512AP3H215T-S | - | - | - | 1200 RPM | 215T | - | - | - | - | RFQ
|
 |
01009AT3E284T-W22 | - | 1.25 | 60 Hz | 900 RPM | 284/6T | Cast Iron | S1 | 8 | €5,510.20 | |
|
00509AT3E254T-W22 | - | 1.25 | 60 Hz | 900 RPM | 254/6T | Cast Iron | S1 | 8 | €3,928.16 | |
 |
01512AT3E284T-W22 | - | 1.25 | 50/60 Hz | 1100-1200 RPM | 284/6T | Cast Iron | Continuous | 6 | €3,752.11 | |
|
00536AP3FGD182TZ-S | - | - | - | 3600 RPM | 182TZ | - | - | - | €629.80 | |
|
00712AP3H254T-S | 7 1/2 hp | - | - | 1200 RPM | 254T | - | - | - | €1,167.44 | RFQ
|
