ZP Series, Vacuum Pad
SMC Valves ZP Series vacuum pads are designed for handling objects having curved or uneven surfaces in automated handling systems, robotics and packaging applications where precise and efficient object manipulation is required. These vacuum pads are constructed with a soft, flexible material that conforms to the shape of the object being gripped, ensuring secure and reliable handling. They can be integrated with SMC vacuum generators and valves to create a complete vacuum handling system. These pads are available in multiple styles that include oval pad variations, miniature, mark-free, compact, multi-bellows, nozzle & sponge pads and heavy-duty pad variations. They can be operated at temperatures ranging from -30 to 250 degrees C.

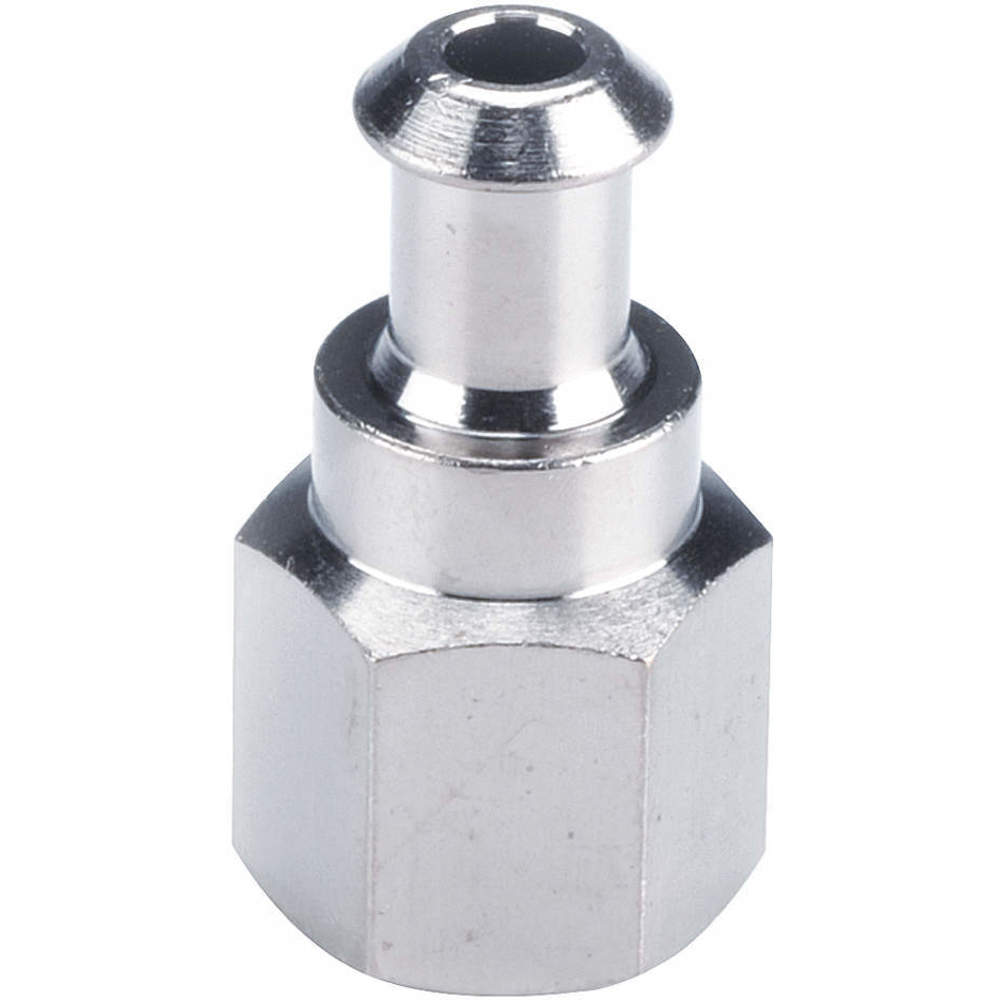

SMC VALVES ZPT2-N01

A

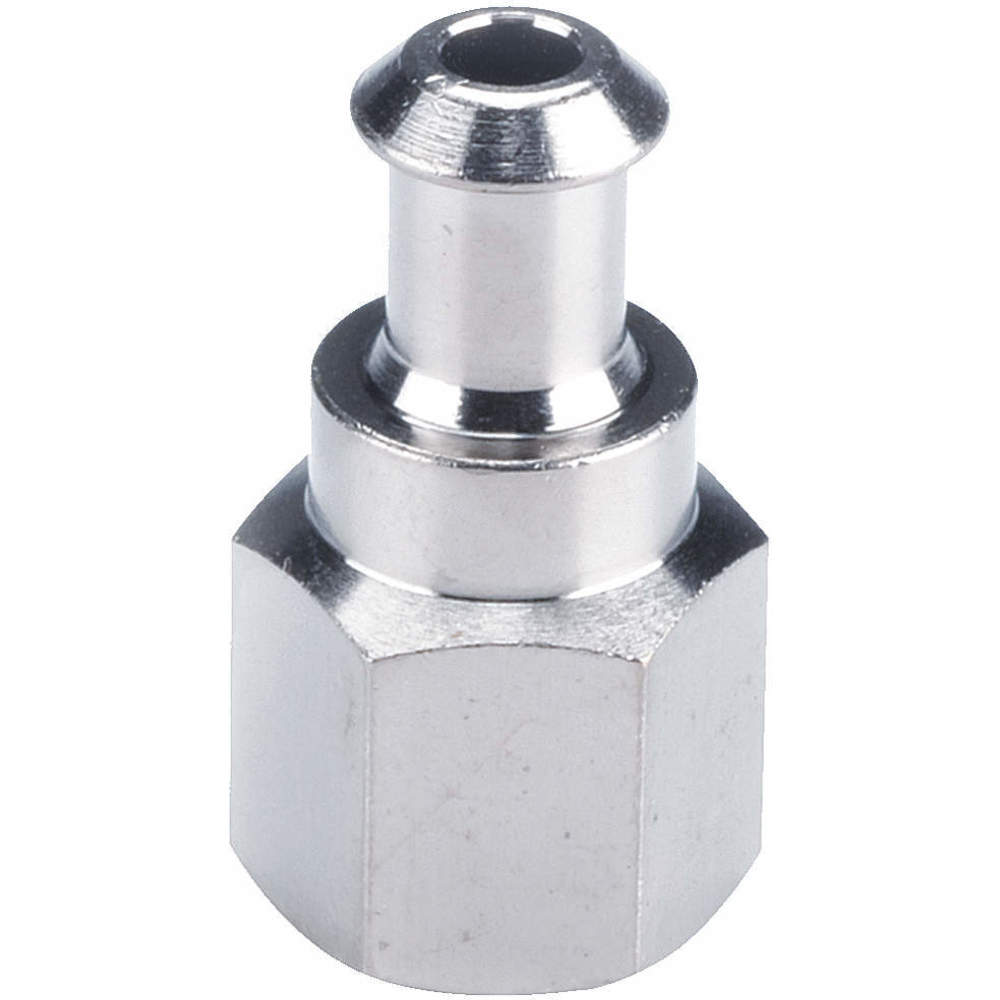

SMC VALVES ZPT1-B4

B

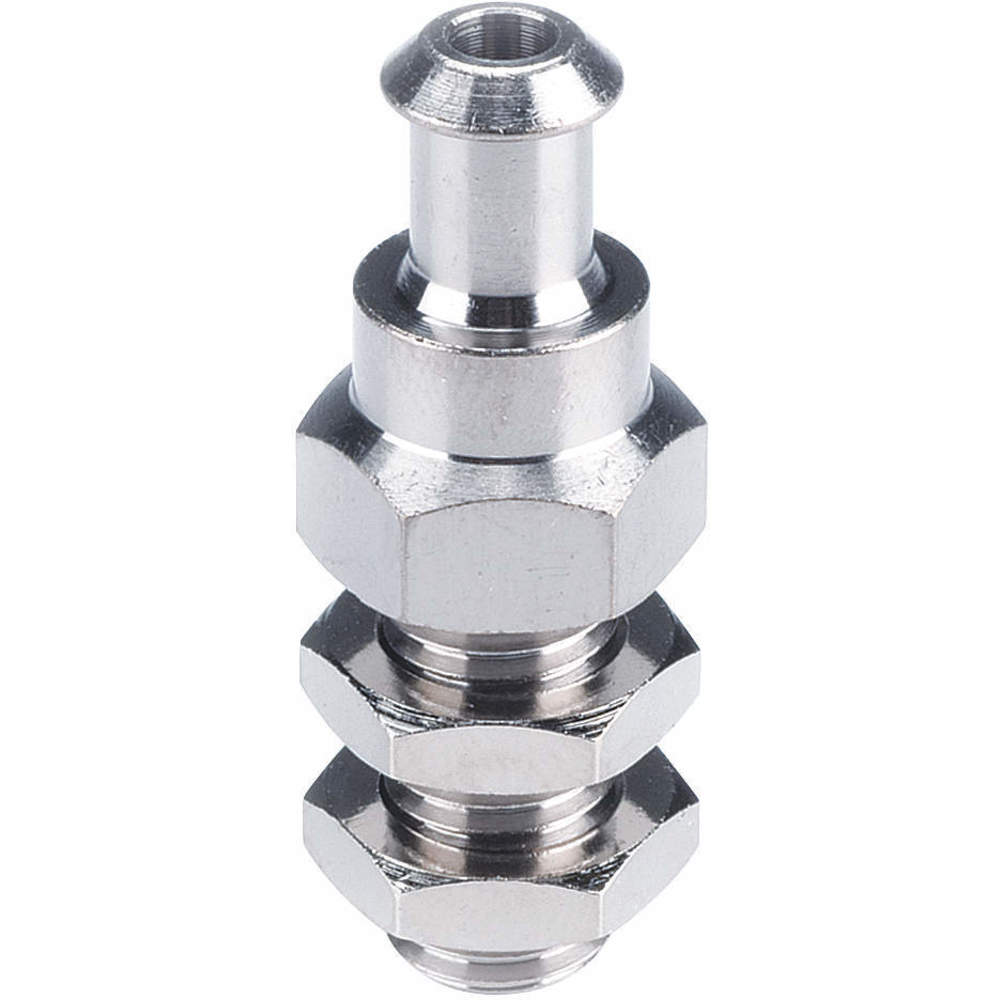

SMC VALVES ZPT1-A6

C

Style	Model	Maximum Pad Size	Port Size	For Use With Pad Size	Temp. Range	Price
A	ZPT2-N01	-	-	-	-30°C to +250°C	€11.38
B	ZPT1-B4	8 mm	4 mm	2 mm to 8 mm	-30°C to +250°C	€5.70
B	ZPT1-B5	8 mm	5 mm	2 mm to 8 mm	-30°C to +250°C	€5.61
C	ZPT1-A6	8 mm	6 mm	2 mm to 8 mm	-30°C to +250°C	€5.55
C	ZPT1-A5	8 mm	5 mm	2 mm to 8 mm	-30°C to +250°C	€5.61
B	ZPT2-B5	16 mm	5 mm	10 mm to 16 mm	-30°C to +250°C	€10.98
C	ZPT2-A5	16 mm	5 mm	10 mm to 16 mm	-30°C to +250°C	€10.98
C	ZPT2-A6	16 mm	6 mm	10 mm to 16 mm	-30°C to +250°C	€10.98
B	ZPT2-B6	16 mm	6 mm	10 mm to 16 mm	-30°C to +250°C	€11.32
A	ZPT3-N01	32 mm	1/8"	-	-30°C to +250°C	€11.39
C	ZPT3-A6	32 mm	6 mm	-	-30°C to +250°C	€11.08
C	ZPT3-A8	32 mm	8 mm	-	-30°C to +250°C	€10.98
B	ZPT3-B5	32 mm	5 mm	-	-30°C to +250°C	€11.32
B	ZPT3-B8	32 mm	8 mm	-	-30°C to +250°C	€11.32
B	ZPT4-B8	50 mm	8 mm	40 mm to 50 mm	-30°C to +250°C	€10.98
C	ZPT4-A6	50 mm	6 mm	40 mm to 50 mm	-30°C to +250°C	€11.32
C	ZPT4-A8	50 mm	8 mm	40 mm to 50 mm	-30°C to +250°C	€10.98
B	ZPT4-B6	50 mm	6 mm	40 mm to 50 mm	-30°C to +250°C	€11.44
A	ZPT4-N01	50 mm	1/8"	40 mm to 50 mm	-30°C to +250°C	€11.44

VALUE LINE -

Vacuum Pad Adapters

VALUE LINE Fitting D=6, 1/4 NPT - 1/8 NPSF

A

VALUE LINE Fitting D=6, 1/8 NPT - M5

B

VALUE LINE Fitting D=6, G1/4 - G1/8

C

VALUE LINE Fitting D=6, G1/8 - M5

D

VALUE LINE Fitting D=10, G1/4 - G1/8

E

VALUE LINE Fitting D=10, 3/8 NPT - 1/4 NPSF

F

VALUE LINE Fitting D=10, 1/4 NPT - 1/8 NPSF

G

VALUE LINE Fitting D=10, G3/8 - G1/4

H

VALUE LINE Fitting D=12, 3/8 NPT - 1/4 NPSF

I

VALUE LINE Fitting D=12, 1/4NPT - 1/8NPSF

J

VALUE LINE Fitting D=12, G3/8 - G1/4

K

VALUE LINE Fitting D=12, G1/4 - G1/8

L

Style	Model	Maximum Pad Size	Min. Pad Size	Port Size	Thread Length	Thread Size	For Use With Pad Size	Flange Thickness	Max. Operating Temp.	Price	Pkg. Qty.
A	Fitting D=6, 1/4 NPT - 1/8 NPSF	30 mm	20 mm	6 mm	19/32"	1/4"	20 To 30mm Diameter	-	121°C	€207.50	5
B	Fitting D=6, 1/8 NPT - M5	30 mm	20 mm	6 mm	25/64"	1/4"	20 To 30mm Diameter	-	121°C	€112.17	5
C	Fitting D=6, G1/4 - G1/8	30 mm	20 mm	6 mm	9/16"	1/4"	20 To 30mm Diameter	1/8"	121°C	€207.57	5
D	Fitting D=6, G1/8 - M5	30 mm	20 mm	6 mm	7/16"	1/4"	20 To 30mm Diameter	1/8"	121°C	€207.50	5
E	Fitting D=10, G1/4 - G1/8	50 mm	40 mm	10 mm	19/32"	13/32"	40 To 50mm Diameter	11/64"	121°C	€140.03	5
F	Fitting D=10, 3/8 NPT - 1/4 NPSF	50 mm	40 mm	10 mm	0.594"	13/32"	40 To 50mm Diameter	-	121°C	€140.03	5
G	Fitting D=10, 1/4 NPT - 1/8 NPSF	50 mm	40 mm	10 mm	19/32"	13/32"	40 To 50mm Diameter	-	121°C	€258.97	5
H	Fitting D=10, G3/8 - G1/4	50 mm	40 mm	10 mm	19/32"	13/32"	-	11/64"	121°C	€140.03	5
I	Fitting D=12, 3/8 NPT - 1/4 NPSF	75 mm	60 mm	12 mm	0.594"	31/64"	60 To 75mm Diameter	-	121°C	€153.76	5
J	Fitting D=12, 1/4NPT - 1/8NPSF	75 mm	60 mm	12 mm	19/32"	-	60 To 75mm Diameter	-	121°C	€284.17	5
K	Fitting D=12, G3/8 - G1/4	75 mm	60 mm	12 mm	19/32"	31/64"	60 To 75mm Diameter	11/64"	121°C	€154.11	5
L	Fitting D=12, G1/4 - G1/8	75 mm	60 mm	12 mm	19/32"	31/64"	60 To 75mm Diameter	11/64"	121°C	€153.76	5
