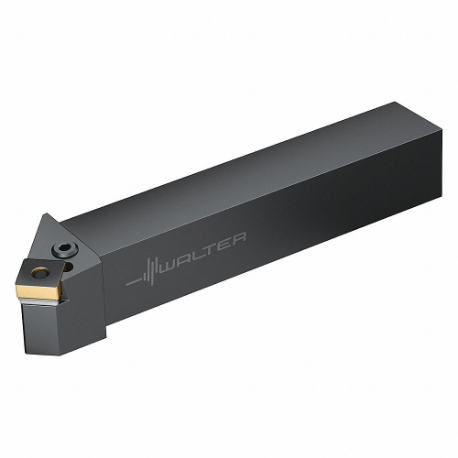

WALTER TOOLS PSSNL3232P19 5007964 Indexable Turning and Profiling Tool Holder, PSSN Toolholder, Square
Item: CU9KNWModel: PSSNL3232P19Cross Ref: 56PY62 / 5007964
7 In Stock
1.102"
SN .. 1906 ..
7.184"
1.575"
Ships within 2 days via
10.00% off
€285.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tool Holder |
| Approach Angle | 45° |
| Cutting Direction | Left Hand |
| Insert Clearance Angle | 0° |
| Insert Cutting Edge Length | 19 mm |
| Insert Holding Type | Lever Lock |
| Insert Shape | Square |
| Iso Number | PSSNL3232P19 |
| Overall Length | 182.48 mm |
| Shank Height | 32 mm |
| Shank Width | 32 mm |
| Toolholder Style | PSSN |
Shipping Info:
| Ship weight (kg) | 1.44 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 18.25 |
| Ship width (cm) | 2.54 |
| Country of Origin | SE |
Product Variants
| Product | Model | Cutting Direction | Insert Shape | Overall Length | Shank Width | Toolholder Style | Approach Angle | Insert Holding Type | Shank Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CRDCN3225P09-A | Neutral | Round | 170 mm | 25 mm | CRDC | 45° | Top Clamp | 32 mm | €475.31 | |
|
CRDCN3225P12-A | Neutral | Round | 170 mm | 25 mm | CRDC | 45° | Top Clamp | 32 mm | €475.31 | |
 |
CRDNN2525M12-ID | Neutral | Round | 150 mm | 25 mm | CRDN | 45° | Top Clamp | 25 mm | €372.44 | |
|
CRDNN3225P12-ID | Neutral | Round | 170 mm | 25 mm | CRDN | 45° | Top Clamp | 32 mm | €372.44 | |
 |
CRSNL3232P15-ID | Left Hand | Round | 170 mm | 32 mm | CRSN | 45° | Top Clamp | 32 mm | €460.05 | |
 |
CRSNL2525X12-P | Left Hand | Round | 130 mm | 25 mm | CRSN | 45° | Top Clamp | 25 mm | €573.15 | |
|
CRSNL2525M12-ID | Left Hand | Round | 150 mm | 25 mm | CRSN | 45° | Top Clamp | 25 mm | €372.44 |
