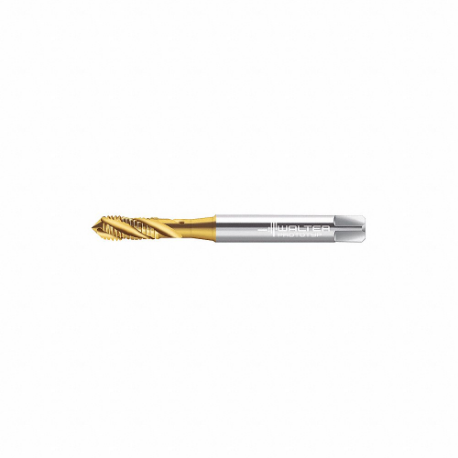

WALTER TOOLS M2151305-M4X0.5 6149859 Spiral Flute Tap, M4X0.5 Thread Size, 7 mm Thread Length, 63 mm Length, Tin
Item: CU9FHRModel: M2151305-M4X0.5Cross Ref: 428M86 / 6149859
7 In Stock
MF 4x0.5
3.661"
Ships within 2 days via
€74.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 3.65 mm |
| 65% Thread Drill Size | 9/64" |
| 75% Thread Drill Size | 3.5 mm |
| Clamping Width | 0.134" |
| Connection Dia. | 0.177" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 3.5 mm |
| Driving Square Length | 0.236" |
| Extended Neck | No |
| Finish | Titanium Nitride Coated |
| Functional Length | 2 12/25" |
| Helix Angle | 40° |
| No. Of Flutes | 3 |
| No. Of Grooves | 3 |
| Overall Length | 63 mm |
| Primary Material Application | Stainless Steel |
| Primary Material Application Iso Code | M |
| Secondary Material Application | Steel |
| Secondary Material Application Iso Code | P |
| Shank Dia. | 4.5 mm |
| Shank Length | 44 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 3.4 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | TiN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 371 |
| Tap Style | Spiral Flute |
| Tap Thread Size | M4 x 0.5 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 7 mm |
| Thread Limit | 6HX |
| Thread Limit/class Of Fit | 6HX |
| Thread Size | M4 x 0.5 |
| Thread Standard | Metric Fine |
| Usable Length | 0.827" |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.3 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Length | Thread Direction | Thread Limit | Overall Length | Tap Finish | 75% Thread Drill Size | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A2340876-UNF0 | #0-80 | 5.5 mm | Right Hand | H1 | 41.3 mm | TiCN | 1.2 mm | High Speed Steel | €129.31 | |
 |
A2340806-UNF0 | #0-80 | 5.5 mm | Right Hand | H1 | 41.3 mm | TiCN | 1.2 mm | High Speed Steel | €116.12 | |
 |
224101-UNJC10 | #10-24 | 13.5 mm | Right Hand | 3B | 70 mm | Bright | #25 | High Speed Steel | €154.44 | |
 |
224164-UNC10 | #10-24 | 16 mm | Right Hand | H2, H3 | 70 mm | Bright | #25 | High Speed Steel | €96.88 | |
 |
22416-UNC10 | #10-24 | 16 mm | Right Hand | H3, H4 | 70 mm | Bright | #25 | High Speed Steel | €80.15 | |
 |
224102-UNC10 | #10-24 | 16 mm | Right Hand | H3, H4 | 70 mm | Bright | #25 | High Speed Steel | €87.24 | |
 |
P22509-UNC10 | #10-24 | 8 mm | Right Hand | H2, H3 | 70 mm | - | #25 | High Speed Steel | €59.04 |
