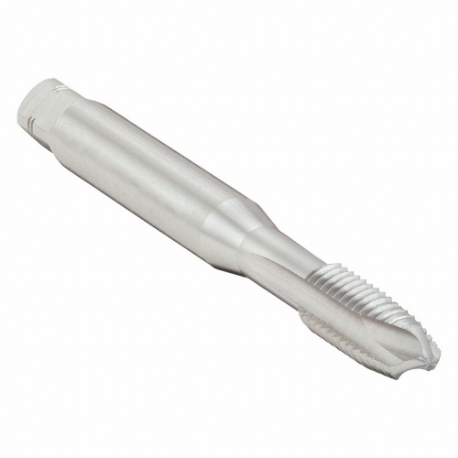

WALTER TOOLS P20360-M7 6149220 Spiral Point Tap, M7X1 Thread Size, 15 mm Thread Length, 80 mm Length
Item: CU9HURModel: P20360-M7Cross Ref: 428U83 / 6149220
7 In Stock
2.638"
Ships within 2 days via
€76.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | D |
| 65% Thread Drill Size | C |
| 75% Thread Drill Size | 6 mm |
| Clamping Width | 0.169" |
| Connection Dia. | 0.217" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 6 mm |
| Driving Square Length | 0.276" |
| Extended Neck | Yes |
| Finish | Bright |
| Fits Class | Class 6H |
| Functional Length | 3.15" |
| No. Of Flutes | 3 |
| No. Of Grooves | 3 |
| Overall Length | 80 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Aluminum, Brass, Bronze, Composite, Copper |
| Secondary Material Application Iso Code | N, O |
| Shank Dia. | 7 mm |
| Shank Length | 50 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 5.5 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Thread Size | M7 x 1 |
| Thread Direction | Right Hand |
| Thread Length | 15 mm |
| Thread Limit | D4, D5 |
| Thread Limit/class Of Fit | D4, 6H, D5, 6H |
| Thread Pitch | 1 mm |
| Thread Size | M7 x 1 |
| Thread Standard | Metric Coarse |
| Usable Length | 2.283" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Length | Thread Direction | Thread Limit | Overall Length | Tap Finish | 75% Thread Drill Size | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A2340876-UNF0 | #0-80 | 5.5 mm | Right Hand | H1 | 41.3 mm | TiCN | 1.2 mm | High Speed Steel | €129.31 | |
 |
A2340806-UNF0 | #0-80 | 5.5 mm | Right Hand | H1 | 41.3 mm | TiCN | 1.2 mm | High Speed Steel | €116.12 | |
 |
224101-UNJC10 | #10-24 | 13.5 mm | Right Hand | 3B | 70 mm | Bright | #25 | High Speed Steel | €154.44 | |
 |
224164-UNC10 | #10-24 | 16 mm | Right Hand | H2, H3 | 70 mm | Bright | #25 | High Speed Steel | €96.88 | |
 |
22416-UNC10 | #10-24 | 16 mm | Right Hand | H3, H4 | 70 mm | Bright | #25 | High Speed Steel | €80.15 | |
 |
224102-UNC10 | #10-24 | 16 mm | Right Hand | H3, H4 | 70 mm | Bright | #25 | High Speed Steel | €87.24 | |
 |
P22509-UNC10 | #10-24 | 8 mm | Right Hand | H2, H3 | 70 mm | - | #25 | High Speed Steel | €59.04 |
